When you're piecing together a CNC machine, the electronics are often the most stressful part. You need a driver board that can manage multiple axes, stepper motors that match your motion system, and a power supply that ties it all together. Getting these components to work as a matched set can mean hours of research. This CNC Kit With TB6600 4 Axis Standard Version Driver Board & HB Motor/PSU aims to simplify that step by packaging the core electronics in one bundle.
This guide focuses on the machine tool parts coolants supplies you'd consider for a DIY motion-control project, and specifically what this 4-axis kit does and doesn't offer based on the listed details.
Quick verdict
If you need a ready-to-connect set of driver board, motors, and power supply for a 4-axis CNC project, this kit brings together the essential pieces in one purchase. It is built around the TB6600 driver chip, which is a familiar choice among hobby CNC builders. The bundle includes the driver board, four Nema14 stepper motors, and a 12V 10A switching power supply. At a listed price of USD 215.27, it offers a complete electronics starting point rather than requiring you to source each part separately.
Who it suits

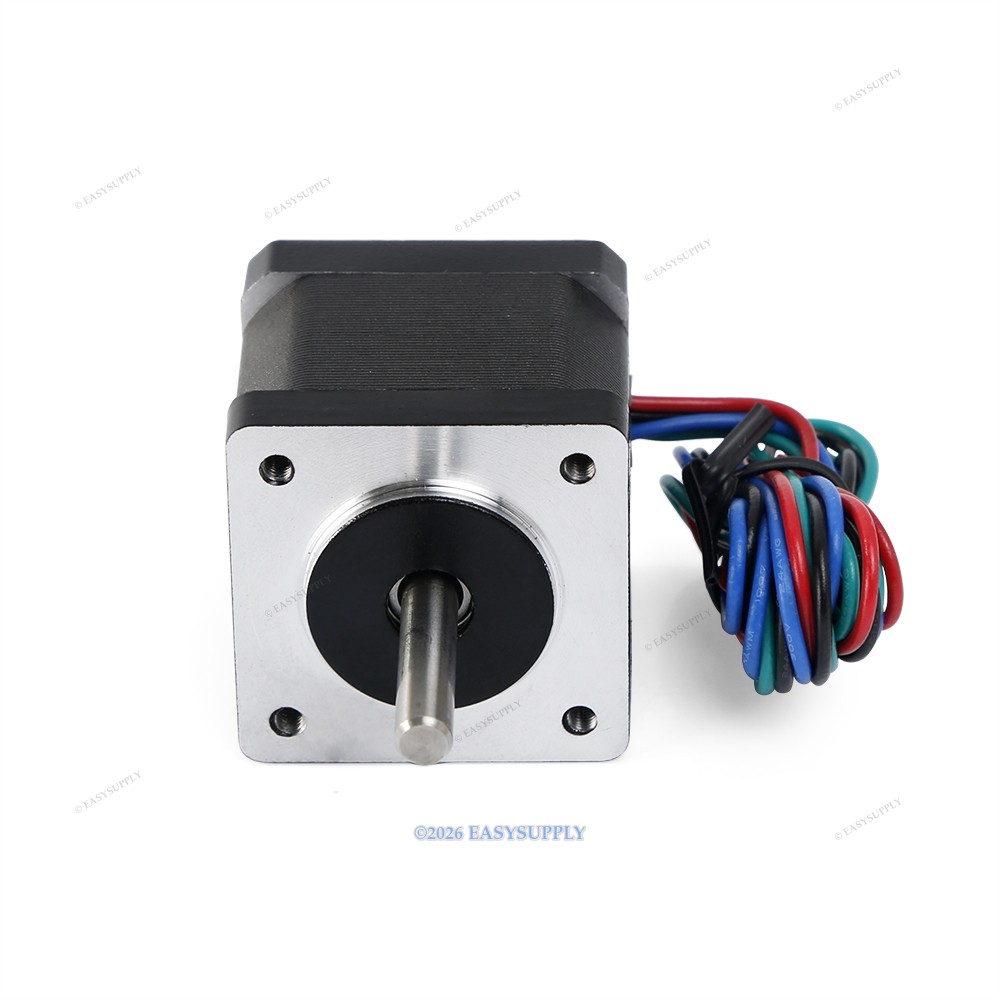

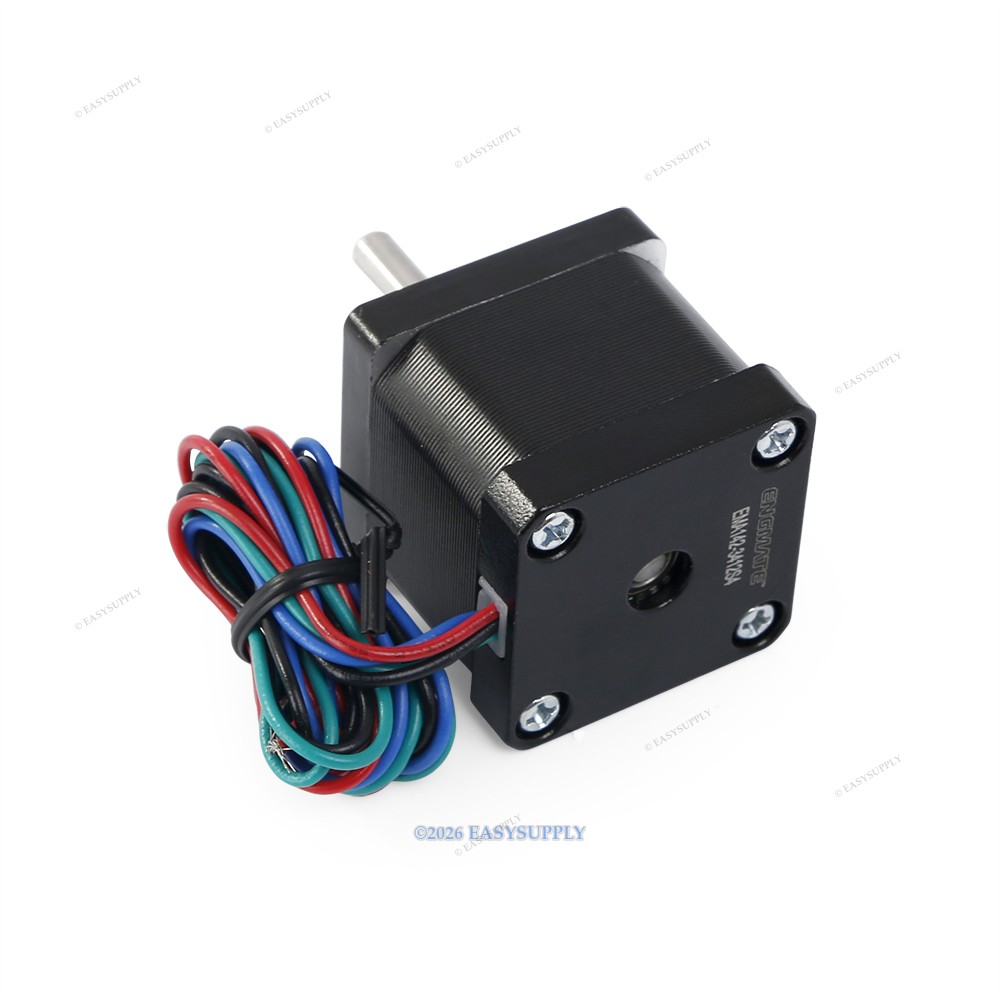

The kit is designed for DIY CNC assembly. The description mentions that it supports software like Mach3, LinuxCNC, and KCam4, so it fits builders who plan to use one of those control programs. It also lists compatibility with 2-phase and 4-phase stepper motors from Nema8 through Nema34 sizes, which gives some flexibility if you already own motors. However, the kit itself comes with Nema14 motors rated at 21 oz-in holding torque, so those are the motors you'll be using from this bundle.
What stands out from the listed details

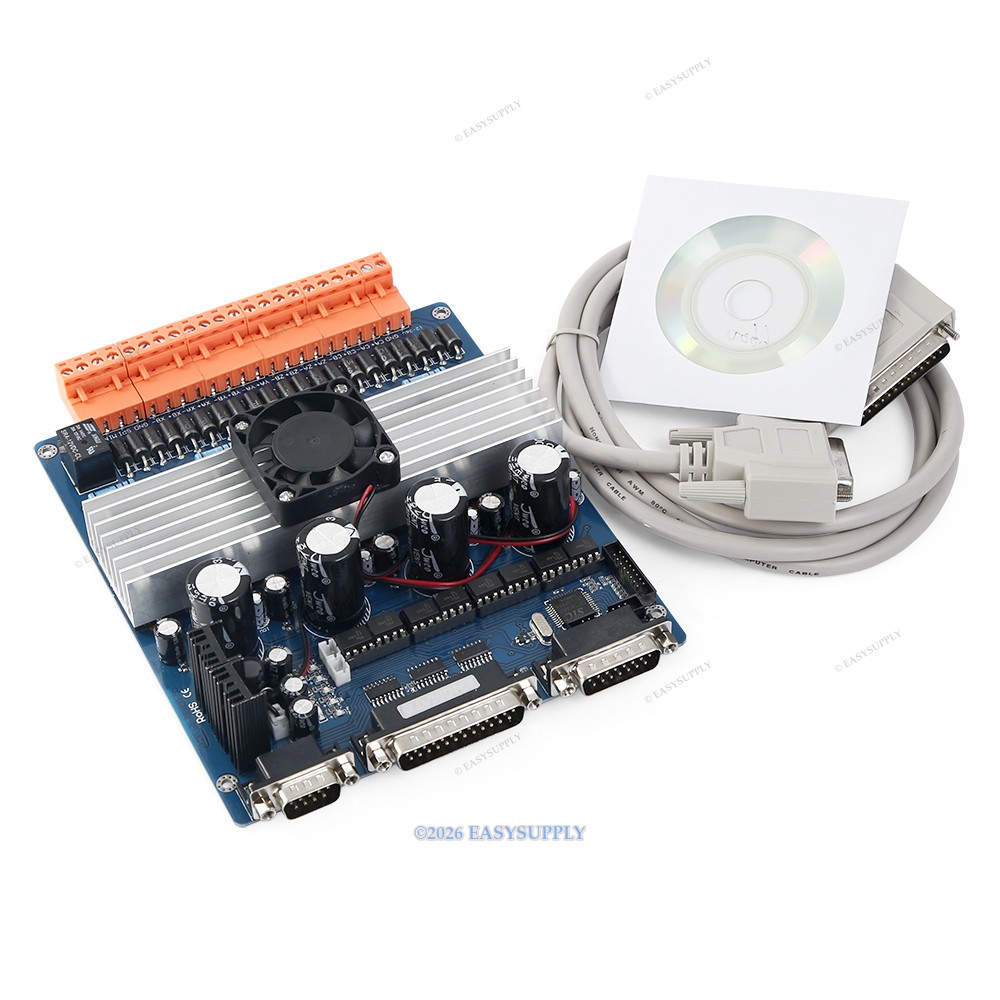

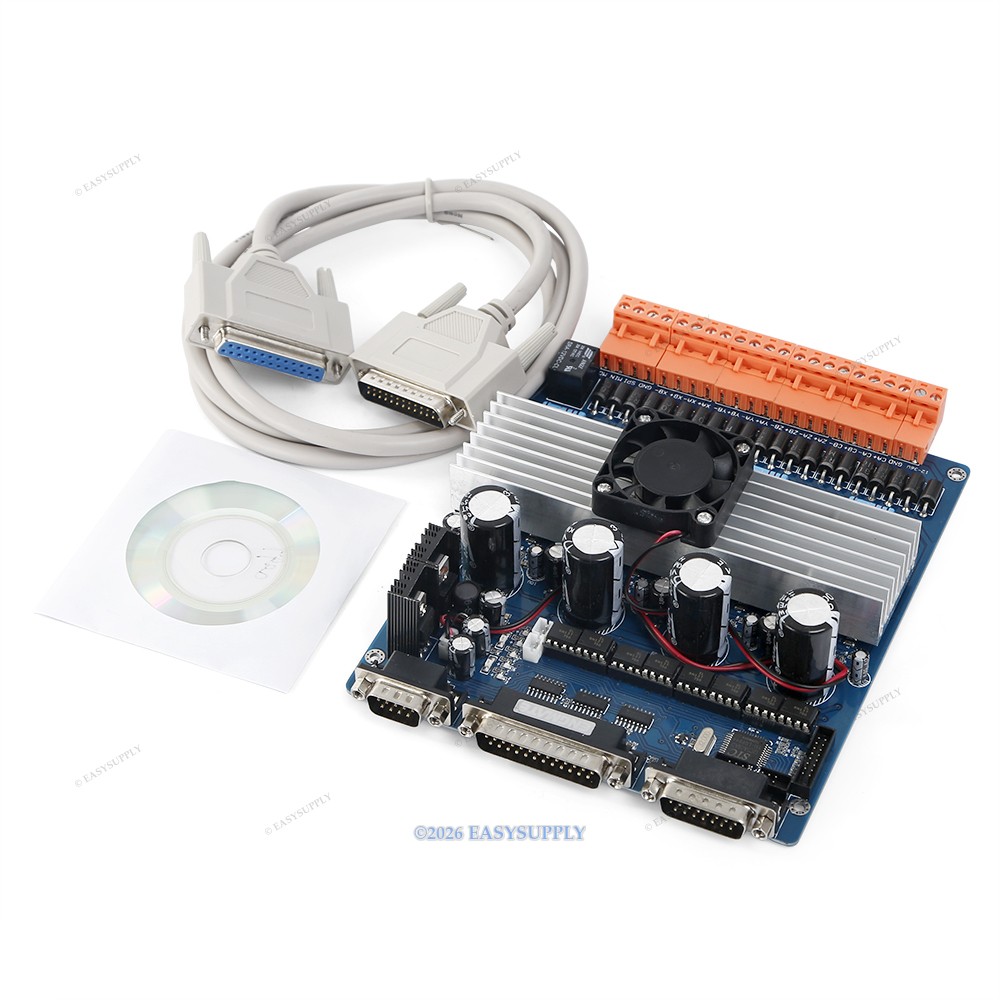

The most notable feature is the TB6600HG driver chip. Compared to older TB6560AHQ chips, the TB6600HG supports a maximum working voltage of 50V and output current up to 5A, according to the product description. That means the driver board has headroom for higher-current motors if you later upgrade. The kit is the Standard Version, and it includes one 4-axis driver board, four Nema14 stepper motors, and one 12V 10A power supply.
For a 4-axis machine, having a single board that drives all four axes is convenient because it reduces wiring and keeps the driver configuration in one place. The included power supply is sized at 12V 10A, which is appropriate for the listed Nema14 motors, though the driver board itself can handle more voltage if you supply it separately.

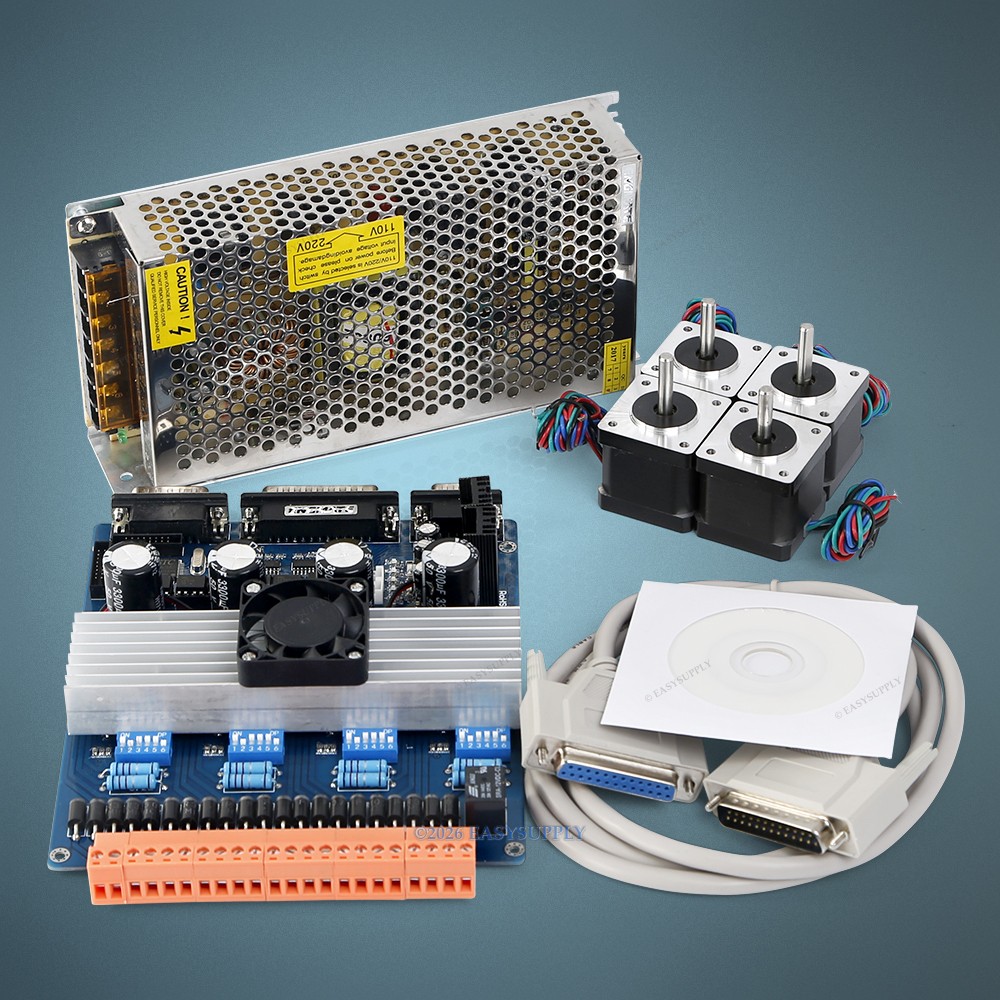

CNC Kit With TB6600 4 Axis Standard Version Driver Board & HB Motor/PSU
This is the full bundle offered at USD 215.27. The package includes the 4-axis TB6600 driver board, four EMA142-3412S4 Nema14 21 oz-in stepper motors, and a 12V 10A switching power supply. The board is compatible with common CNC control software, and the driver chip supports a wide range of Nema motor sizes. For a DIY builder who wants a matched electronics set, this is a straightforward way to get four axes of motion control without mixing and matching driver boards and motors.
One concrete reason to choose this kit is the convenience of having all electronics components in one order. The four motors are matched to the driver board, and the power supply is included. The main limitation is that the included Nema14 motors have a holding torque of only 21 oz-in, which is suitable for lighter, smaller CNC machines. If your build requires higher torque to move a heavy gantry or cutting head, you might need to purchase larger motors separately, even though the driver board can handle them.
Meaningful trade-offs
The biggest trade-off is motor size versus board capability. The TB6600 driver board is rated for up to 50V and 5A, which is more than the included Nema14 motors will draw. That headroom is useful, but it also means you're paying for driver capability that this motor set won't fully use. The included 12V 10A power supply is lower voltage than the driver board's maximum, so the system runs at a conservative voltage. That's not a problem for the motors provided, but you won't be pushing the board to its limits out of the box.
Another trade-off is that the kit is a 4-axis setup. If you only need a 3-axis CNC router, you'll have an extra axis available, which can be nice for future expansion. If you need more than four axes, you'd need a different controller.
Bottom line
This CNC Kit With TB6600 4 Axis Standard Version Driver Board & HB Motor/PSU is a practical starting point for a DIY 4-axis CNC project that calls for modest stepper motors. It bundles the essential electronics into one package at a single listed price of USD 215.27. If your machine design fits the torque and voltage range of Nema14 motors and a 12V supply, this kit saves you the guesswork of assembling parts from different sources. If you already know your build needs more torque or a higher-voltage driver setup, you'll likely want to spec components individually.
