Choosing the next piece of equipment for a CNC machining center or router is not about picking the "best" option. It is about matching the tool to the job at hand. The four products here span a wide price range-from USD 102.60 to USD 15,500.00-so the practical question is whether you need a probing accessory, a spindle upgrade package, a boring head, or a complete vertical machining center. That spread is the point: the right choice depends on what your shop is missing.
Quick Take
If your immediate need is edge finding and three-coordinate setup, the 3D trigger edge finder is the direct way to get there. If you want a spindle upgrade package for a Genmitsu-style router, the ProVerXL Series kit is the option built around that format. If you are boring large holes in a vertical machining center, the VMD4550 head is the focused tool. And if you need a complete used vertical machining center, the Fadal VMC 3016 is the full-machine answer.
Listed-Price Comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| USA 3D Trigger Edge Finder to Find CNC Machining Center Three-Coordinate CF-38 | USD 102.60 | |
| VMD 45-50MM Big Bore Drilling Head VMD4550 for Vertical Machining Center | USD 120.00 | |
| Genmitsu ProVerXL Series Spindle Upgrade with VFD, 1.5KW | USD 325.00 | |
| Fadal 16" x 30" CNC Vertical Machining Center with Fanuc Series 18i MB5 Control | USD 15,500.00 |
Decision Matrix
| Product | Best For | Watch Out For |
|---|---|---|
| CF-38 Edge Finder | Quick edge finding and three-coordinate setup | Battery is not included |
| VMD4550 Drill Head | Large-diameter boring in a machining center | Separate drill bit and inserts needed |
| Genmitsu ProVerXL Spindle Kit | Adding a VFD-driven spindle to a Genmitsu-style router | The original buyer's 4040 Pro Max setup was not a match |
| Fadal VMC 3016 | A complete vertical machining center with Fanuc 18i MB5 control | Listed as used, 240V/3ph power |
Product Notes
#### USA 3D Trigger Edge Finder CF-38
If you want a direct way to find edges and set a three-coordinate position, this trigger edge finder is the least expensive item in the group. It has a repeat positioning accuracy of ≥0.005, a trigger life of up to 3 million times, and probe directions in ±X, ±Y, and +Z. The package includes the CF-38 probe and one tip, but not the CR1632 3V button battery, so you will need to supply that before use. For a small probe accessory that can also measure insulating materials, this is a practical starting point for edge finding on a CNC machine.
#### VMD 45-50MM Big Bore Drilling Head VMD4550
This head is built for a specific job: drilling holes with an adjustable 45mm to 50mm diameter on a vertical machining center. The body is hardened to HRC 52, and the top includes a cooling water hole so coolant can reach the cutter while machining. What you don't get in this package are the center positioning drill bit and the four carbide inserts, so plan for those separately. It is also the smallest model in the big-bore range, with larger versions available up to 200mm. If your work is centered on 45-50mm bores, this is the most focused accessory here.

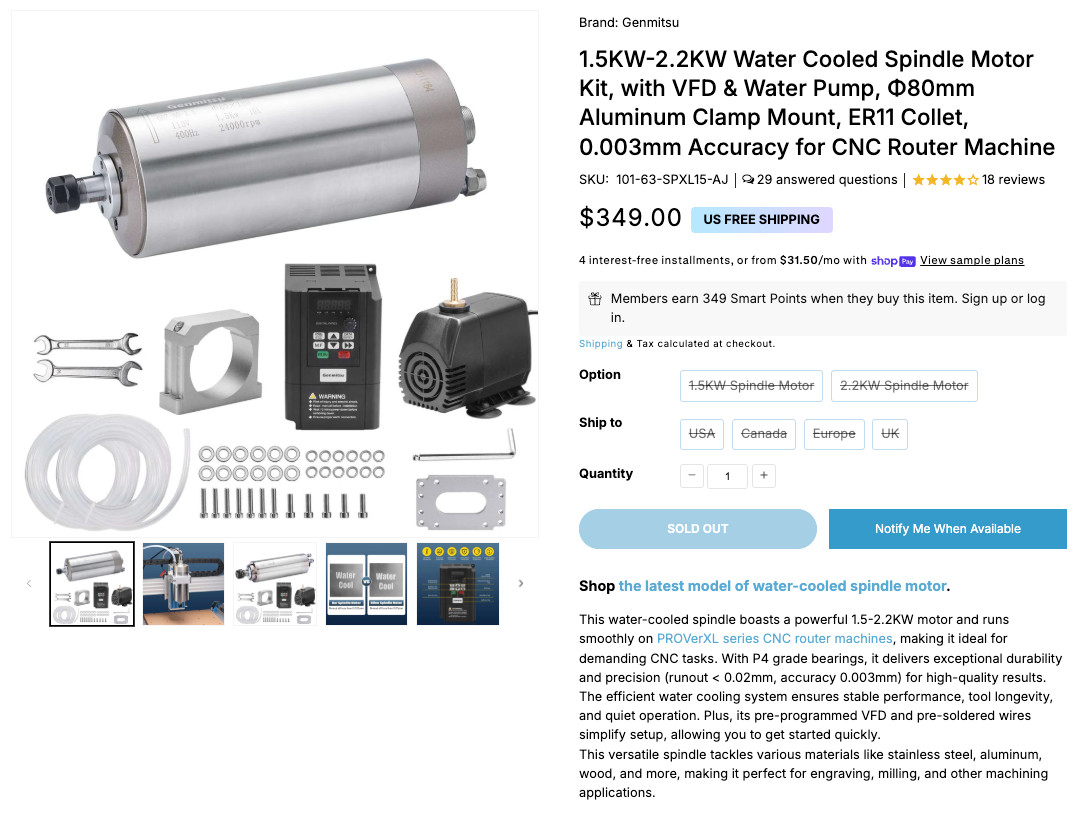

#### Genmitsu ProVerXL Series Spindle Upgrade with VFD, 1.5KW

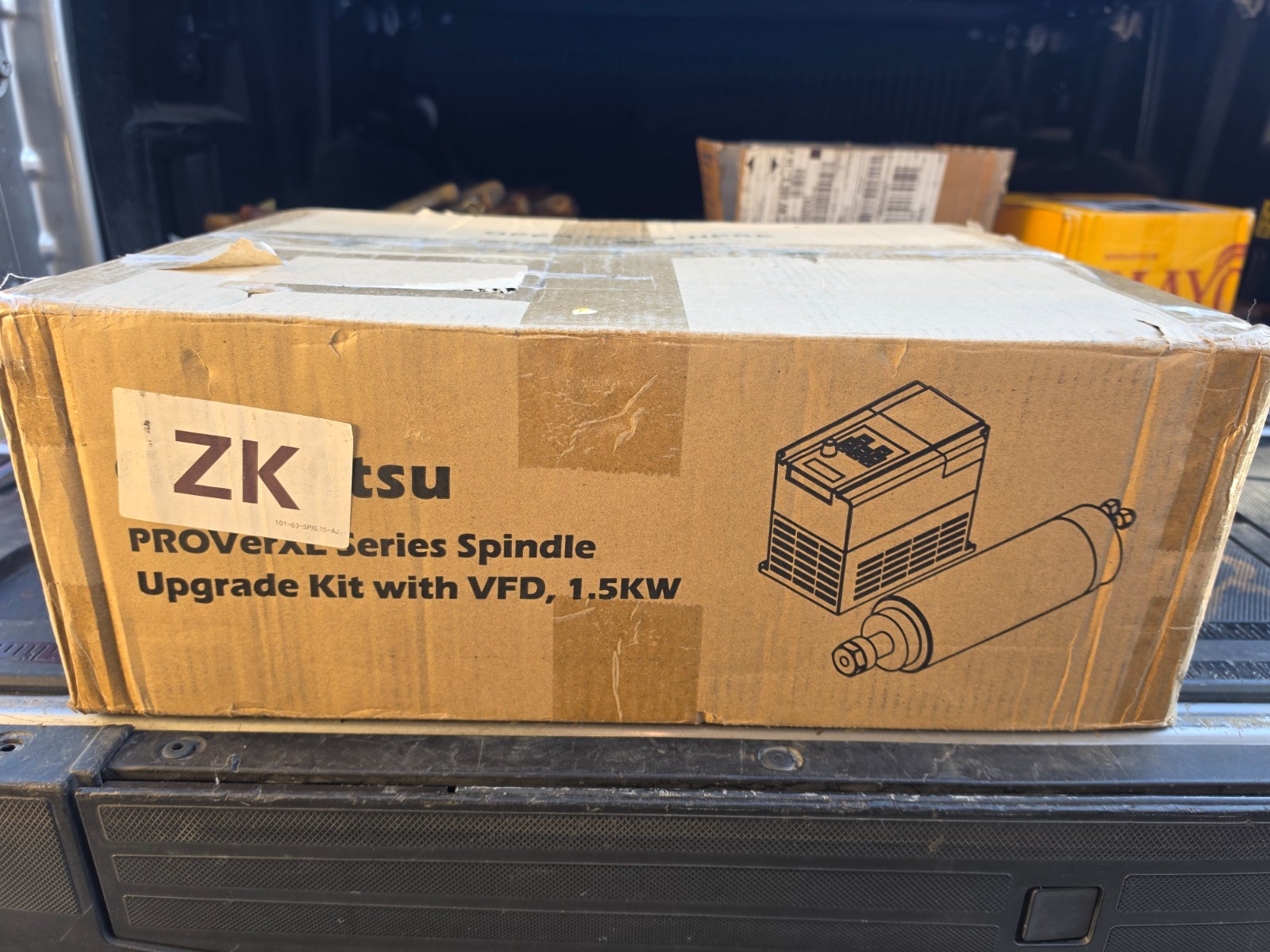

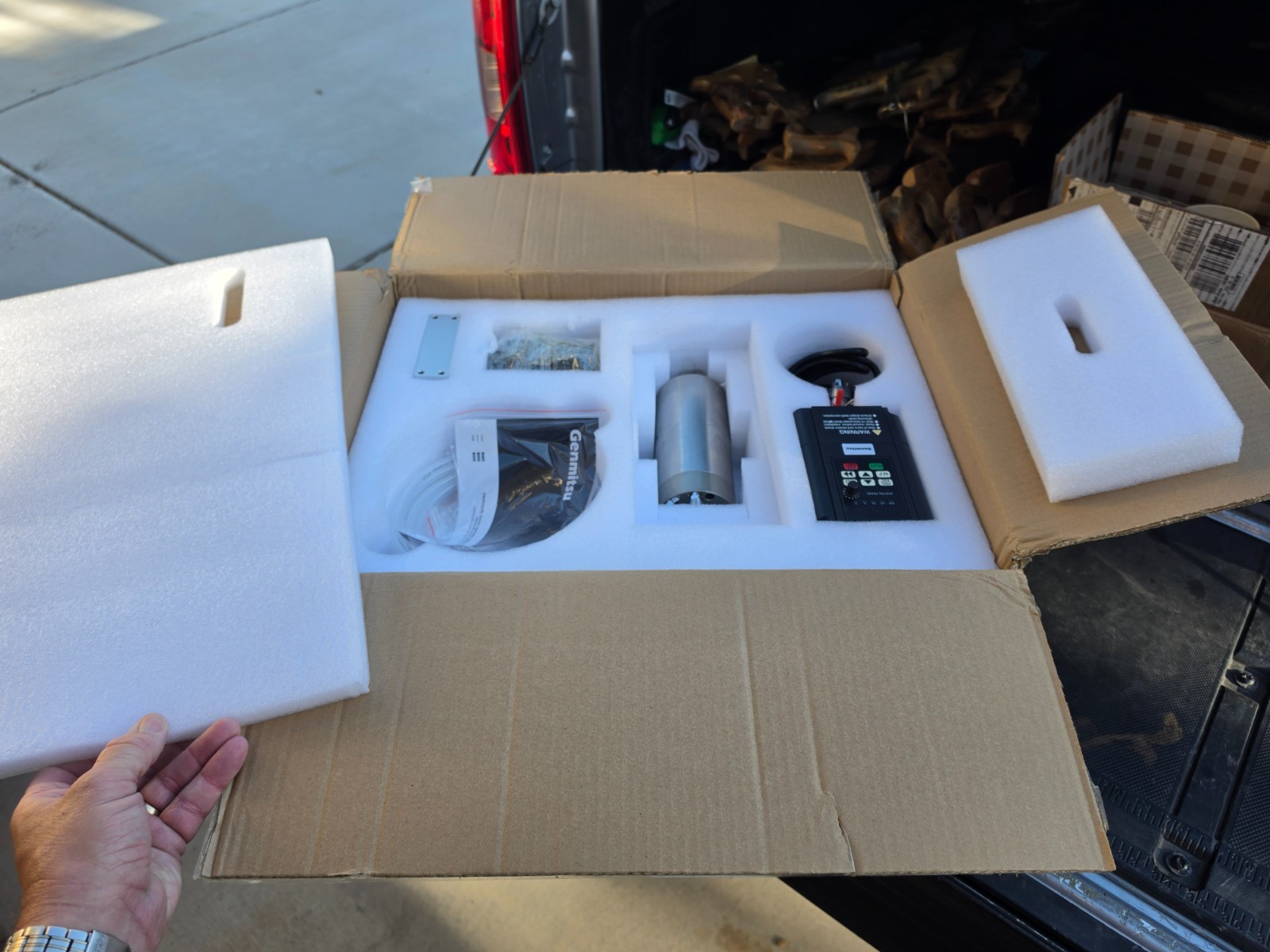

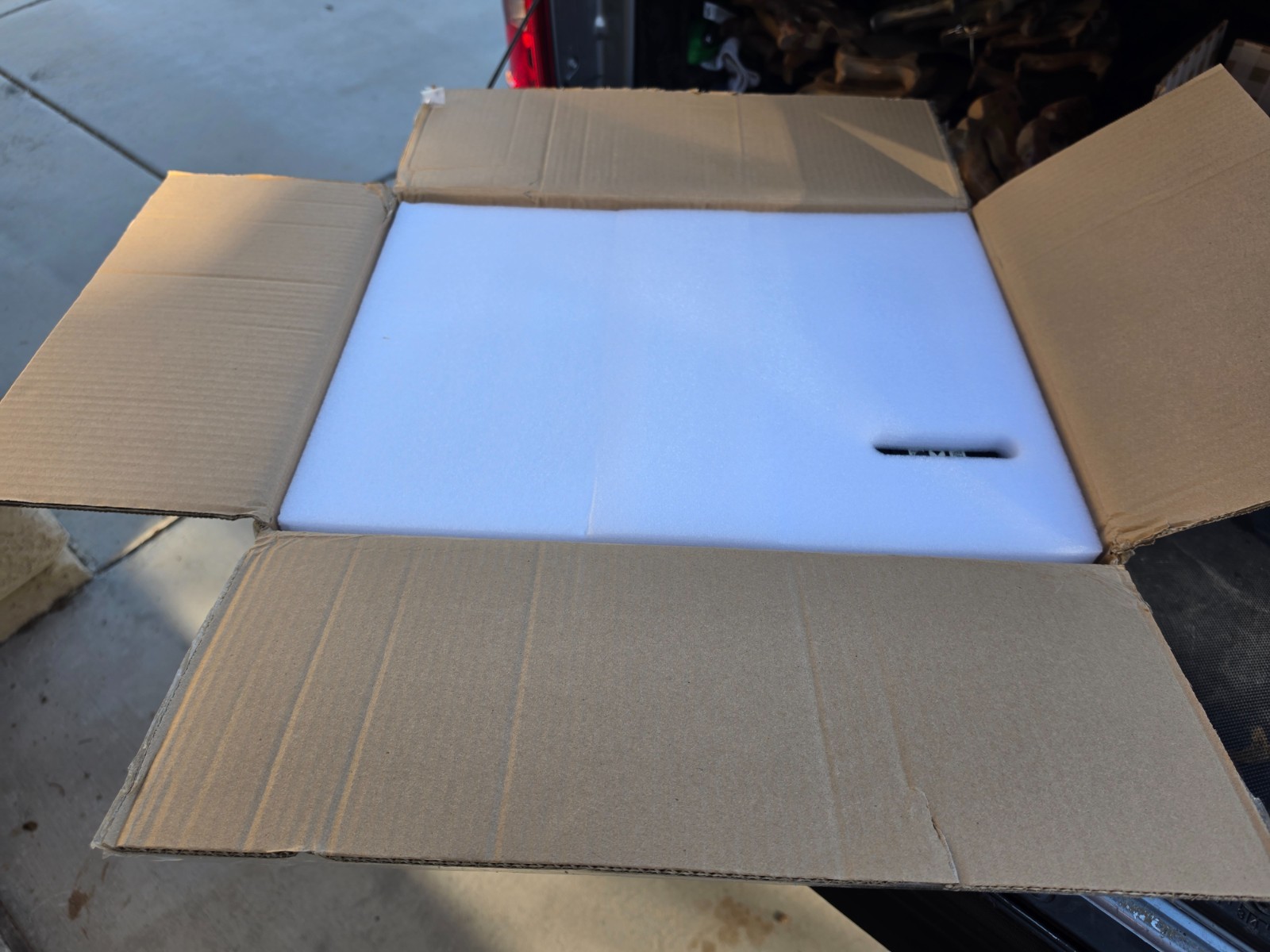

This kit combines a VFD and a 1.5kW spindle into a single package, and it was factory-sealed when photographed. The reason it is being resold is that it did not work with the Genmitsu 4040 Pro Max setup the original buyer had purchased, so it is not an assumed fit for every Genmitsu machine. If you are building a ProVerXL Series setup around this 1.5kW VFD format, it gives you the spindle and drive together instead of sourcing them separately. That makes it a useful upgrade path for a CNC router, as long as you confirm the fit before committing.
#### Fadal 16" x 30" CNC Vertical Machining Center with Fanuc Series 18i MB5 Control
This is the only full machine in the group. The Fadal VMC 3016 gives you 30" of X-axis travel, 16" of Y-axis travel, and 20" of Z-axis travel, plus a 39" x 16" table with roughly 2,700 lbs of load capacity. It has a CAT 40 spindle that reaches 7,500 rpm, a 21-tool magazine, and a Fanuc Series 18i MB5 control. It is listed as used and runs on 240V/3ph power, so it belongs in a shop with the space and electrical setup for a larger machine. If you need a complete vertical machining center rather than an add-on, this is the one that fills that role.
Final Recommendation by Use Case
- Edge finding and setup: Start with the CF-38 trigger edge finder for three-coordinate probing.
- Spindle upgrade: The Genmitsu ProVerXL Series kit is the way to go for a 1.5kW spindle package in a router setup.
- Large-diameter boring: The VMD4550 big-bore drilling head is the purpose-built choice for 45-50mm holes.
- Complete machining center: The Fadal VMC 3016 is the answer when you need a full vertical machining center.
