Buying cnc machining centers routers is less about choosing the longest feature list than matching axis reach, work envelope, control, and handling demands to your shop. The Kitamura Mytrunnion-1 is aimed at buyers seeking a vertical 5-axis machining center, but its used condition, listed hours, physical size, and excluded pictured components deserve equal attention.
Quick verdict
At USD 12,900.00, the Kitamura Mytrunnion-1 brings a Fanuc 300i-MA control, five-axis function, and a spindle range up to 15,000 RPM into one machine. Its clearest appeal is the combination of rotary-axis movement and a BT-30 spindle taper. The main trade-offs are its 2007 model year, approximately 12,500 hours, 16,000-pound weight, and the fact that several pictured components are not included.

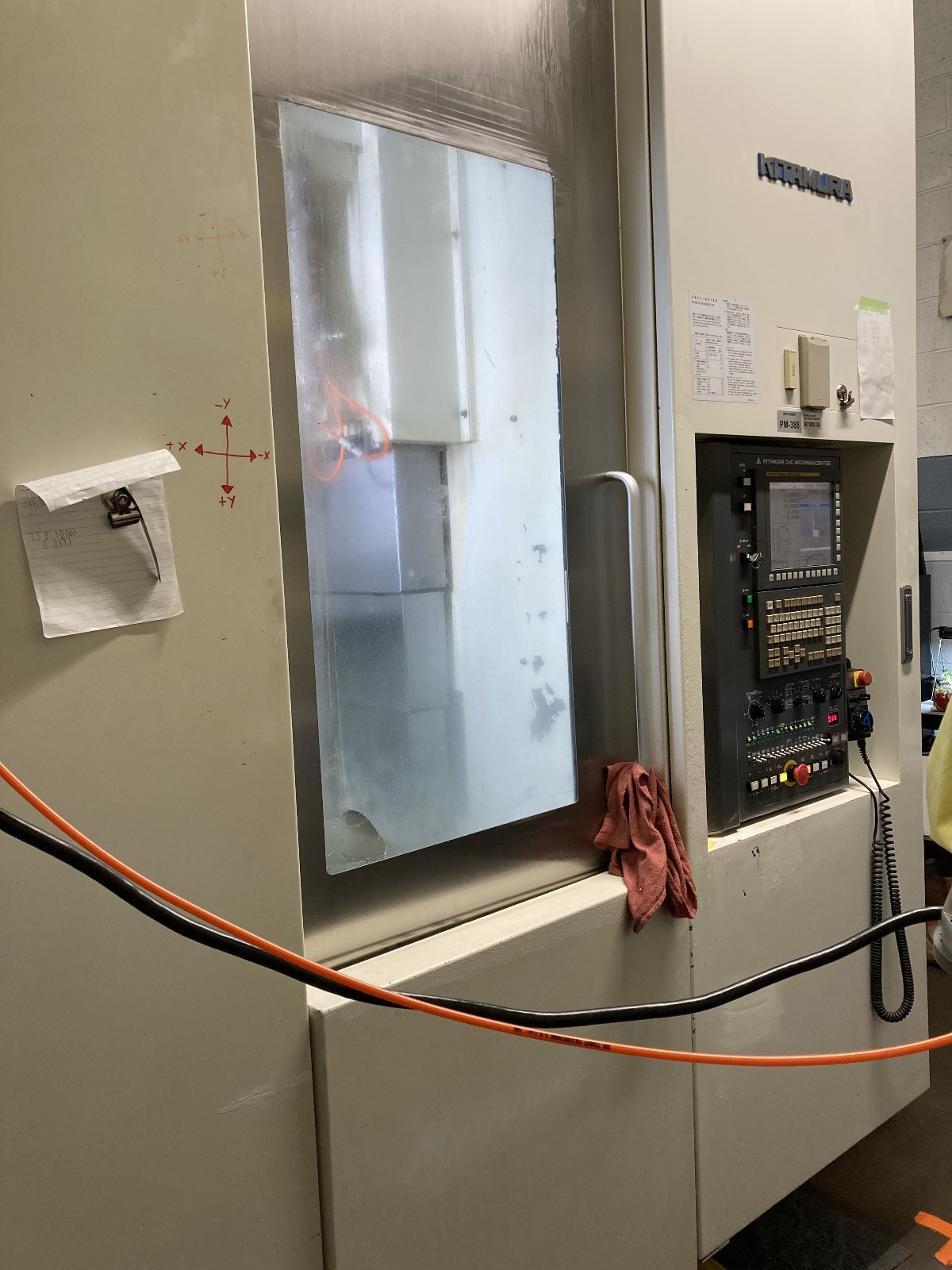

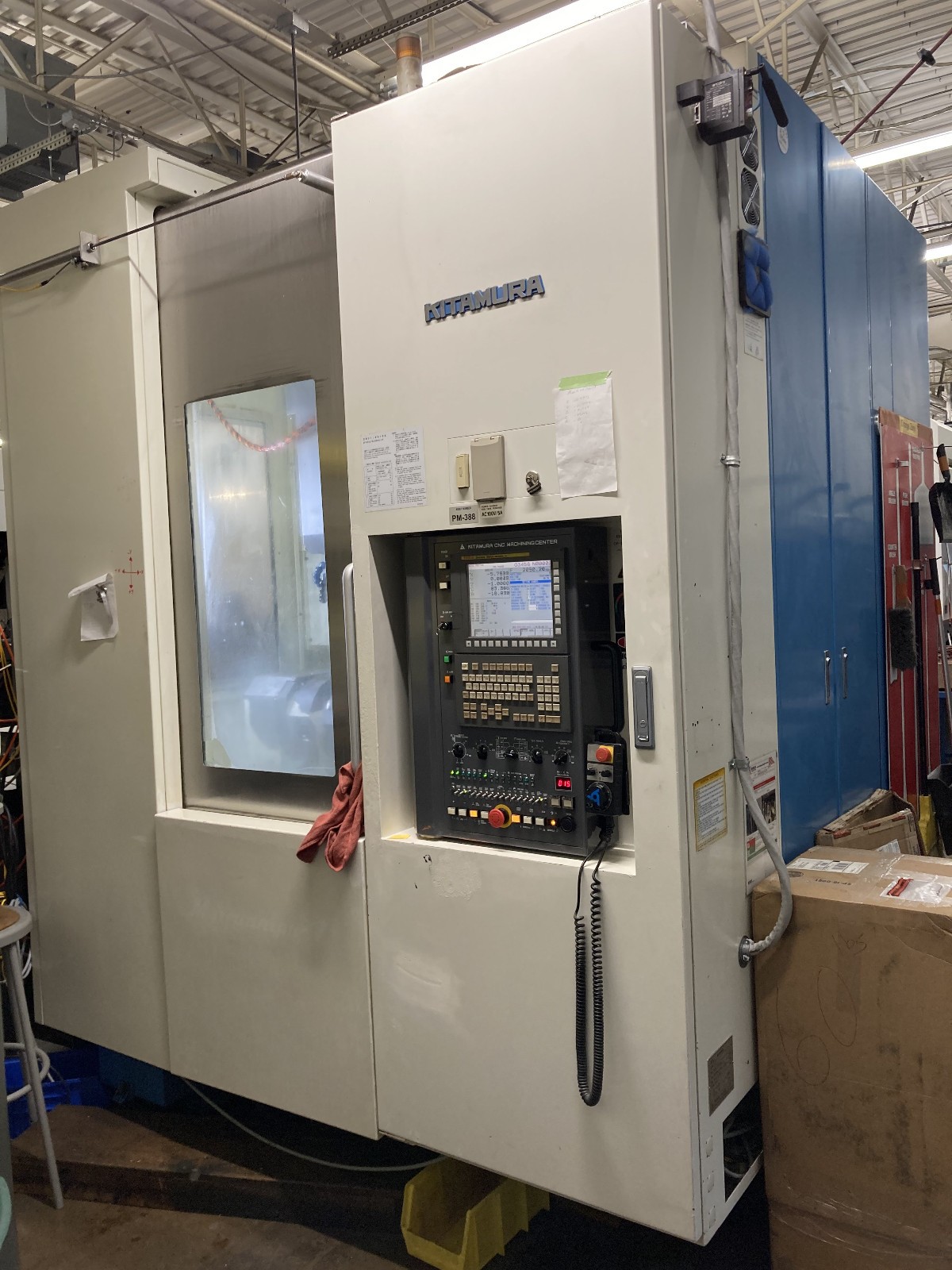

Kitamura Mytrunnion-1 Vertical 5-Axis CNC Machining Center
Choose this machine if your work calls for the listed A-axis range of -110 to +30 degrees and a 360-degree C-axis, both with 0.001-degree increments. The Fanuc control and 10 hp spindle also give the machine a clearly defined control and power specification. The limitation is that it is a used 2007 machine with approximately 12,500 hours, and the sale does not include the 5th Axis RL96E-67 Pallet, red adapter plate, orange air lines, or cylinder shown in the pictures and video.
Who it suits
This Kitamura makes the most sense for a shop prioritizing multi-axis access over a compact machine footprint. Its listed travels are 12.8 inches on X, 20.1 inches on Y, and 18.1 inches on Z, while the table is 4.72 inches in diameter with a maximum table load of 44 pounds. The stated maximum workpiece size is 13.8 inches in diameter and 8.3 inches in height.

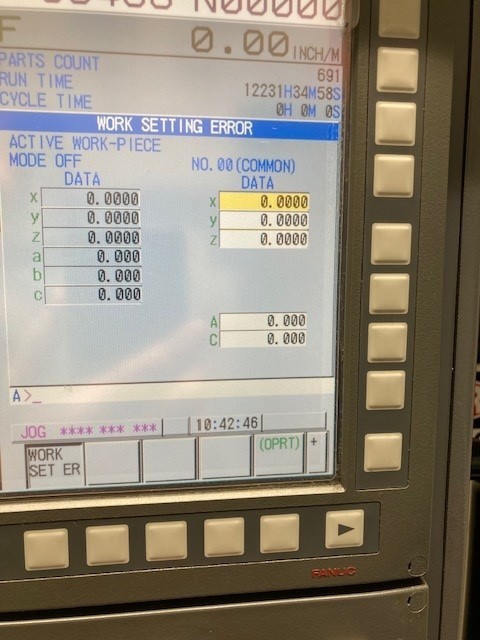

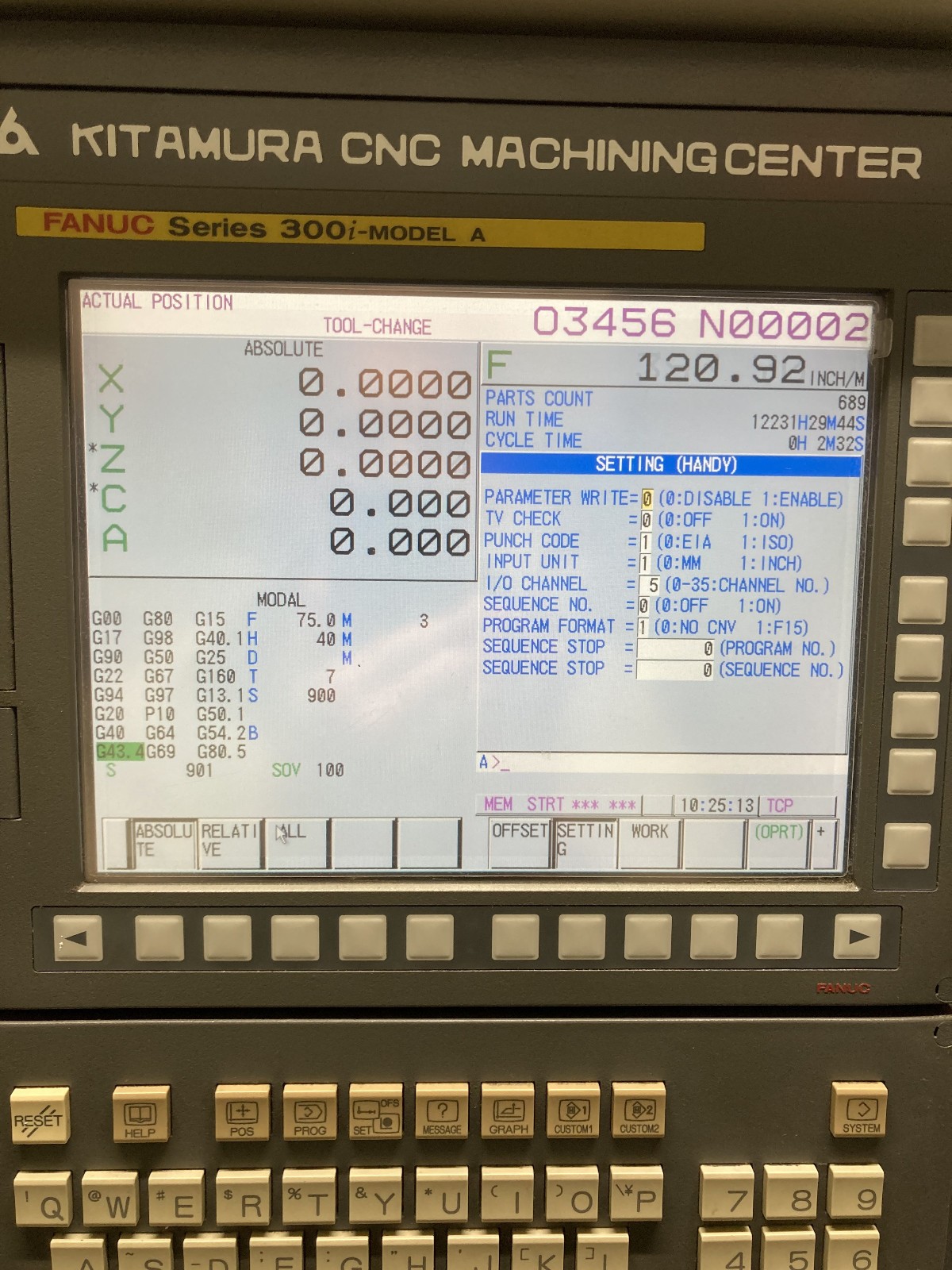

It is also a defined fit for a buyer who wants Fanuc 300i-MA control rather than an unspecified control platform. Data Server, Work Setting Error Compensation, and Tool Center Point Control are named as options, so they should be treated as part of the machine's stated configuration details rather than assumed standard equipment.
What stands out from the listed details
The spindle runs from 150 to 15,000 RPM and uses a BT-30 spindle taper. Combined with the A- and C-axis specifications, that gives the machine a concrete five-axis profile instead of a general-purpose description. The machine is under power and available for inspection, which is relevant when evaluating a used piece of equipment.
Meaningful trade-offs
The dimensions are 90 inches wide by 124 inches long by 90 inches high, and the machine weighs 16,000 pounds. Those figures make floor space and handling central to the purchase decision. The buyer is responsible for prepping and rigging, adding another practical consideration beyond the listed purchase price.
The excluded pallet, adapter plate, air lines, and cylinder also matter if the pictured setup matches the intended workflow. They are specifically outside the sale price, so the machine should be judged on the listed configuration rather than every component visible in the images or video.
Bottom line
The Kitamura Mytrunnion-1 is a focused choice for a shop seeking a used vertical 5-axis CNC machining center with Fanuc control, a 15,000-RPM spindle, and defined rotary-axis specifications. The decision is strongest when its 2007 status, approximately 12,500 hours, 16,000-pound weight, rigging responsibility, and excluded components fit the buyer's operating plan.
