When you are setting up semiconductor PCB manufacturing, the first big decision is how much automation you need for pick and place. Do you invest in a production machine that can handle a lineup of boards, or start with a benchtop kit that gives you direct control at a much lower cost? Here is a head-to-head look at two very different listings: the Hanwha Samsung SM421 and the PickSoEasy PSE-20.
Quick Verdict
One listing is a production-scale pick and place machine; the other is a benchtop SMT kit. Your choice depends on whether you need a production line or a low-volume setup. For a facility that expects steady board volume, the SM421 is the machine to evaluate. For a small workshop, R&D lab, or first venture into SMT assembly, the PSE-20 is the easier entry point.
Comparison Snapshot
The table below compares the two listings on listed price, condition, and key specifications.
| Product | Listed Price | Condition | Key Spec | Price Bar |
|---|---|---|---|---|
| Hanwha Samsung SM421 | USD 19,000.00 | Used | 4 Spindle Heads, On-the-Fly Vision | |
| PickSoEasy PSE-20 | USD 694.00 | New | Single Head, Manual, 9" Monitor, 2 AV Microscopes |
The listed prices are far apart, so the decision is not just about cost but about what each machine brings to a PCB assembly line. The SM421 is a complete machine that has been in service; the PSE-20 is a kit that you put together and calibrate yourself.
Where Each Machine Wins
The Hanwha Samsung SM421 wins for production environments where a repeatable, high-volume placement process is the priority. The PickSoEasy PSE-20 wins for jobs where seeing each placement and controlling the process matter more than speed. If you plan to run multiple boards in a row, the SM421 aligns with a line setup. If you are placing a handful of components at a time, the PSE-20 lets you work board by board.
Product Notes
Hanwha Samsung SM421 Pick and Place Machine
Choose this Hanwha Samsung SM421 when you need a production-oriented pick and place machine. The four spindle heads, on-the-fly vision, and fixed feeder bank are matched to a left-to-right process flow, and it handles boards from 2" x 2" up to 18" x 16". Listed as used but fully functional, it offers the architecture of an automated SMT line rather than a benchtop tool. The trade-off is that it is a used machine, so you are purchasing a previously operated unit rather than a brand-new one. It is a serious investment, but the listed capabilities match a production floor.

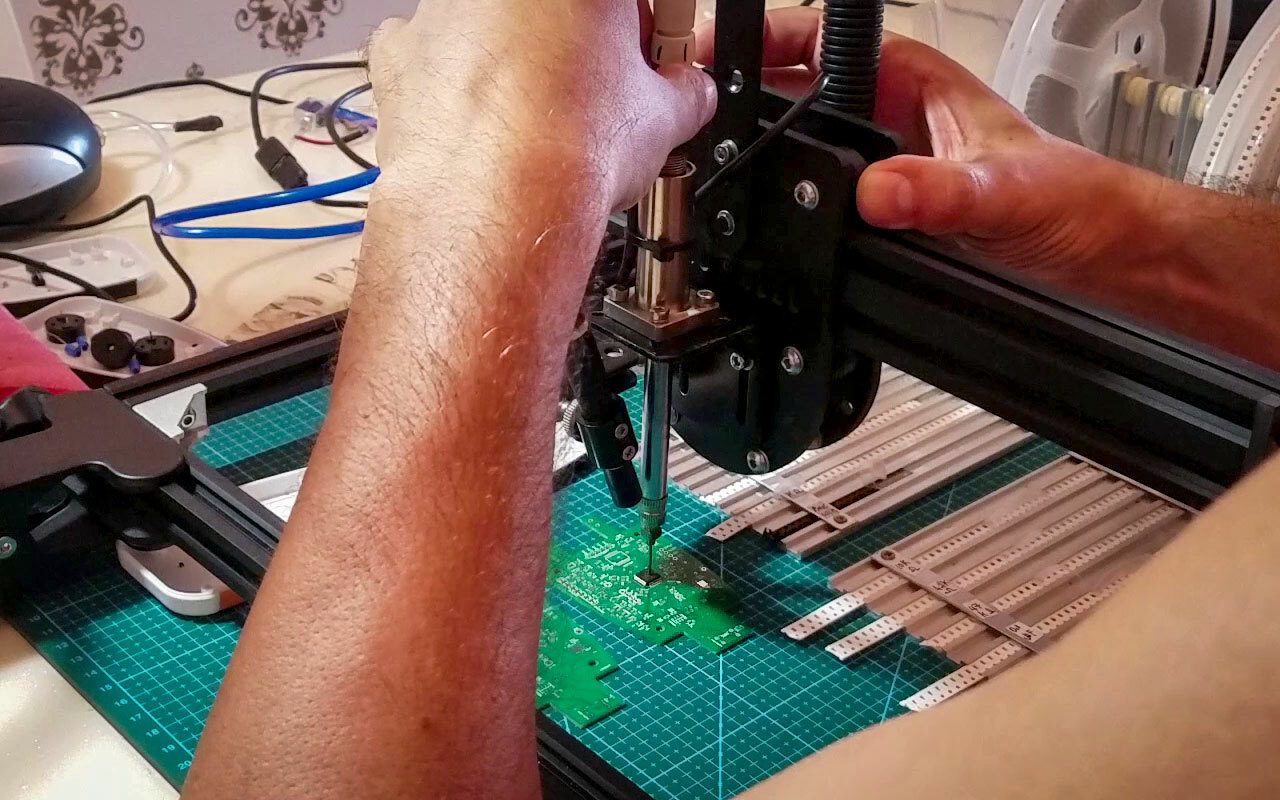

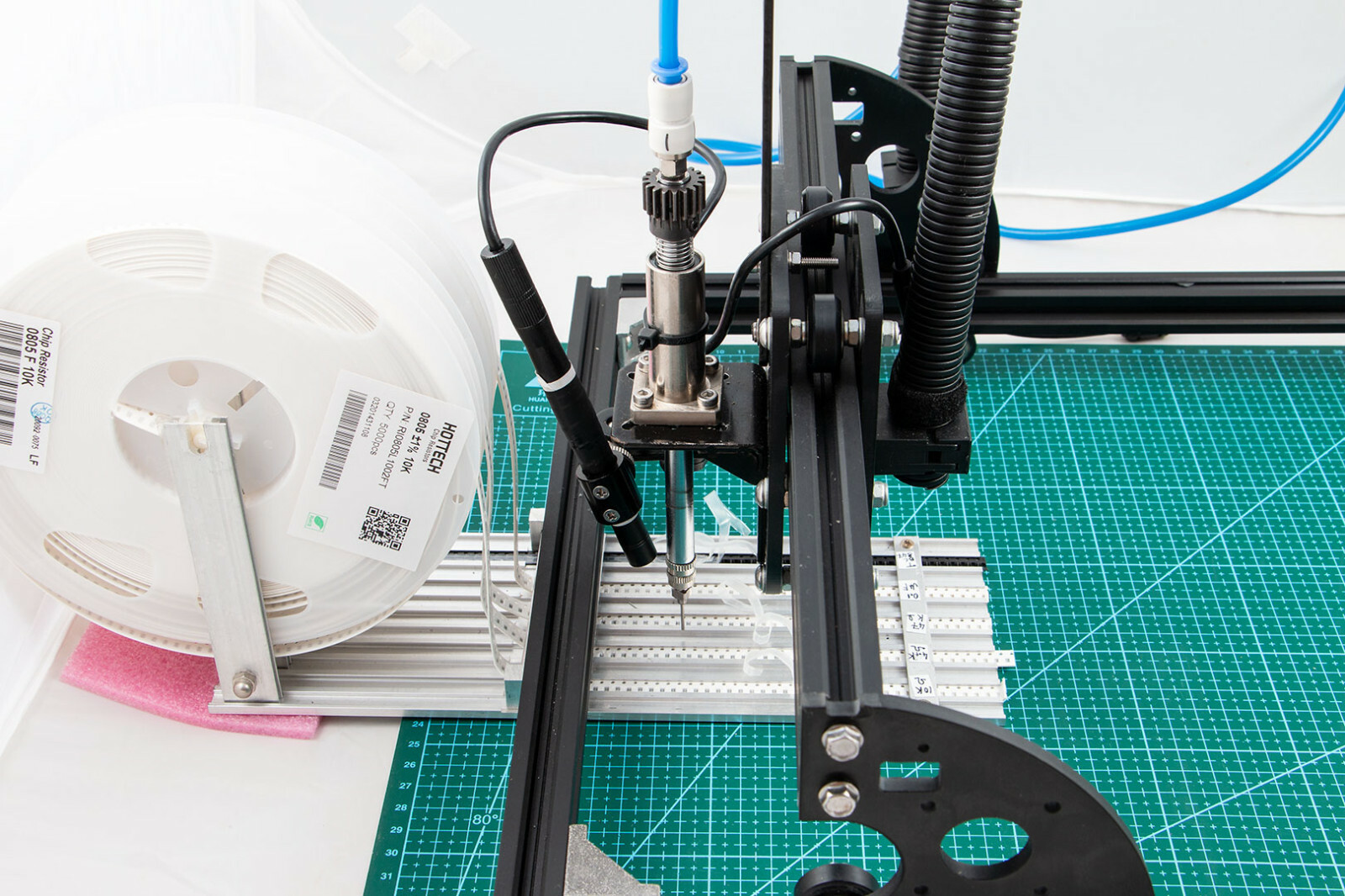

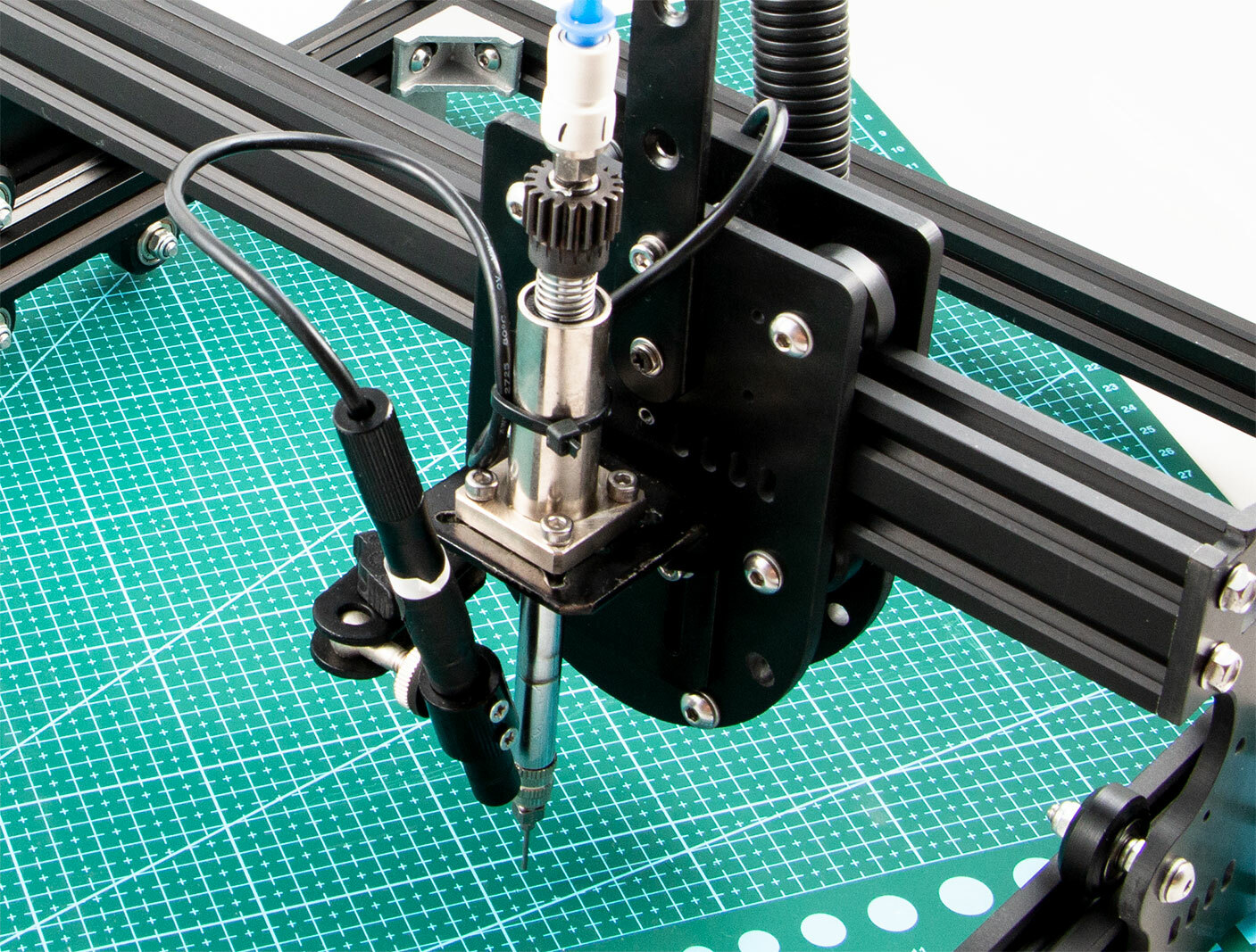

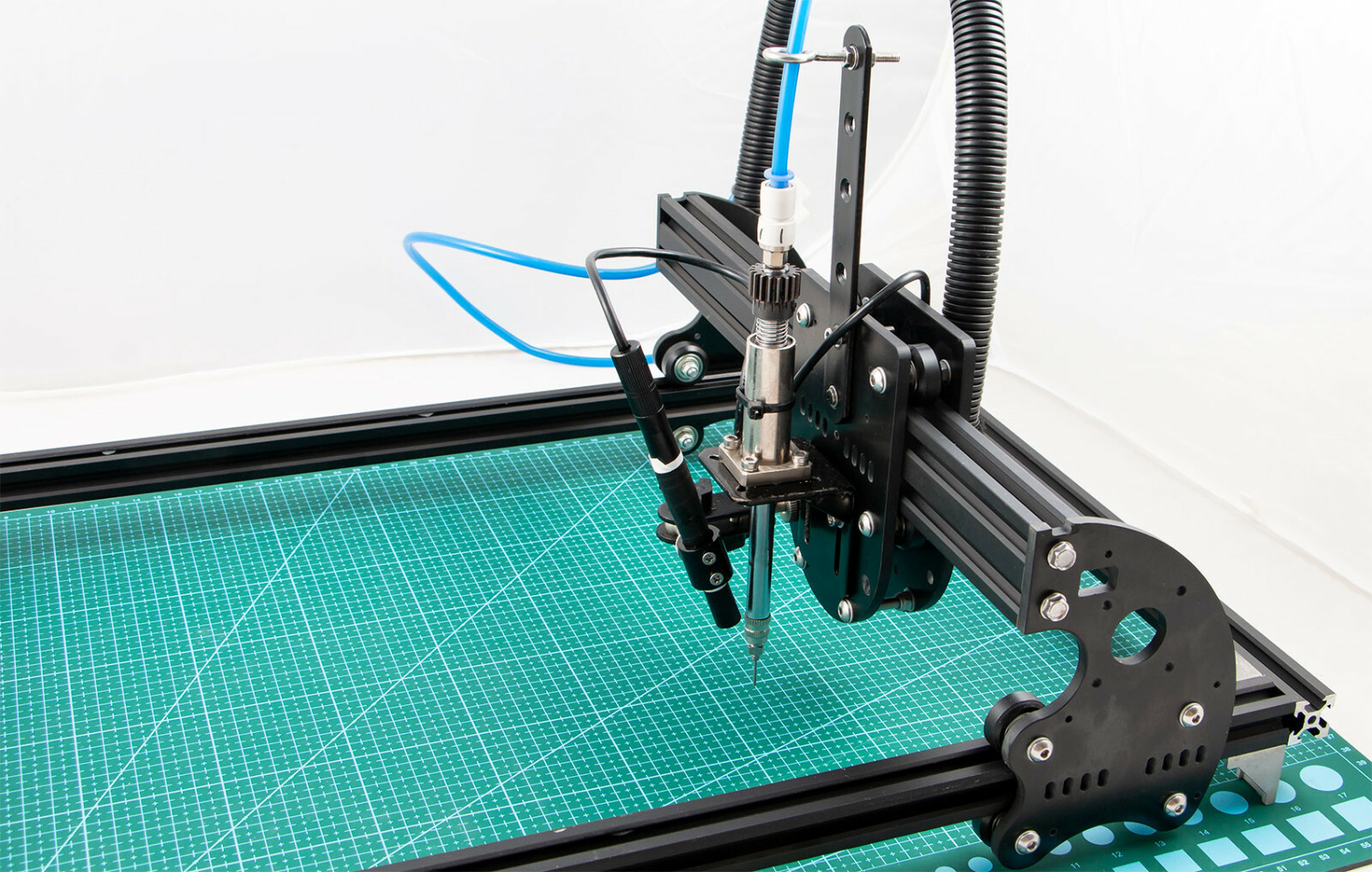

PickSoEasy PSE-20
Choose the PickSoEasy PSE-20 for a new, hand-operated SMT placement kit. The listed price of USD 694.00 includes two AV microscopes, a 9-inch monitor with 2 AV inputs and split capabilities, a vacuum pump, rotary pipe joint, pedal switch, electro-valve, and assorted needles. The monitor's split-screen capability lets you watch both microscope views at once. It is designed as a full kit that you assemble and calibrate yourself, and the single-head manual operation is best suited to prototyping, small-batch work, or learning. The limitation is that it will not keep up with an automated line.
Final Choice by Use Case
If your semiconductor PCB manufacturing requires continuous placement, the Hanwha Samsung SM421 is the machine to evaluate. It is a complete unit with the structure of a production SMT line. If you are starting out or working in a small workshop, the PickSoEasy PSE-20 is a practical alternative. It gives you the tools to place components with visual guidance and the flexibility to work board by board. Choose the machine that matches your volume and bench space.
