When you are outfitting a semiconductor PCB manufacturing line, the first question is not which brand to pick; it is which job needs to be filled. The option that makes sense for one process can be nearly useless for another. These four products illustrate that point: a vacuum viewport for chamber observation, a controller board for a control system, a pick-and-place machine for component placement, and a test fixture for semiconductor parameter analysis. Listed prices span a wide range, so the decision is as much about matching function as it is about spending.
Quick Take
Semiconductor PCB manufacturing spans very different jobs, and the four components below reflect that: a vacuum viewport, a process controller board, a desktop pick-and-place machine, and a lab test fixture. If your immediate need is placing components on a board, the Opulo LumenPnP v3.2.2 is the product to focus on. If you are instrumenting an existing process, the Kurt J Lesker viewport, Pneutronics controller board, and HP test fixture each fill a distinct role.
Listed-Price Comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| KURT J LESKER CO VPZL-800 Viewport, Zero-Length, 8"UHV | USD 600.00 | |
| Pneutronics 990-004366-001 D17-D24 Source, Sink D9-D16 board.24v/ DC 100psi. NEW | USD 279.95 | |
| Opulo LumenPnP v3.2.2 Desktop Pick and Place Machine SMT SMD OpenPNP | USD 1,600.00 | |
| HP Hewlett Packard 16058A Test Fixture 4145A 4145B Semiconductor Analyzer | USD 349.98 |
Decision Matrix
- Need a clear window into a vacuum process? Choose the KURT J LESKER CO VPZL-800 Viewport.
- Need a source/sink board at 24 V DC / 100 psi? Choose the Pneutronics 990-004366-001.
- Need to place SMT/SMD parts? Choose the Opulo LumenPnP v3.2.2.
- Need to test semiconductor devices? Choose the HP 16058A Test Fixture.
Product Notes

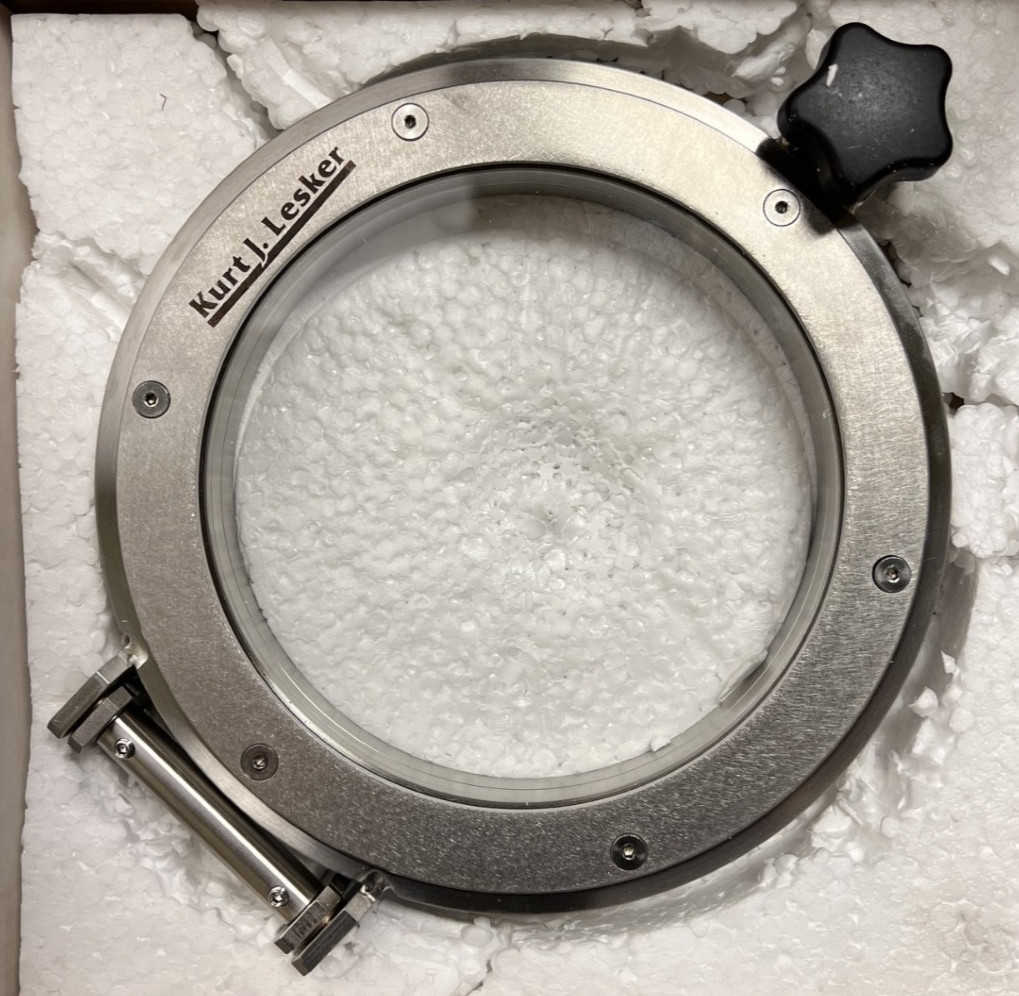

KURT J LESKER CO VPZL-800 Viewport, Zero-Length, 8"UHV
If your semiconductor process needs visual access to a chamber, this glass viewport is made for that role. It is a zero-length, 8-inch UHV viewport from Kurt J Lesker with U.S. origin and new-open-box condition. It is a specialized window rather than an active tool, so it fits into a setup that already has a chamber or enclosure. The practical limit is that it will not do any processing on its own; it is for observation, and you would be buying a glass component that must be accommodated by the rest of your system.
Pneutronics 990-004366-001 D17-D24 Source, Sink D9-D16 Board
This is the lowest listed price in the group. The Pneutronics board is a D17-D24 source and D9-D16 sink board rated at 24 V DC and 100 psi. For a manufacturing setup that needs a source/sink processor board for power or pressure distribution, this is the component to integrate. The limitation is that it is a board, not a complete controller: you are buying one processor board to slot into a larger system, and the model number is specific to that source/sink configuration.
Opulo LumenPnP v3.2.2 Desktop Pick and Place Machine SMT SMD OpenPNP
If you are placing surface-mount components, this is the only full machine in the group. The LumenPnP is a desktop pick-and-place machine with a dual head, semi-automatic operation, and OpenPNP support. It was assembled but never used, and the tool bag is missing. That makes it a pick-and-place option with a caveat: since it is new open box and missing the tool bag, factor that into the purchase. It is the highest-priced item here, but it is also the only one that places parts.

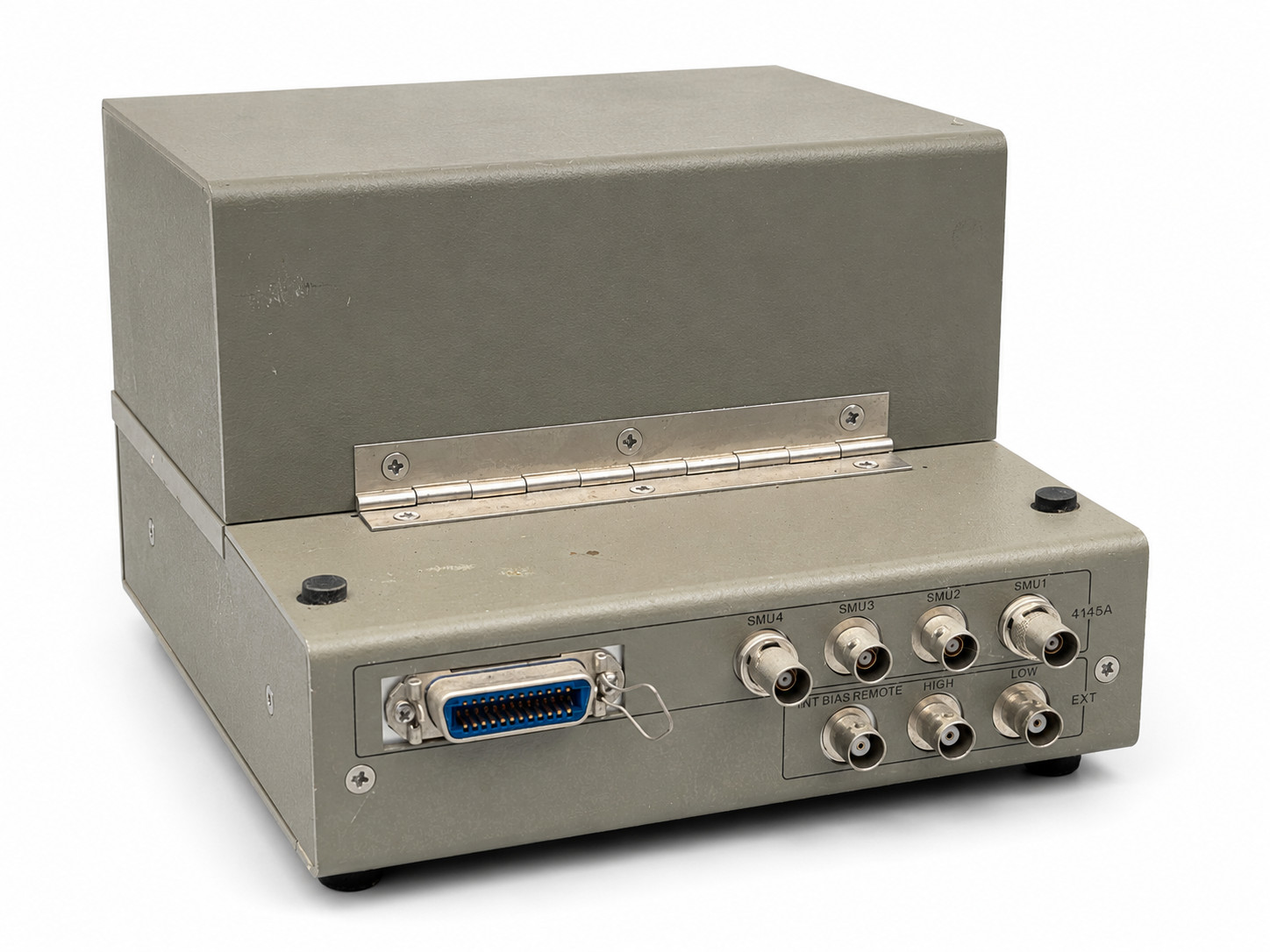

HP Hewlett Packard 16058A Test Fixture 4145A 4145B Semiconductor Analyzer

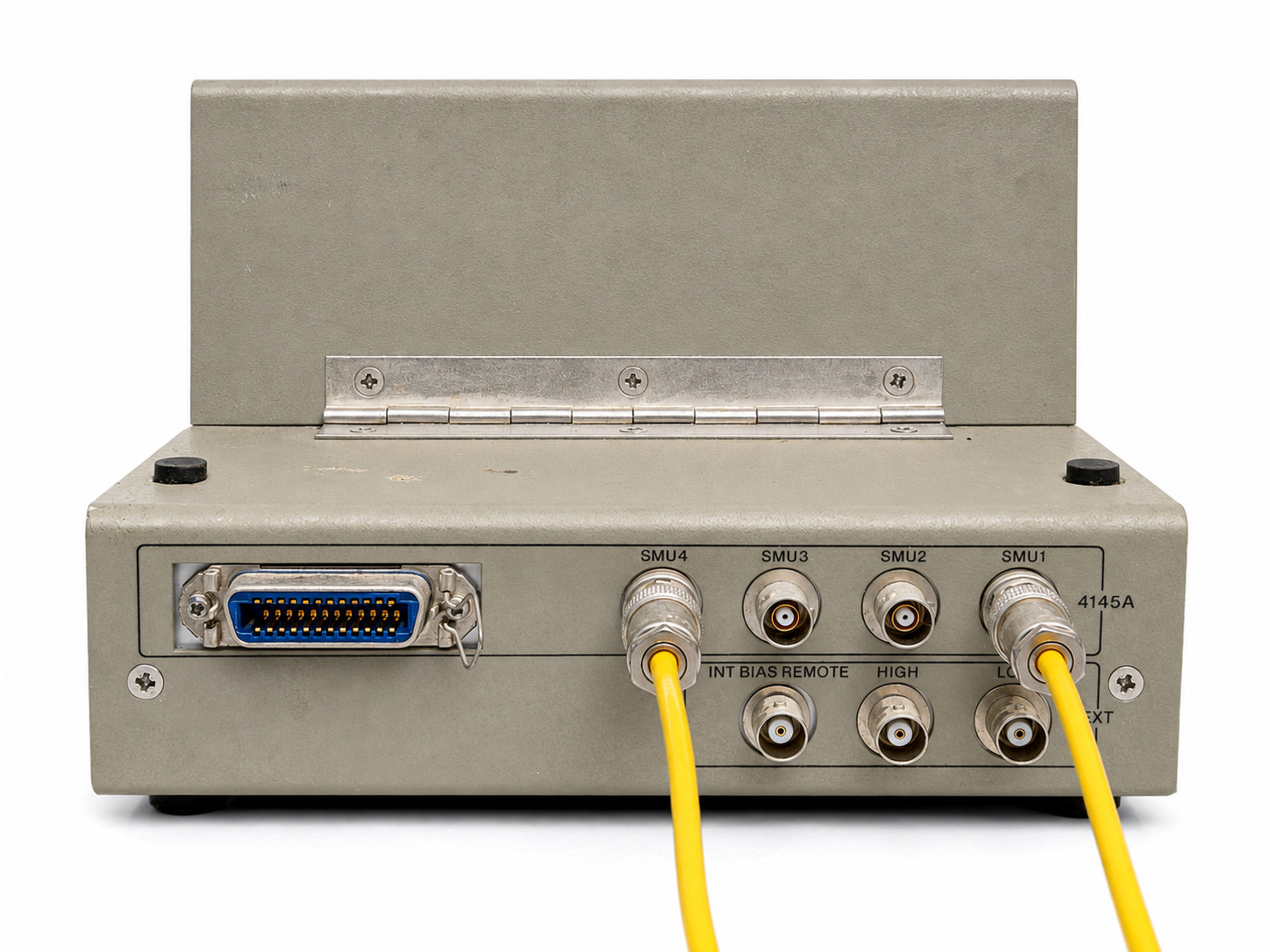

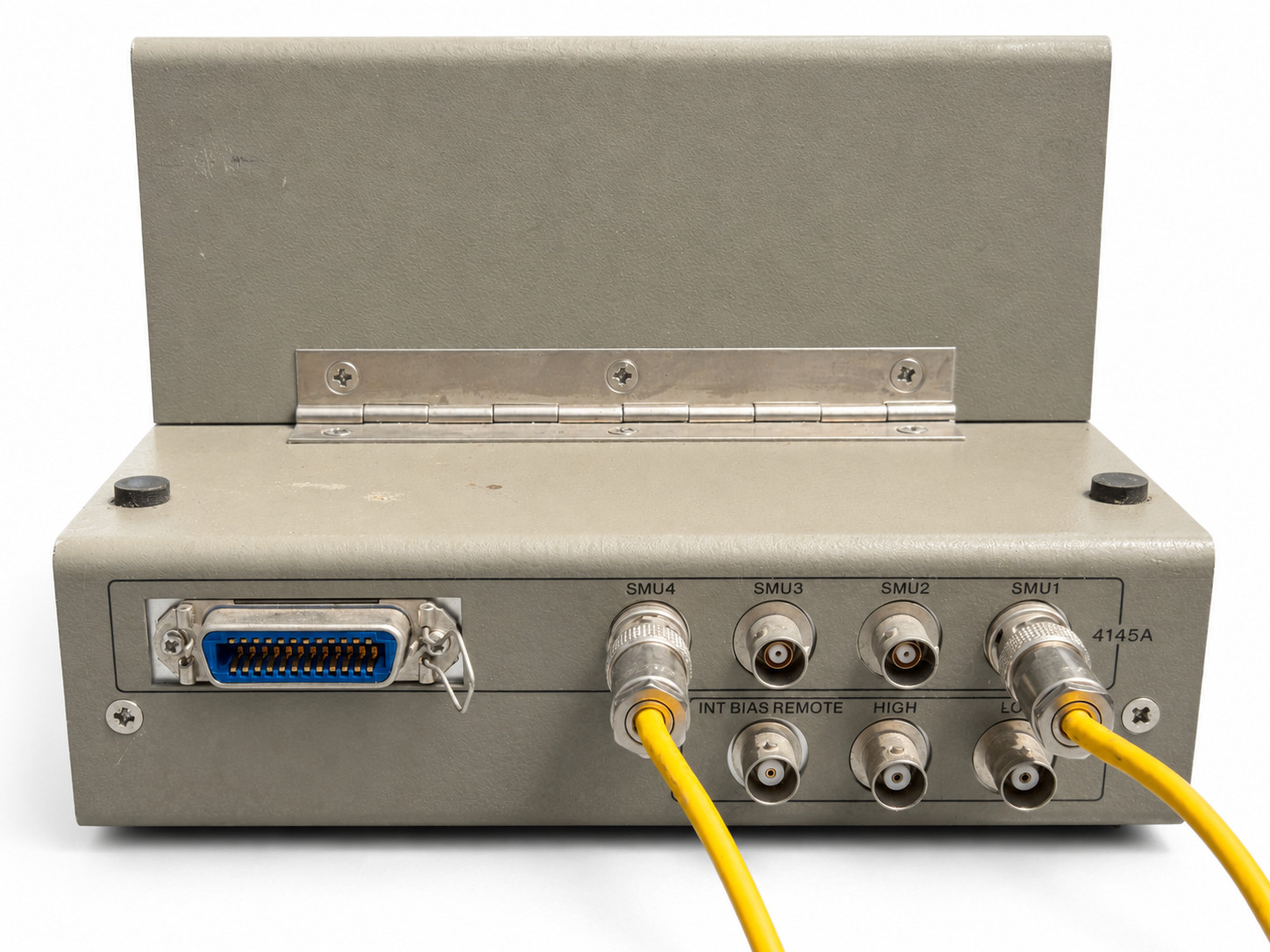

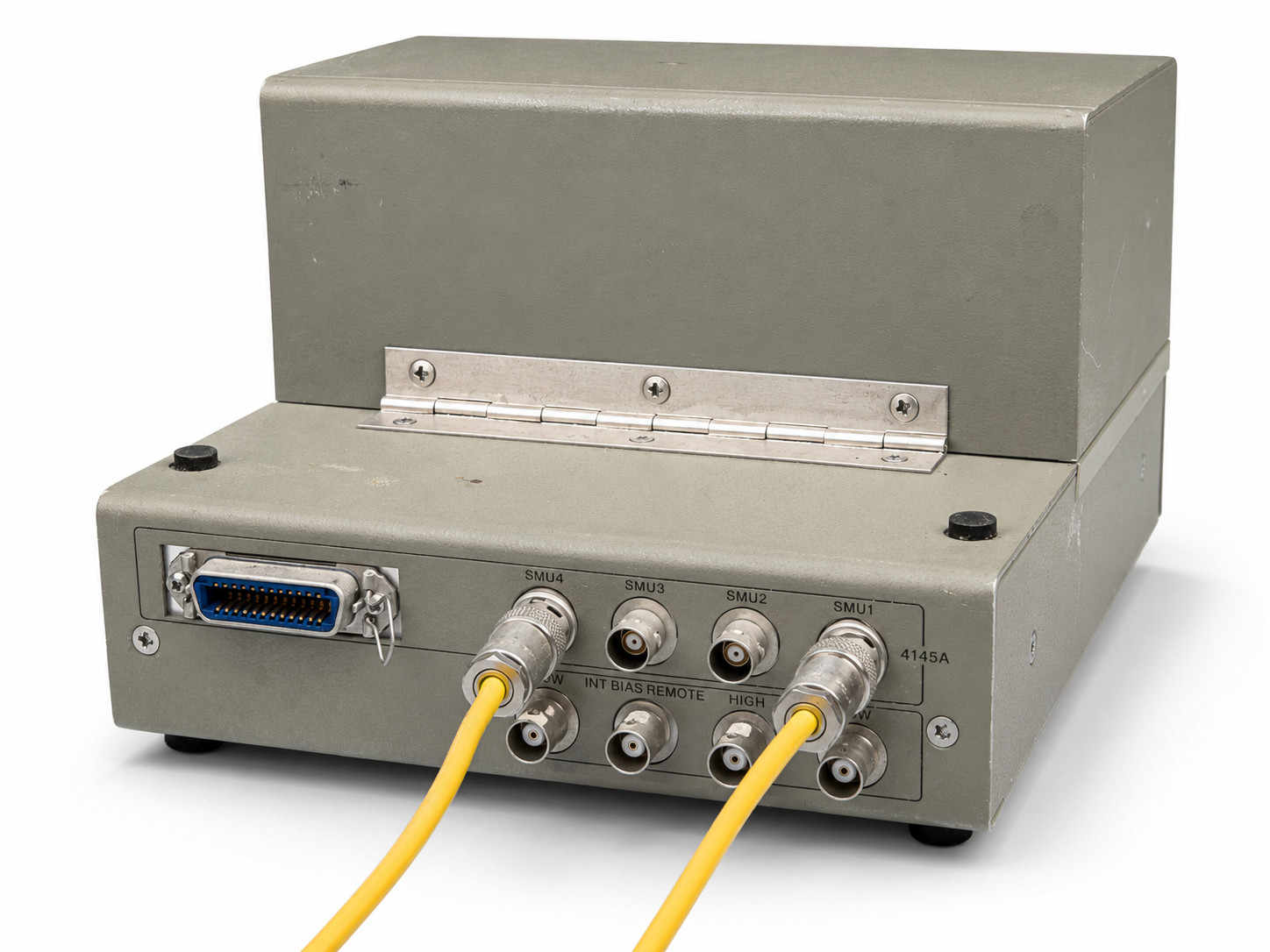

For semiconductor validation work, the HP 16058A test fixture is designed for HP 4145A / 4145B semiconductor parameter analyzers. This used unit includes the fixture, the internal 18-pin dual in-line package test area, and connector labels for SMU1-SMU4, HIGH, LOW, EXT, and INT BIAS REMOTE. No HP 4145A or 4145B analyzer is included, so the fixture is a companion piece for someone who already has that analyzer or plans to pair it with one. That is the main limitation: it is an accessory, not a standalone test system.
Final Recommendation by Use Case
- For SMT/SMD assembly: Choose the Opulo LumenPnP v3.2.2; it is the machine that places parts, and the $1,600 price reflects that role.
- For chamber observation: Choose the Kurt J Lesker VPZL-800 Viewport; the glass window fits a monitoring setup, priced at $600.
- For board-level control integration: Choose the Pneutronics 990-004366-001; at $279.95 it is the lowest listed price and fills a specific board-level role.
- For HP 4145A/B semiconductor testing: Choose the HP 16058A Test Fixture; at $349.98 it extends an existing analyzer rather than replacing it.
