Choosing presses, brakes, shears and metal-forming tooling starts with the machine already in the shop. Two options are replacement sets for designated 8-inch or 12-inch ironworker brakes, one is a 10-inch punch-and-die set, and one is an attachment for 12- or 20-ton hydraulic workshop presses. That machine split matters more than the listed-price span of $44.27 to $399.
Quick take
The two ClevorRacing combinations are the direct choices for ironworker brake formats: select the 12-inch version for a 12-inch brake or the 8-inch version for an 8-inch brake. Both pair a 4-way die with a top punch and aluminum centering tray, and both state bending from 18 gauge through 1/4-inch plate.
The Bornova USA set is the geometry-focused middle option, with a 10-inch straight punch, a 2.36-inch-square die, and four specified V openings. The red Press Brake Attachment takes a different route altogether, serving standard 12- or 20-ton hydraulic workshop presses with a stated 12-inch maximum bending length and 3/16-inch maximum thickness.
Listed price comparison
| Tooling option | Listed price | Relative price position |
|---|---|---|
| Press Brake Attachment Press Brake Attachment for Hydraulic Shop Presses | $44.27 | |
| Bornova USA Press Brake Block Punch Die 10" Long Set, Punch H: 3.78", Die: 2.36 | $247.00 | |
| Press Brake 4 Way die, Top punch, and Center tray for your 8" Ironworker Brake | $299.00 | |
| Press Brake 4 Way die, Top punch, and Center tray for your Ironworker 12" Brake | $399.00 |
The lowest listed price belongs to the hydraulic-shop-press attachment, while the 12-inch ironworker set sits at the top of the range. The most useful comparison is not simply cost: the four choices are built around notably different working formats and dimensions.
Decision matrix
- For a 12-inch ironworker brake: choose the 12-inch ClevorRacing 4-way die, top punch, and centering tray combination. Its stated fit calls for an open height from 6-1/2 to 7-1/4 inches.
- For an 8-inch ironworker brake: choose the corresponding 8-inch ClevorRacing combination. It retains the same core die, punch, and tray layout in the shorter brake format.
- For defined punch and V-die dimensions: choose the Bornova USA 10-inch set. Its 1.97-, 1.38-, 0.87-, and 0.63-inch V openings make the available die geometry especially clear.
- For a 12- or 20-ton hydraulic workshop press: choose the red Press Brake Attachment, whose stated bending envelope is 12 inches long by 3/16 inch thick at a 90-degree angle.
Product notes
Press Brake 4 Way die, Top punch, and Center tray for your Ironworker 12" Brake

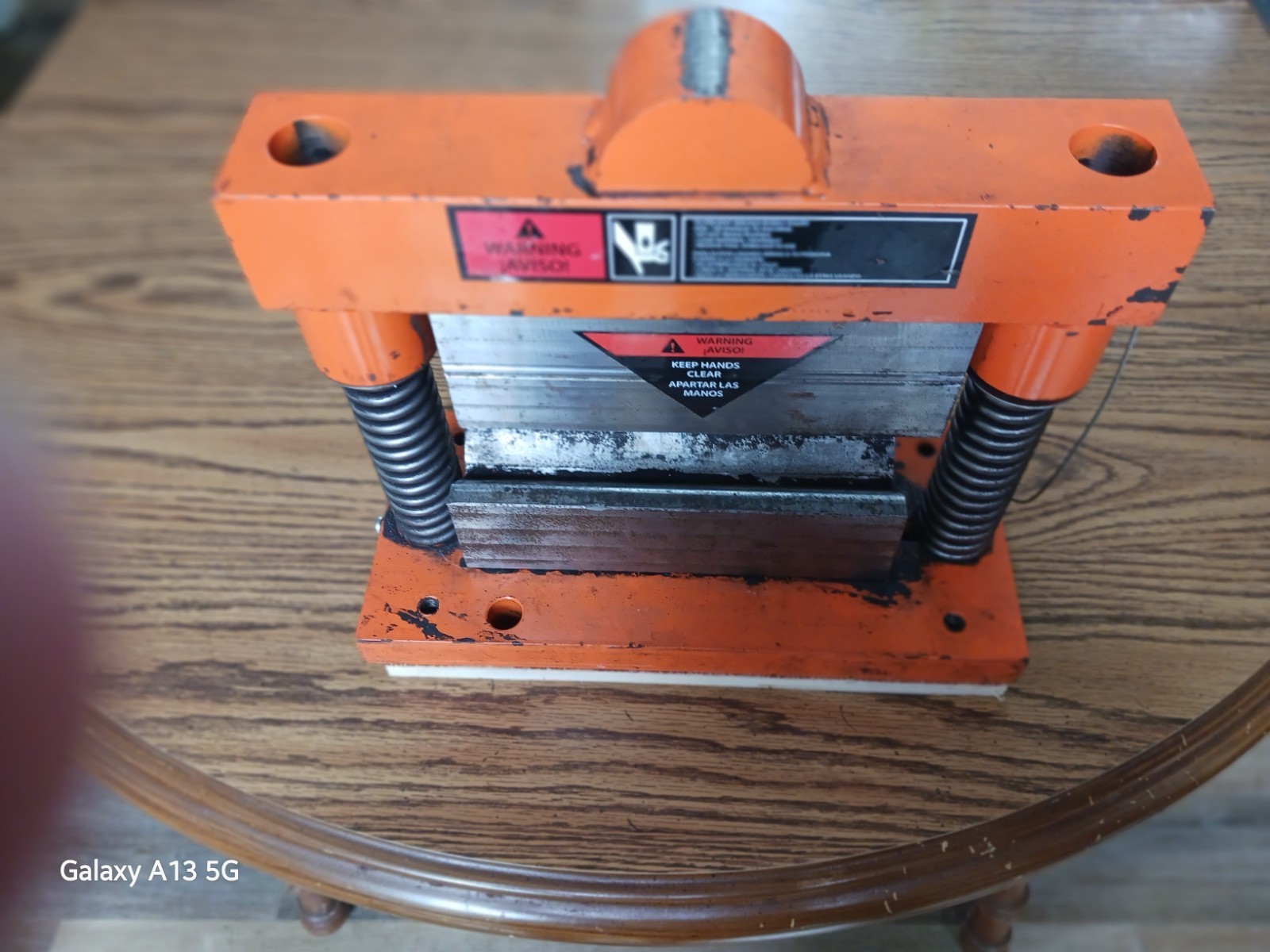

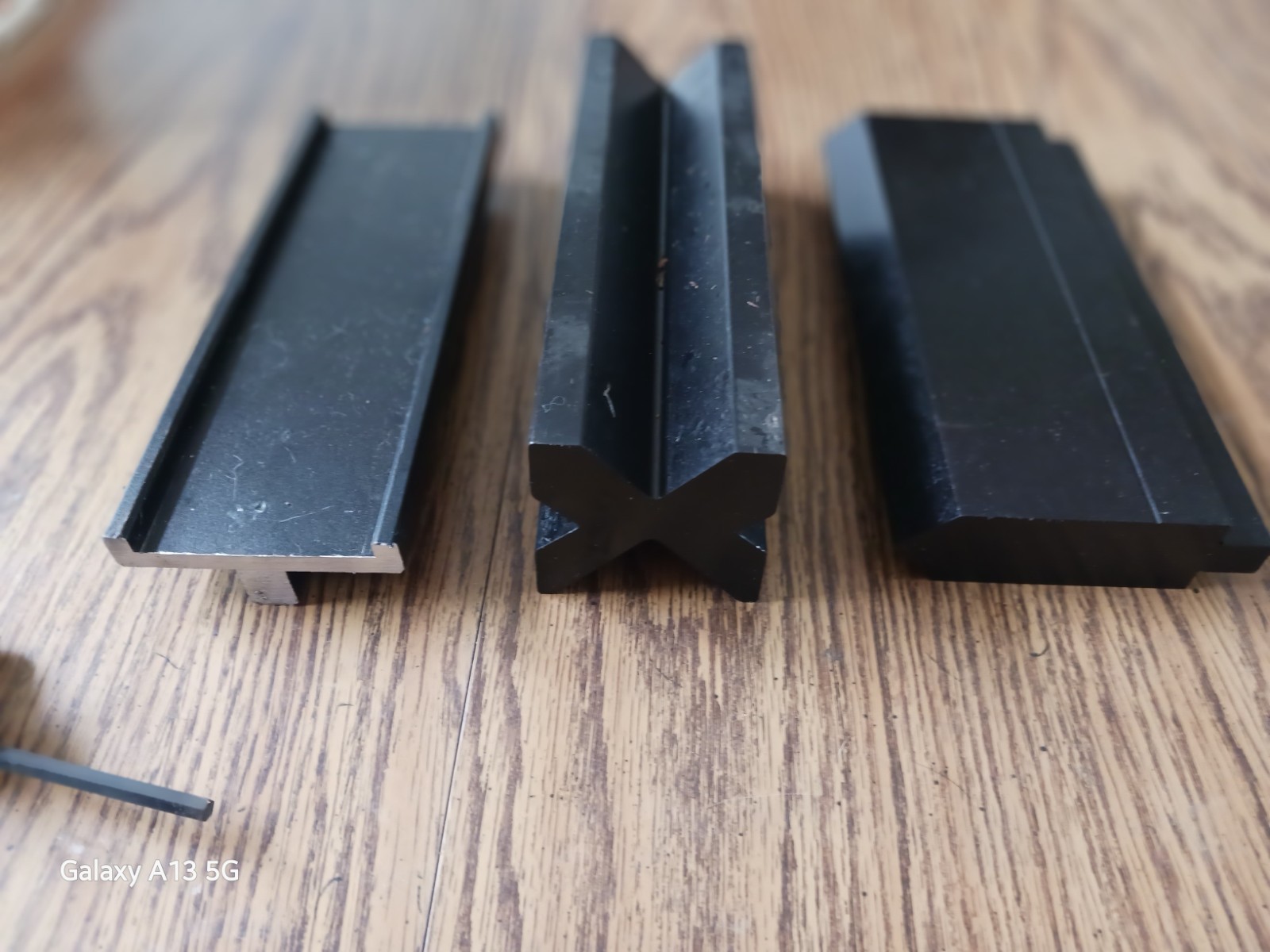

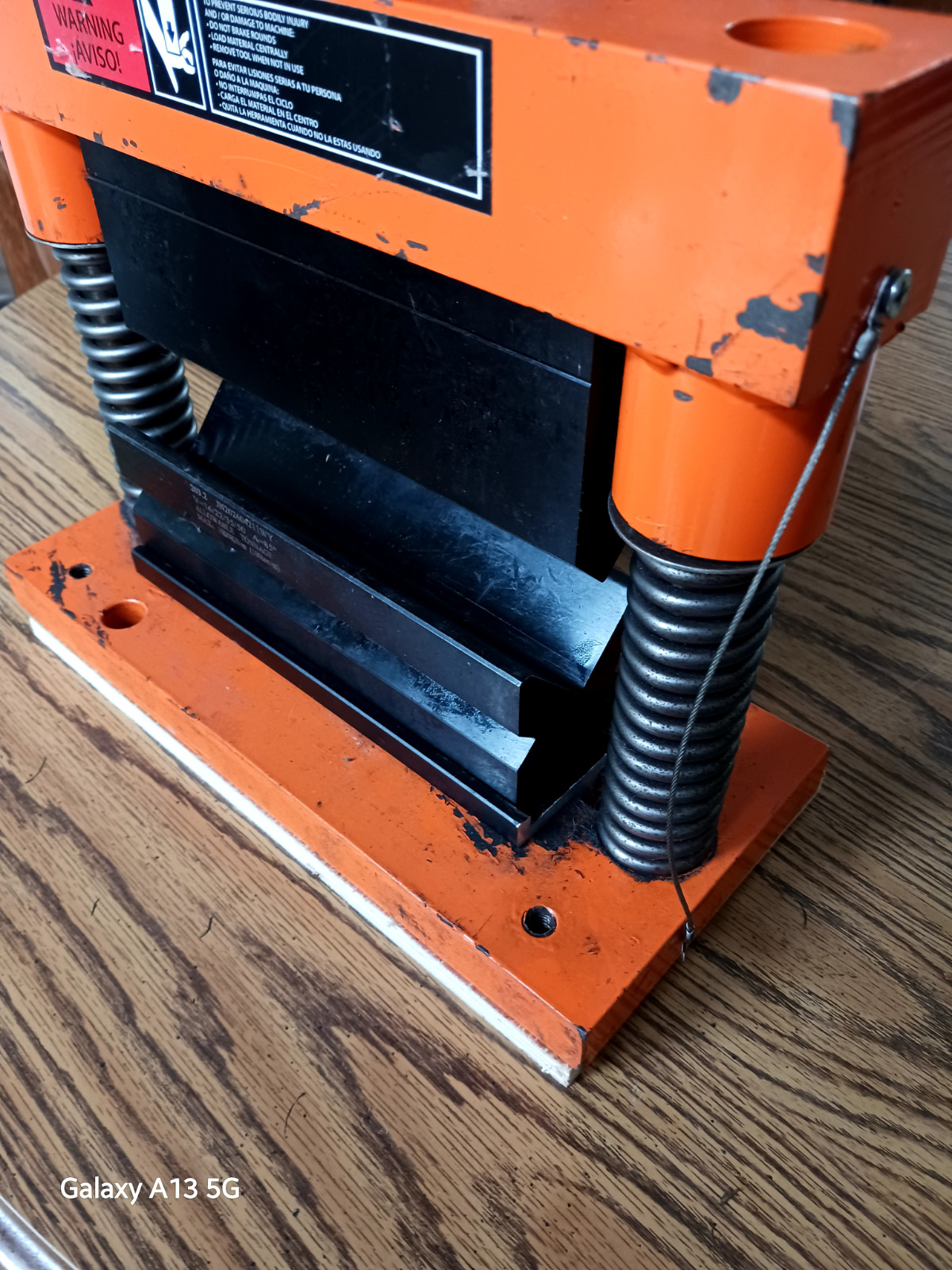

The 12-inch ClevorRacing set addresses an ironworker brake arrangement that calls for a 12-inch-long 4-way die. It includes a top punch and aluminum centering tray alongside the die, making it a focused tooling package for a brake rather than a complete brake assembly. The stated 42CrMo (ASTM 4140) treated material and black coating give the set clearly defined construction details. Pick this combination for the designated 12-inch brake format when the stated 6-1/2- to 7-1/4-inch open-height fit applies. Its key limitation is explicit: the press brake unit is not included, and the configuration is designated for a 12-inch brake.
Press Brake 4 Way die, Top punch, and Center tray for your 8" Ironworker Brake
The 8-inch ClevorRacing version is the natural counterpart for an 8-inch ironworker brake. Its package keeps the 4-way die, top punch, and aluminum centering tray arrangement, while the die itself is specified at 8 inches long. The description also states bending from 18 gauge up to 1/4-inch plate, matching the listed capacity claim of the larger ironworker set. Choose it when the shorter brake width is the governing dimension and a replacement punch-and-die combination is the goal. The practical constraint is that 8-inch die length: it is purpose-built around the 8-inch ironworker brake designation rather than the 12-inch format.

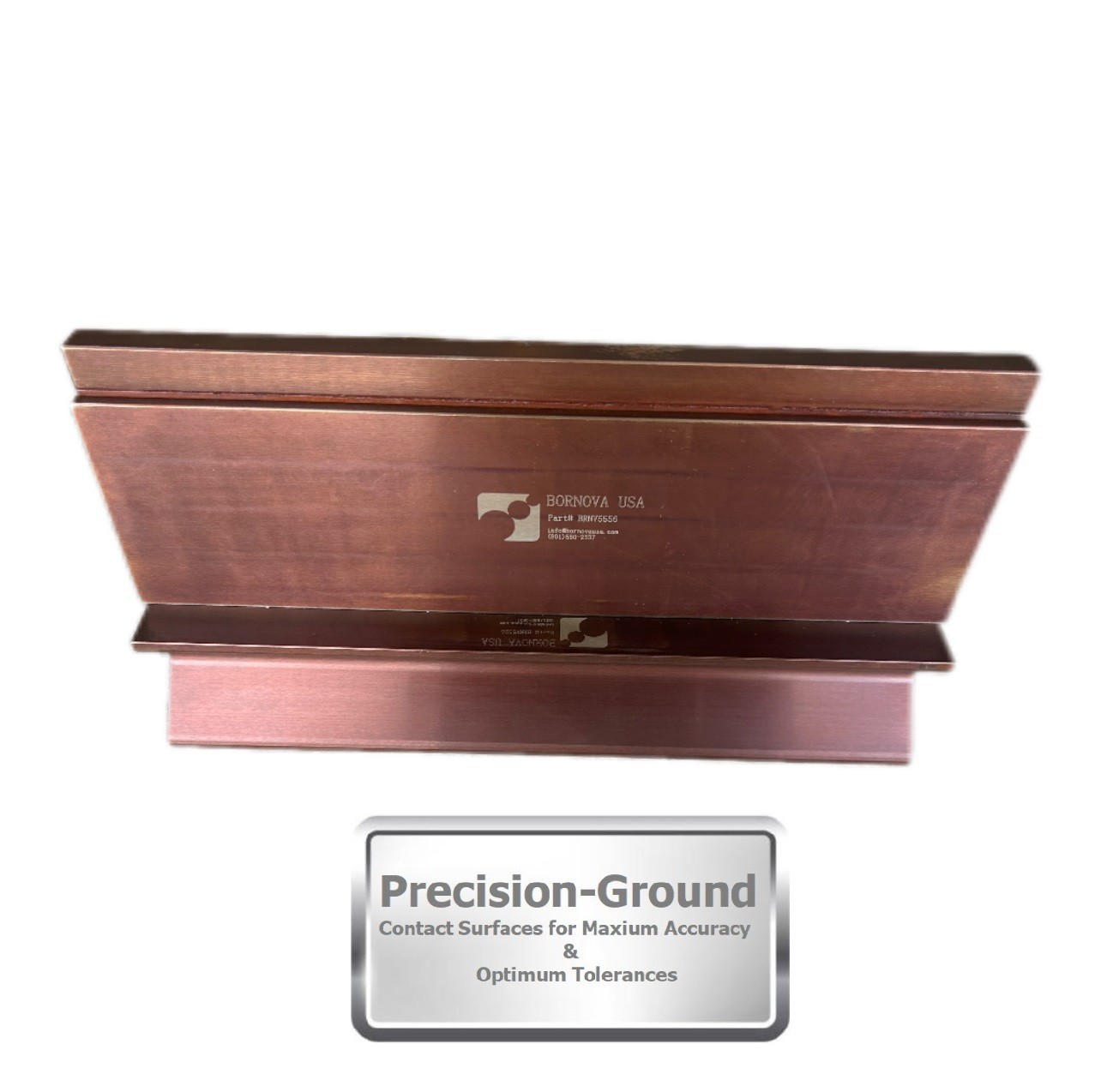

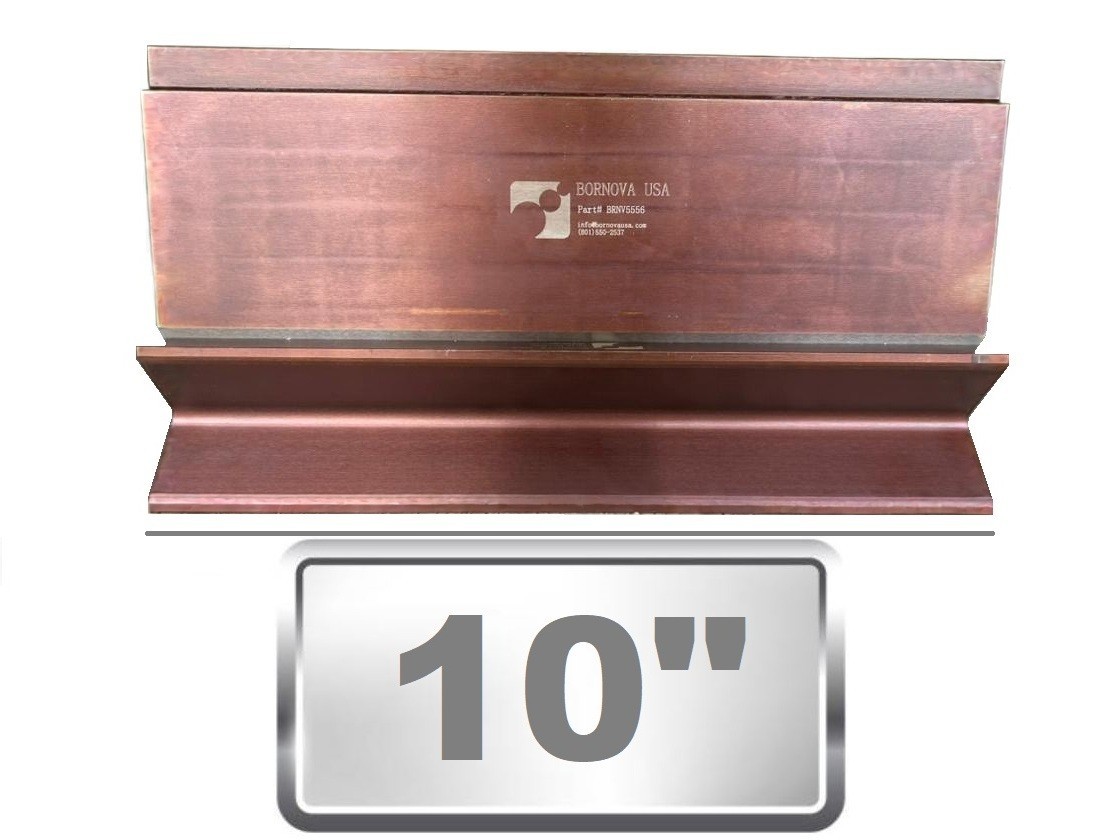

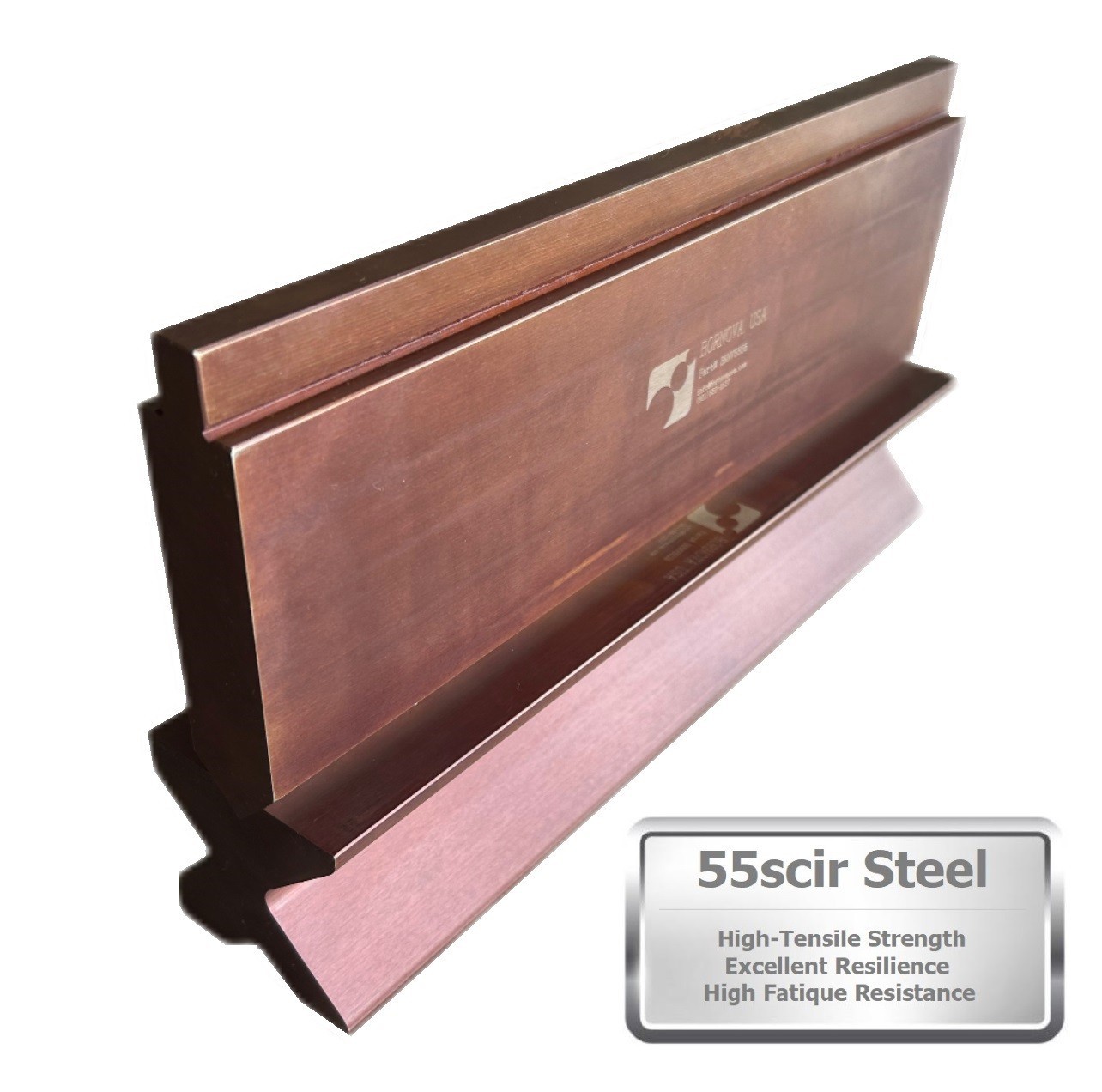

Bornova USA Press Brake Block Punch Die 10" Long Set, Punch H: 3.78", Die: 2.36

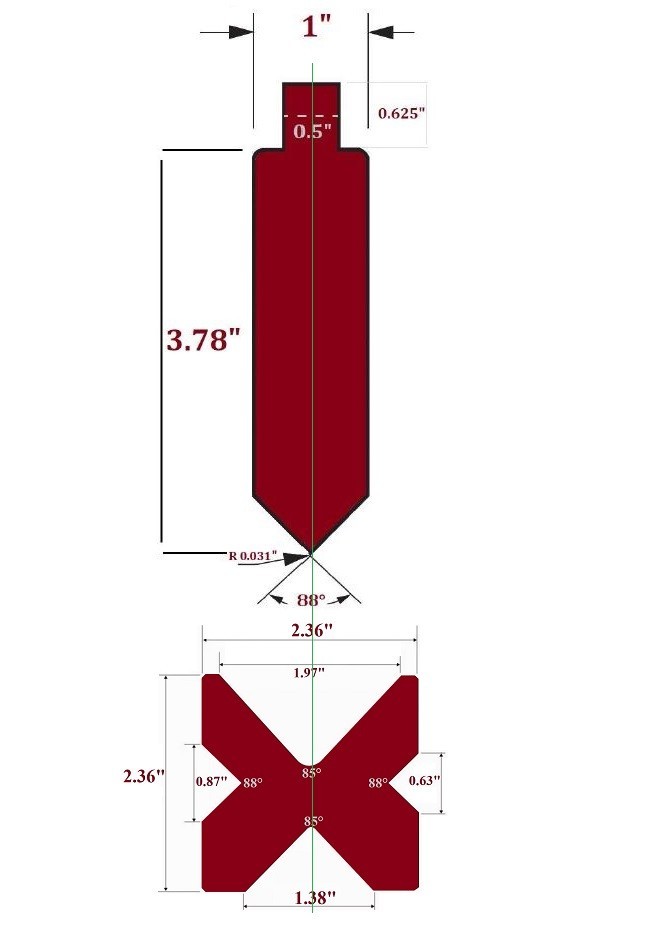

Bornova USA's set is the clearest option for shoppers selecting around stated tooling geometry. It combines a 10-inch straight punch with a 3.78-inch punch height and a 2.36-inch-square 4-way die. The four V openings-1.97, 1.38, 0.87, and 0.63 inches-provide a defined range of die channels within that block. Select this set when those punch and die dimensions align with the intended brake setup and the available V-opening choices are central to the job. Its boundary is the fixed tooling geometry: the stated 10-inch length, punch height, and die dimensions set the format rather than adapting it to either named ironworker size.
Press Brake Attachment Press Brake Attachment for Hydraulic Shop Presses
The red Press Brake Attachment is aimed at a hydraulic workshop press rather than an ironworker brake. Made from stated 45# steel, it is suitable for most standard 12- or 20-ton hydraulic workshop presses and is described for metal-sheet shaping tasks such as reinforcement grooves, ribs, brackets, and related formed sections. Choose this attachment when working within its stated 12-inch maximum bending length and 3/16-inch maximum bending thickness. Those limits are also its main constraint: the 3/16-inch thickness specification defines a different scope from the 1/4-inch plate claim attached to the ClevorRacing ironworker tooling.
Final recommendation by use case
For a dedicated ironworker brake, let brake width decide first: the 8-inch and 12-inch ClevorRacing combinations map directly to their named formats. For a 10-inch straight-punch setup where V-opening dimensions drive the selection, the Bornova USA set is the most dimension-specific choice. For a standard 12- or 20-ton hydraulic workshop press and sheet work within a 12-inch by 3/16-inch envelope, the Press Brake Attachment is the distinct match and carries the lowest listed price in this group.
