When you're outfitting a PCB assembly line for semiconductor-grade board production, the pick-and-place machine is the decision that can make or break your throughput. The challenge is that two very different used machines can both claim your attention: a compact, feeder-rich desktop unit and a full-size industrial placement system. The right choice depends on the boards you run, the components you place, and how much placed capability you need per dollar.
Quick Verdict
For small boards, prototyping, and low-volume production with mixed component sizes, the NeoDen4 is the practical pick thanks to its comprehensive 42-feeder package. For larger boards up to 18" x 16", faster placement with four spindle heads, and on-the-fly vision, the Hanwha Samsung SM421 is the more capable industrial machine if your budget allows.
Listed Price and Configuration Comparison
| NeoDen4 SMT Pick and Place Machine with 42 Feeders | Hanwha Samsung SM421 Pick and Place Machine | |
|---|---|---|
| Listed price | USD 4,000.00 | USD 17,000.00 |
| Price bar | ||
| Condition | Used | Used |
| Head setup | Single head | 4 spindle heads |
| Feeder configuration | 42 electric tape feeders (8mm to 24mm) | Fixed feeder bank |
Where Each Product Wins
- NeoDen4 wins on entry cost and the completeness of its feeder package, letting you place a wide range of component sizes without buying extra reels.
- Hanwha Samsung SM421 wins on production capability and larger board support, making it a stronger fit for higher-volume or bigger-format needs.

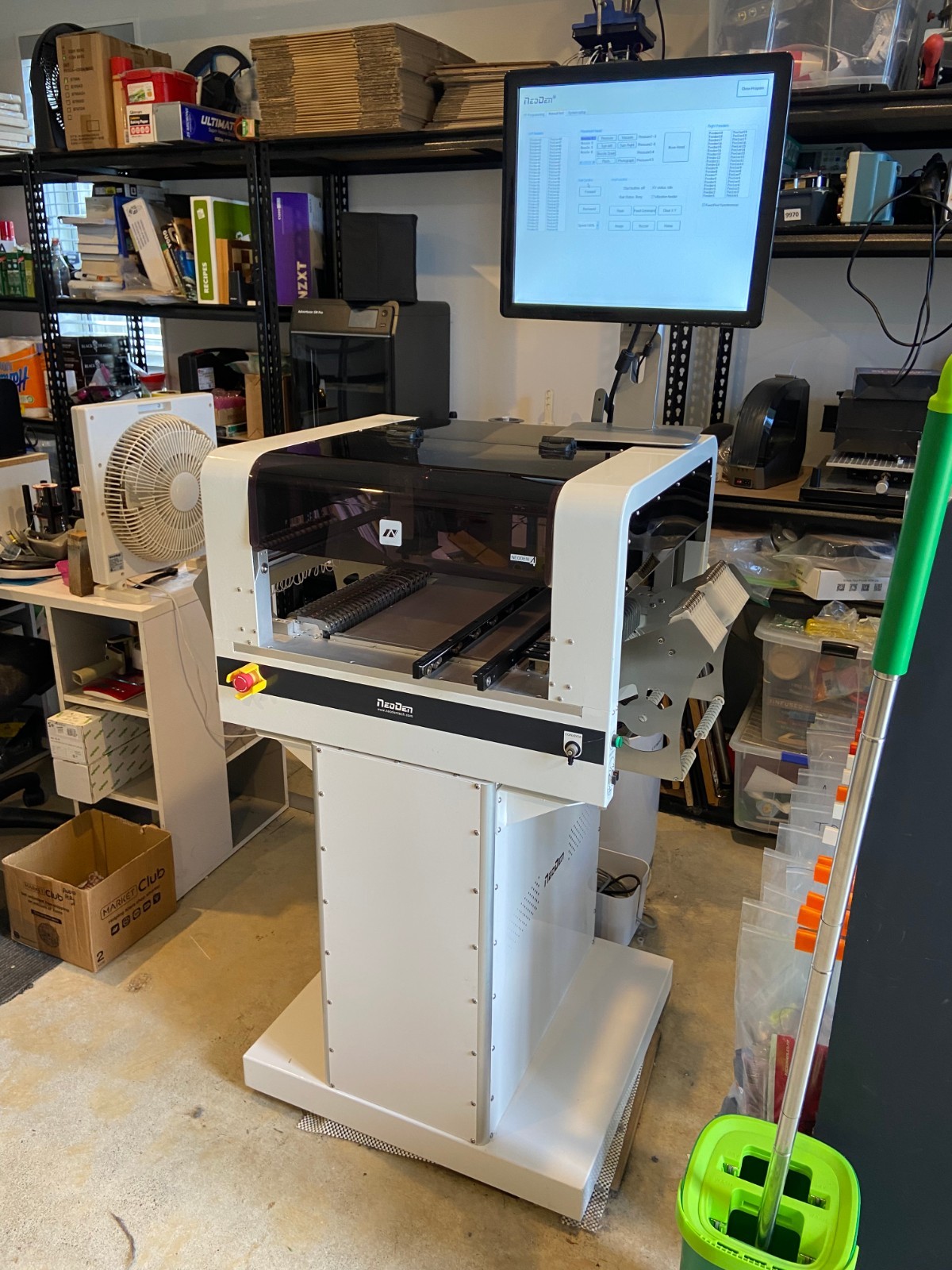

NeoDen4 SMT Pick and Place Machine with 42 Feeders

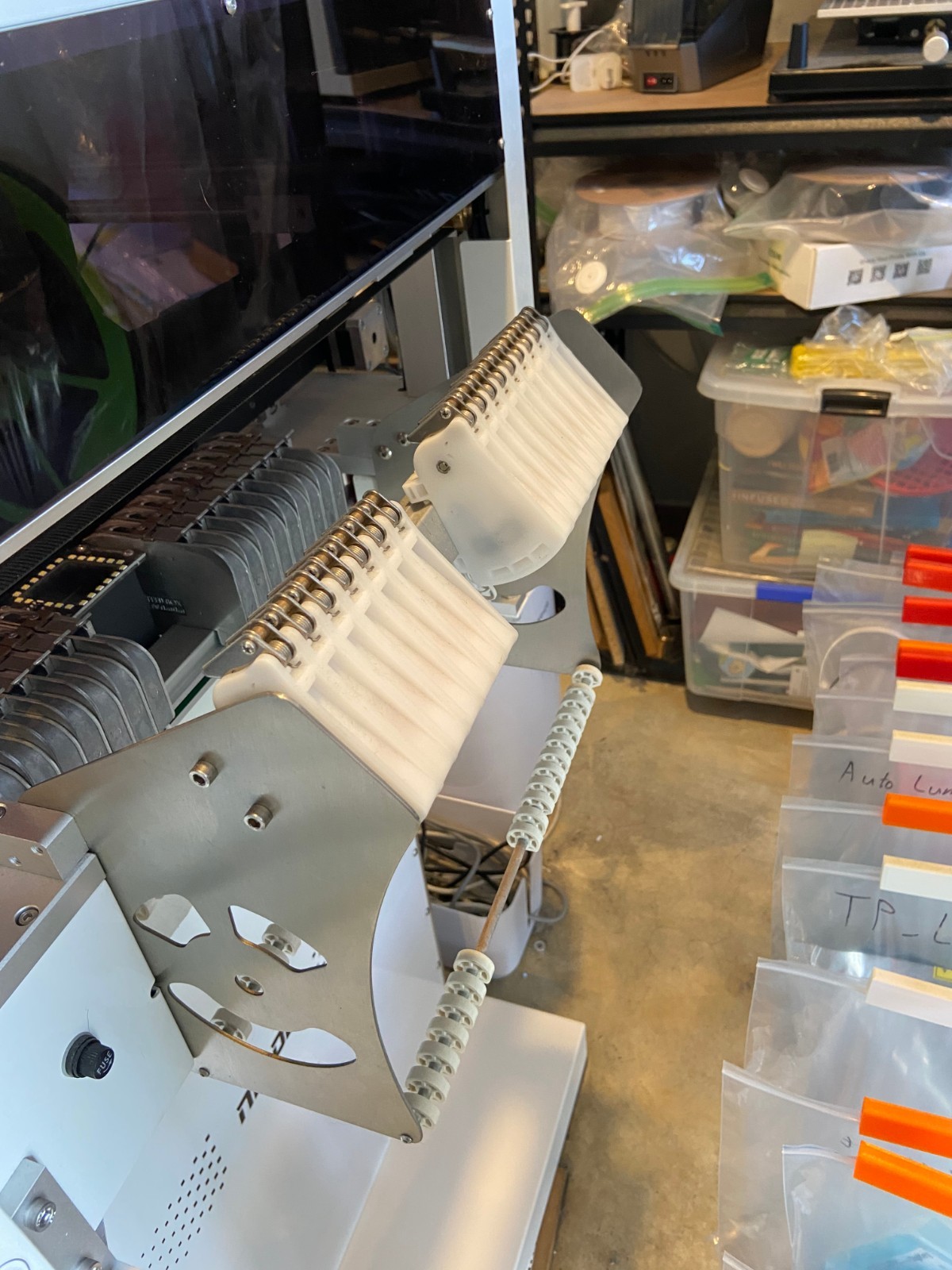

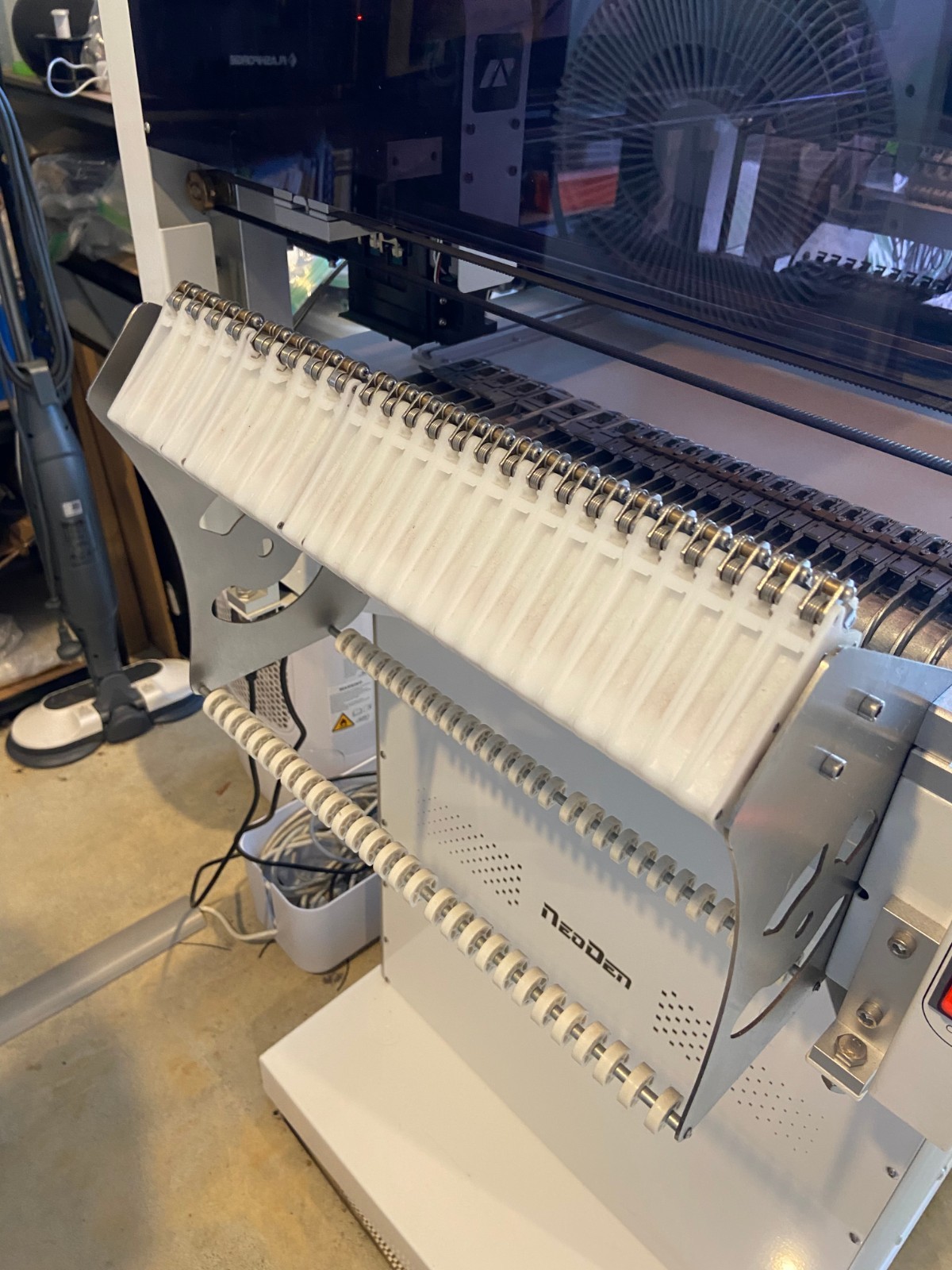

This used machine lists at USD 4,000.00 and comes with 42 electric tape feeders across 8mm, 12mm, 16mm, and 24mm sizes. Described as purchased new in 2022 and in very good condition, its single-head, automatic operation suits prototyping, product development, and small production runs. The main limitation is the single head: if your boards have hundreds of components, placement time will be longer than a multi-spindle machine. Also, the description does not list a maximum board size, so you'll want to match your board dimensions to its compact format. Choose the NeoDen4 when the feeder package and low price matter more than raw throughput.
Hanwha Samsung SM421 Pick and Place Machine
This used Hanwha Samsung SM421F (2010 model) is listed at USD 17,000.00. It features four spindle heads, a fixed feeder bank, and on-the-fly vision, and handles boards from 2" x 2" up to 18" x 16". It runs on 200-240V and is described as fully functional. The limitation is the price: it costs $13,000 more than the NeoDen4, so the higher capability must be justified by your production volume. Choose the SM421 for larger boards, higher component counts, and applications where speed and vision inspection are critical.
Final Choice by Use Case
Go with the NeoDen4 if you are a prototyping shop or small-volume PCB assembler on a tighter budget. Its 42 feeders and automatic single-head operation cover a wide range of components without a large capital outlay. Choose the Hanwha Samsung SM421 if you routinely place boards up to 18" x 16", need four spindles to move components quickly, and rely on on-the-fly vision to keep quality high. Its fixed feeder bank and proven industrial design pay off when your line runs continuously.
