The decision
Choosing the right part for a semiconductor PCB manufacturing line usually comes down to one question: what role does the part play in your process? A breakout board routes signals, a source/sink board drives loads, a spare card replaces a specific PCB, and a stencil printer applies solder paste. The four options here span from $35.00 to $1,500.00, so the real decision is whether you need a narrow component or a full machine.
Quick take
If you need a simple signal-routing board, the TECHNOLOGY 80 INC. TB50H-S is the easiest entry point. If your system is built around the Pneutronics part number, the 990-004366-001 is the specific match. If you want a replacement card, the PBC Board / Card 860802 is the part to match by number. If you need a complete printing machine and are prepared to restore a machine, the DEK 265 Horizon is the whole-system option.
Price comparison
| Product | Listed price | Price bar |
|---|---|---|
| TECHNOLOGY 80 INC. TB50H-S Break Out Board, Part # 900889-A, 50 Pin | USD 35.00 | |
| Pneutronics 990-004366-001 D17-D24 Source, Sink D9-D16 board.24v/ DC 100psi. NEW | USD 279.95 | |
| PBC Board / Card 860802 For MCD Elektronik PCB Manufacturing Equipment | USD 37.49 | |
| DEK 265 Horizon Stencil Printer Automatic PCB SMT Screen PC Board Solder Paste | USD 1,500.00 |
Decision matrix
| Decision point | Product to evaluate | What to know |
|---|---|---|
| You need a simple signal-routing board | TECHNOLOGY 80 INC. TB50H-S | New open-box board made in the United States |
| You need a processor board for a Pneutronics system | Pneutronics 990-004366-001 | New open-box board, unit quantity one |
| You need a used replacement card | PBC Board / Card 860802 | Used card with matching part number |
| You need full-machine printing | DEK 265 Horizon | For parts or not working; print head removed and vacuum not present |
Product notes
None of these four parts does the same job as another, so the most important step is to identify the function your line is missing. The notes below explain what each option brings and where it falls short.

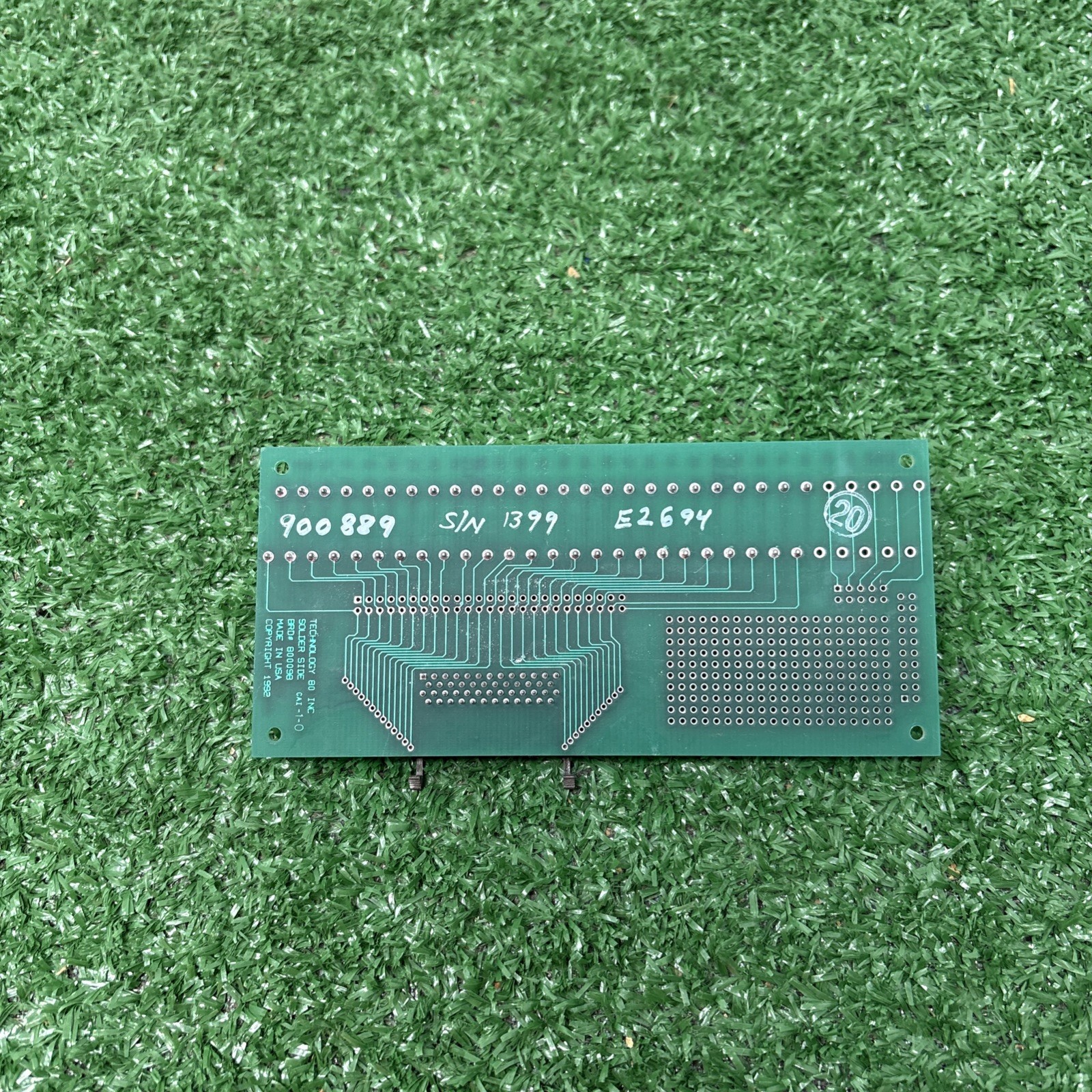

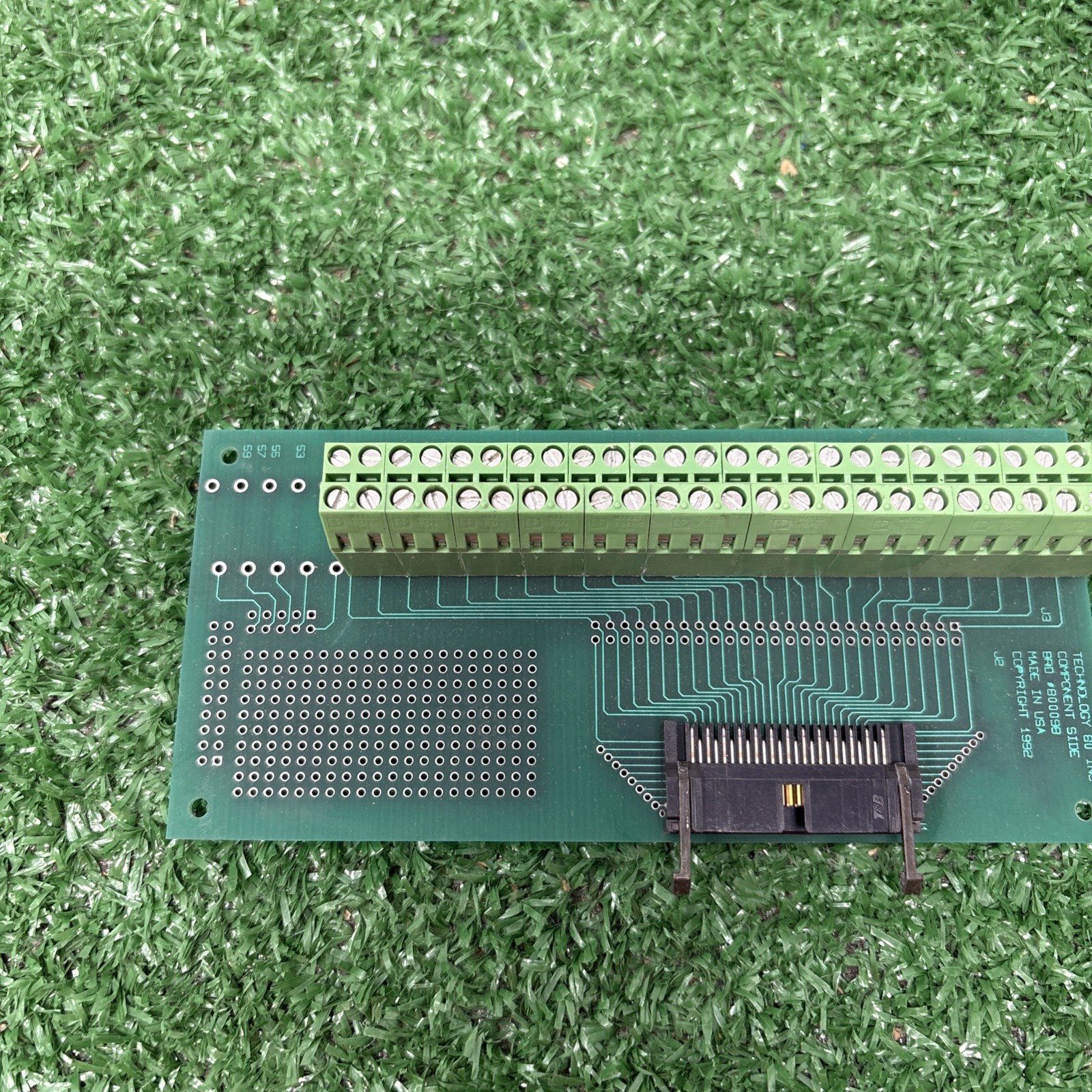

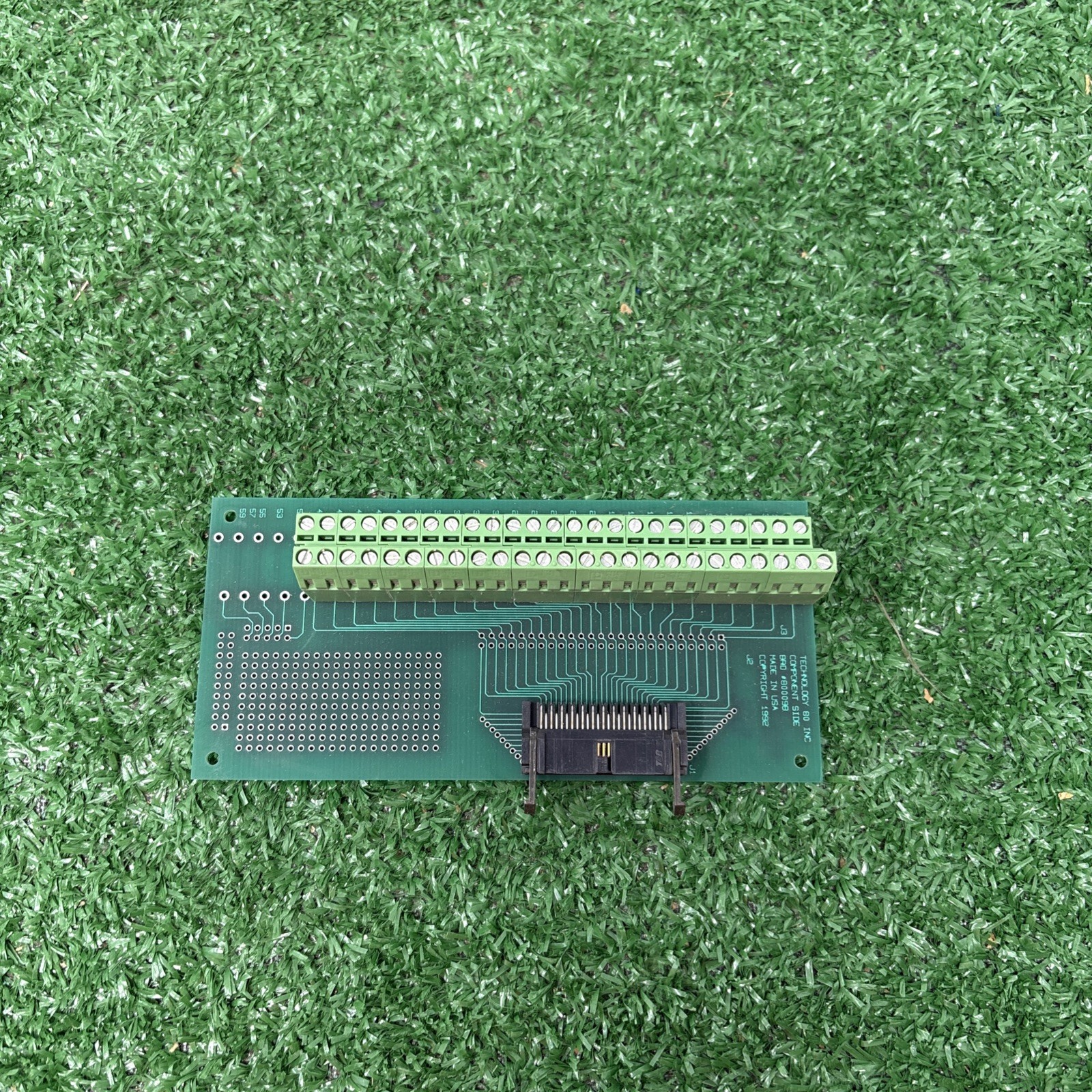

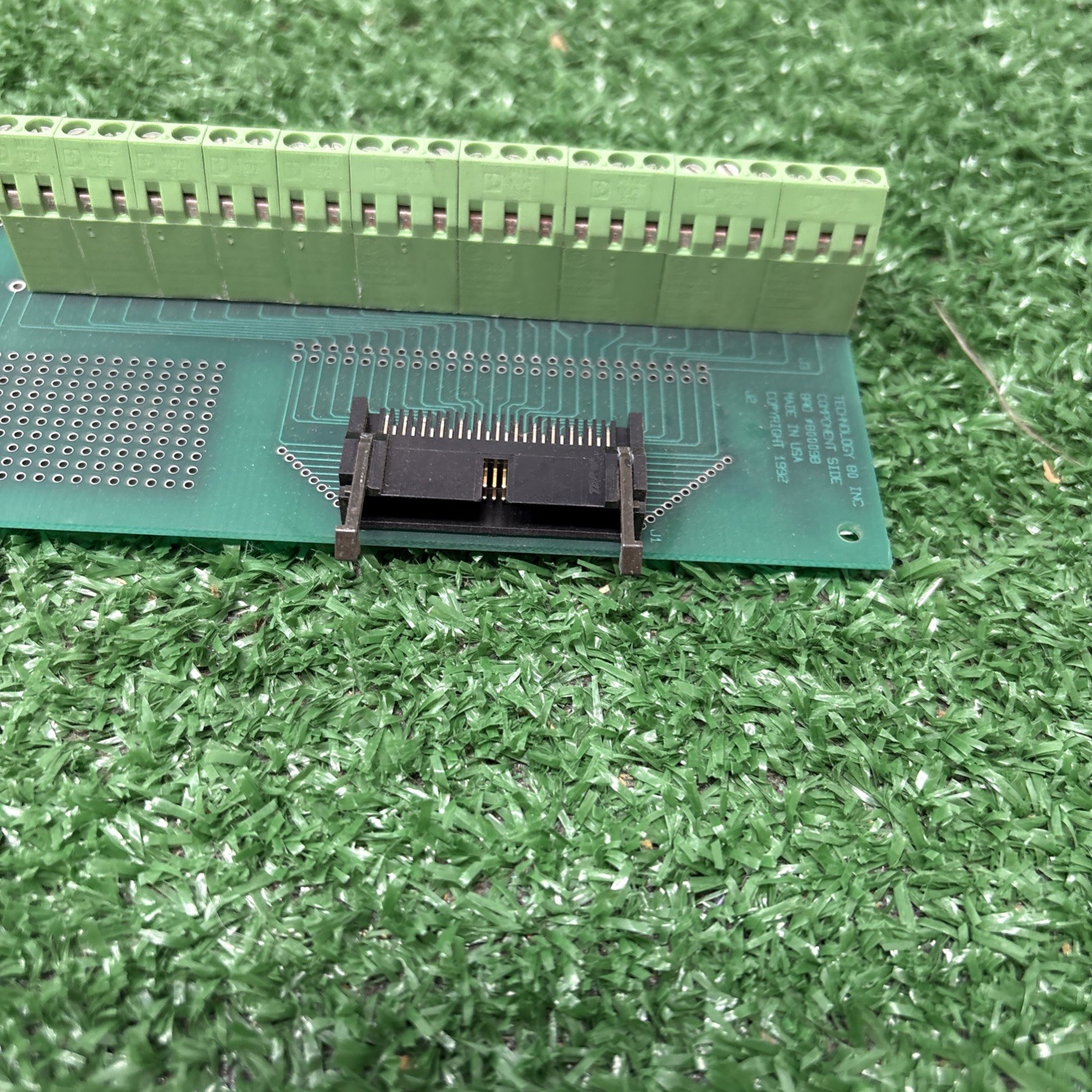

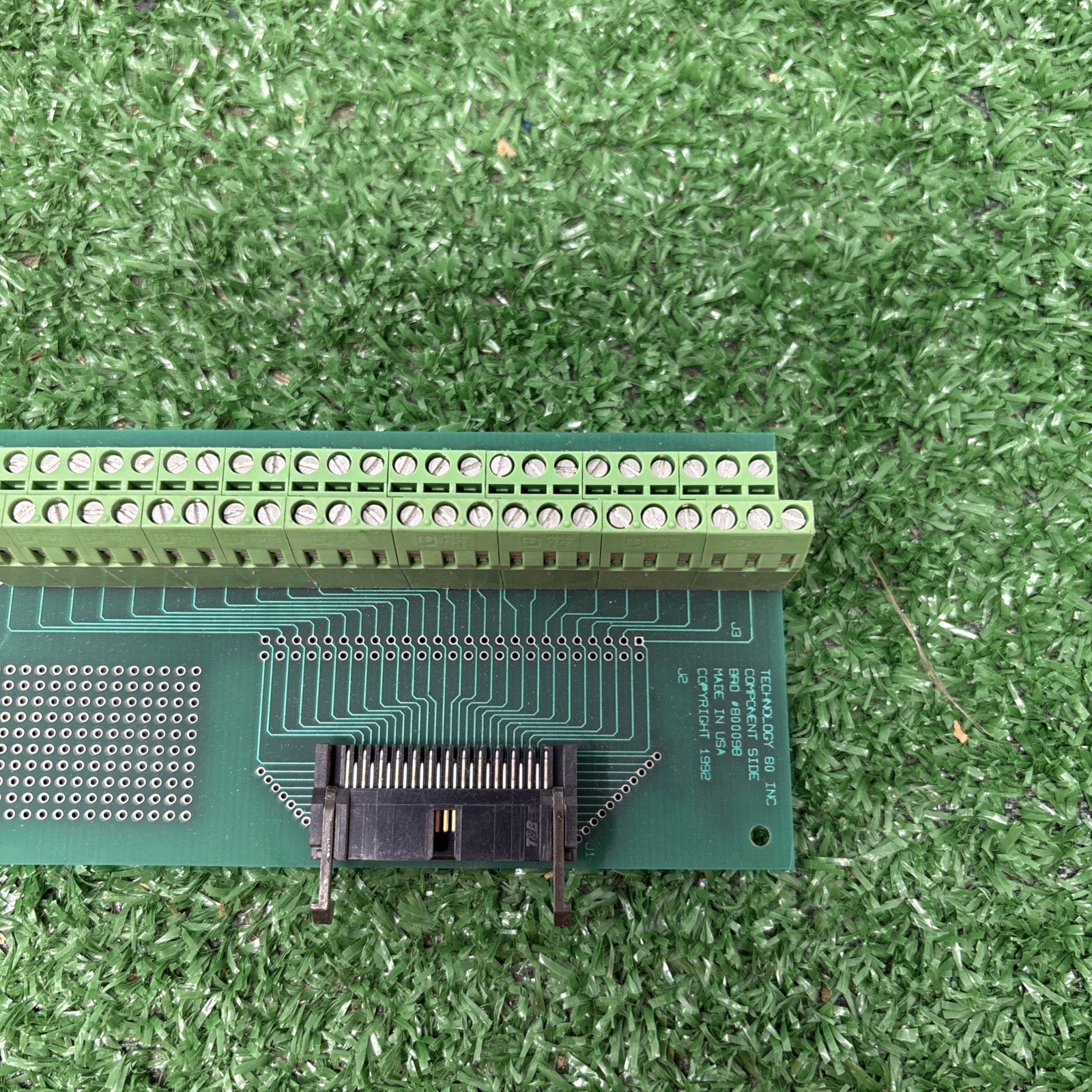

TECHNOLOGY 80 INC. TB50H-S Break Out Board, Part # 900889-A, 50 Pin
The TECHNOLOGY 80 INC. TB50H-S Break Out Board is a new open-box board made in the United States, and its 50-pin layout makes it the straightforward choice for breaking out connections in a control or test setup. At $35.00, it carries the lowest listed price in this comparison, so it is easy to keep as a standby part for a semiconductor PCB manufacturing bench. The trade-off is scope: a breakout board is a wiring aid, not a controller or a printer. If your process needs only a 50-pin interface to route signals, this board is the direct match.

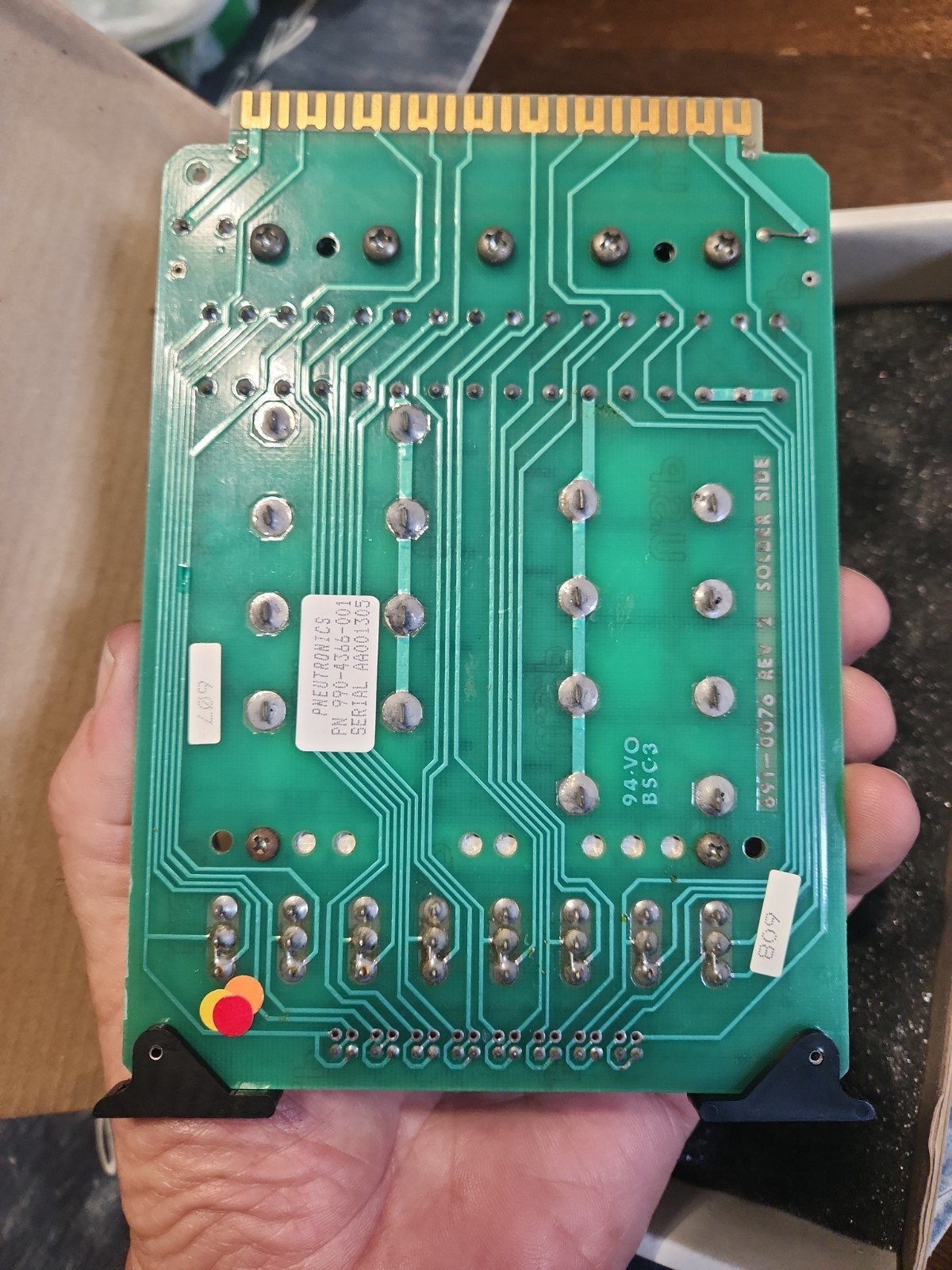

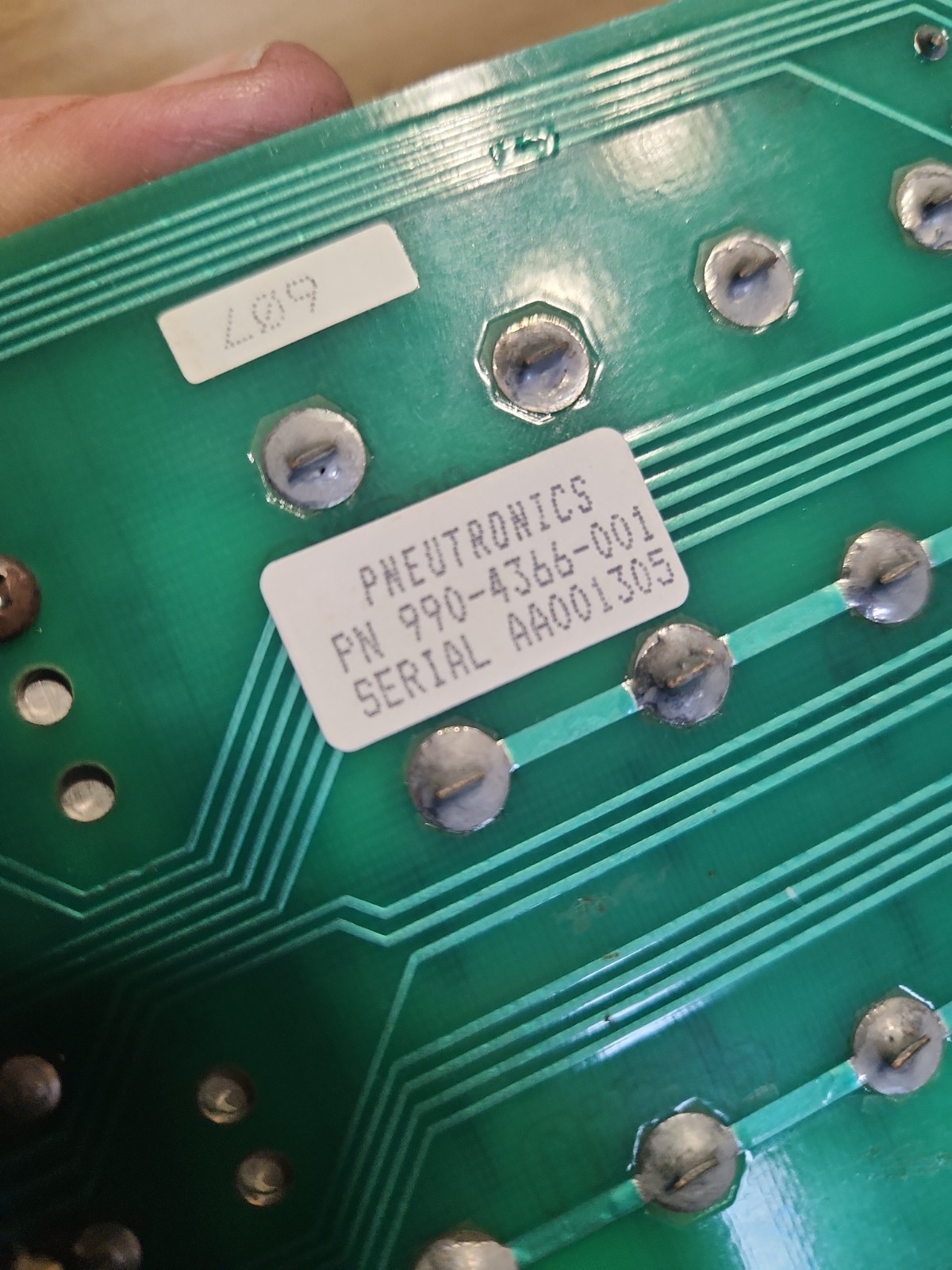

Pneutronics 990-004366-001 D17-D24 Source, Sink D9-D16 board.24v/ DC 100psi. NEW
The Pneutronics board targets a different job: source and sink control for D17-D24 and D9-D16 channels at 24V DC and 100 psi. At $279.95, you get a new open-box processor-type board with a unit quantity of one, which is useful when your system is built around Pneutronics part 990-004366-001. The limitation is specificity: the channel naming D17-D24 / D9-D16 has to line up with the rest of your equipment. This is not a general-purpose breakout board, so the purchasing decision is really about matching the exact Pneutronics part number.
PBC Board / Card 860802 For MCD Elektronik PCB Manufacturing Equipment
The PBC Board / Card 860802 is a used spare card labeled for MCD Elektronik PCB manufacturing equipment. At $37.49, it has the second-lowest listed price among the four items, but the buying decision comes down to the part number: 860802 is what you match against your machine. The trade-off is condition. Because the card is used, you are relying on the part number and the board state rather than new-box assurance. If your line already includes MCD Elektronik equipment and needs a replacement card, the price makes it a practical part to compare against your parts list.

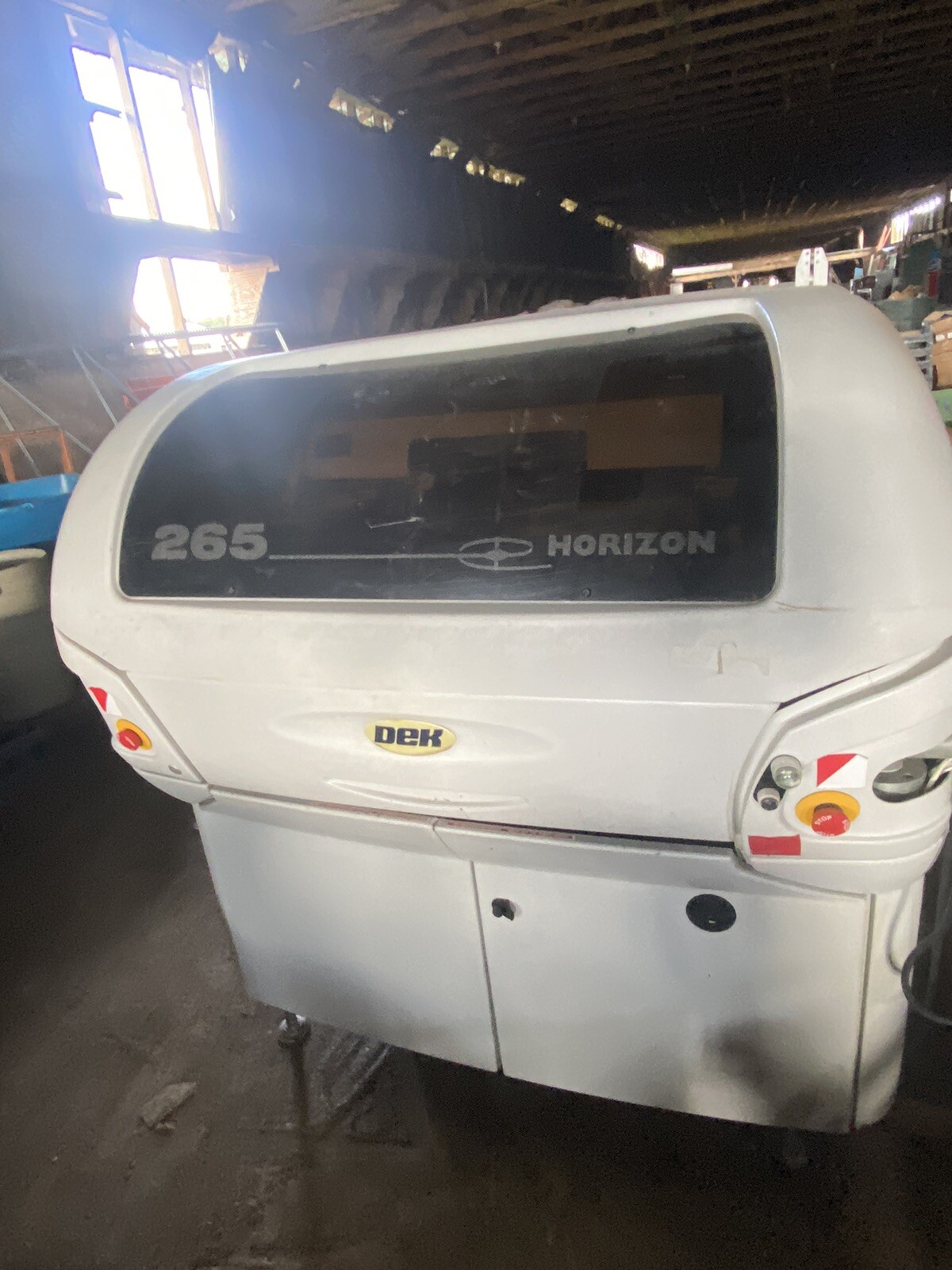

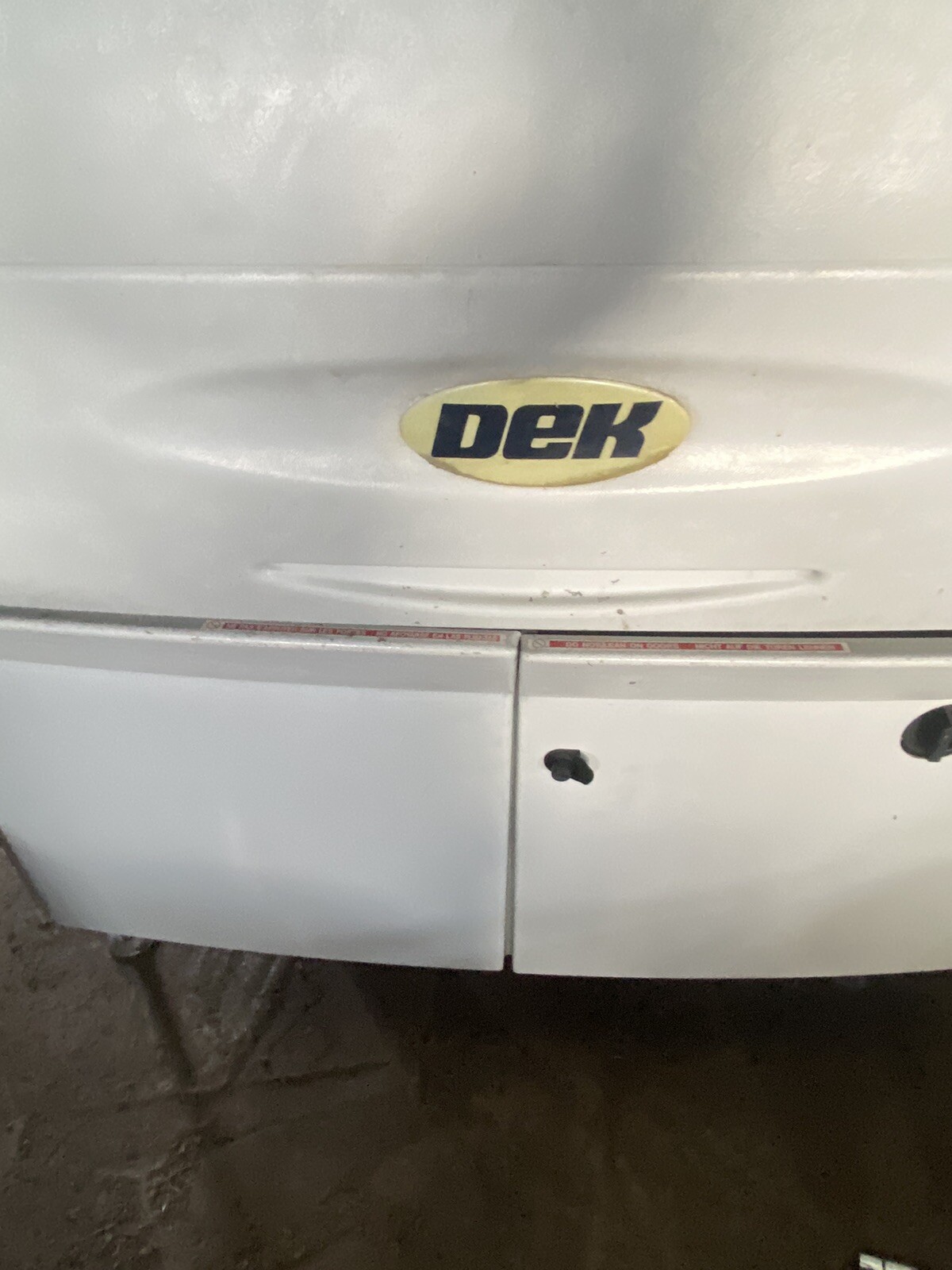

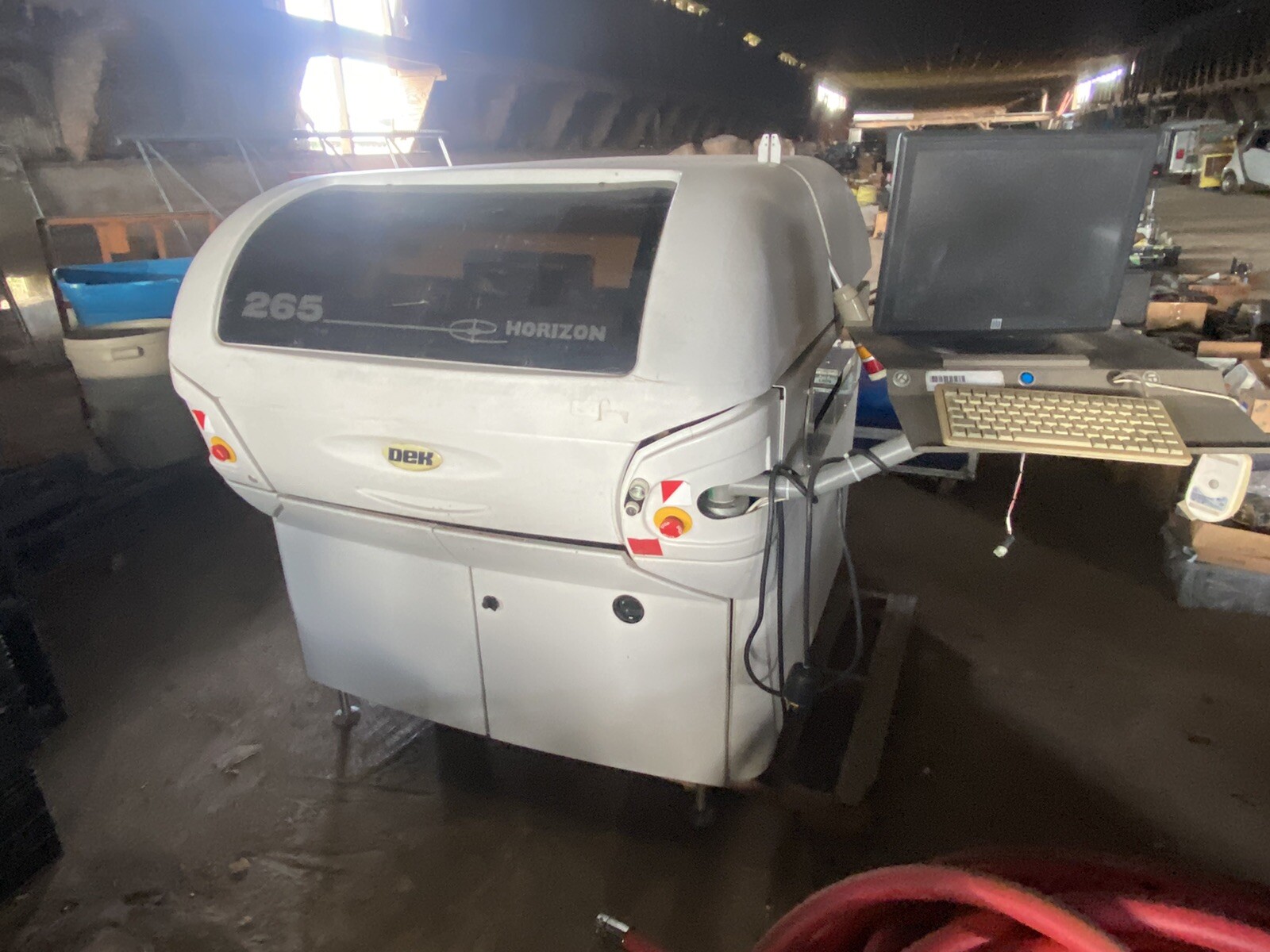

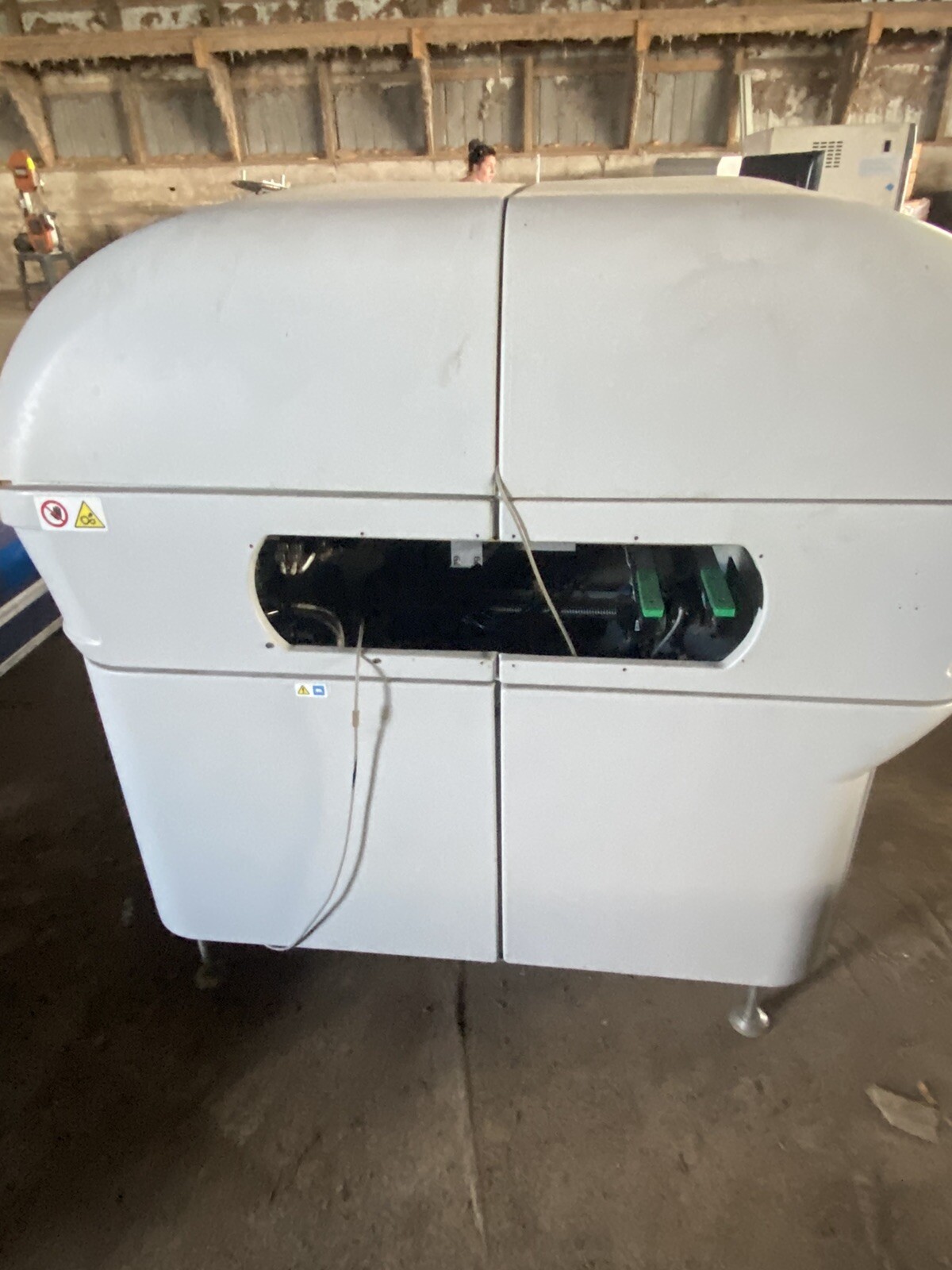

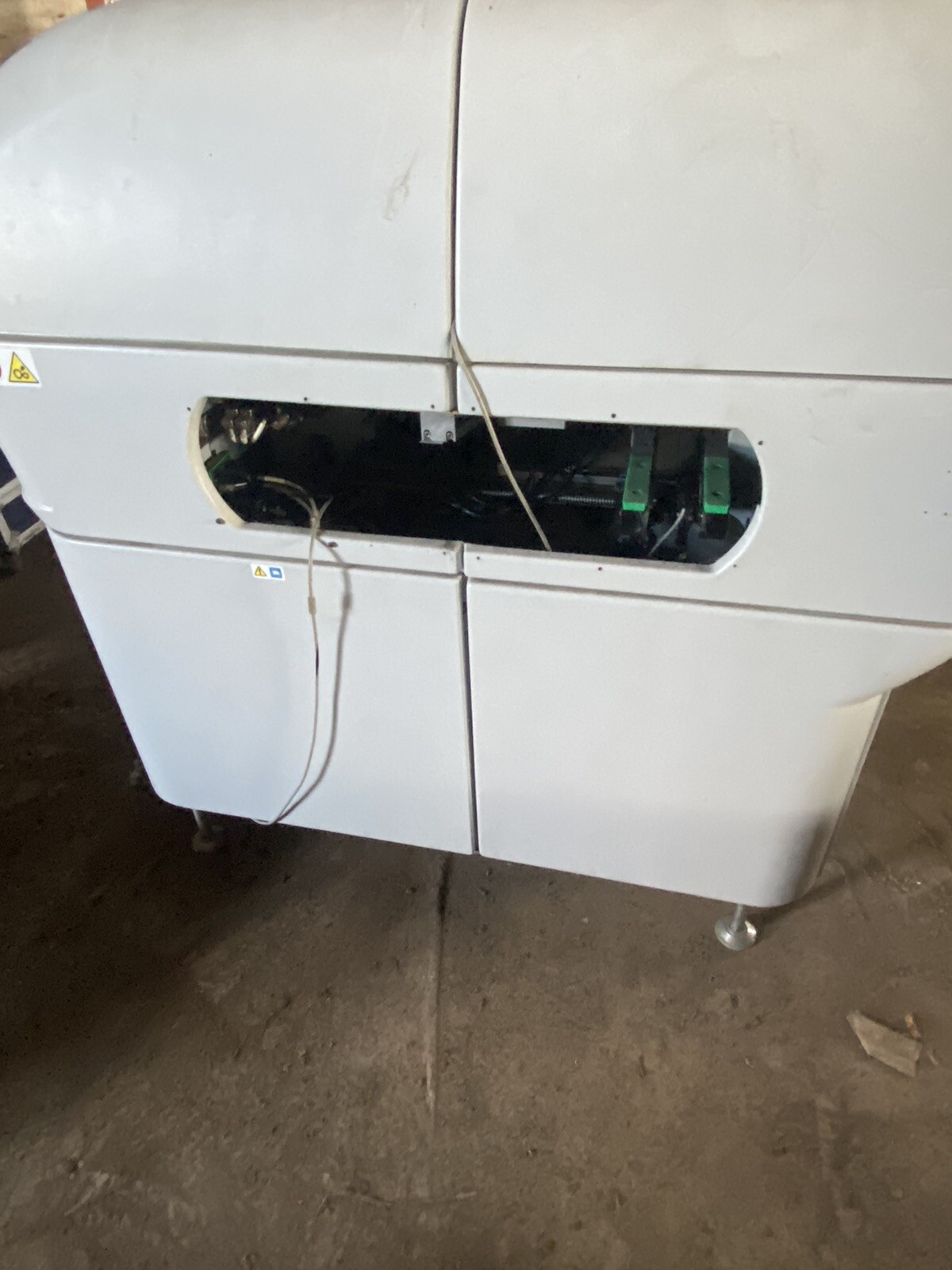

DEK 265 Horizon Stencil Printer Automatic PCB SMT Screen PC Board Solder Paste
The DEK 265 Horizon Stencil Printer is the full-machine option at $1,500.00. It is an automatic PCB SMT screen printer for applying solder paste, and the unit is identified as for parts or not working, with the print head removed and vacuum not present. That means the $1,500.00 price buys a machine that needs restoration before it can produce stencils. If you are rebuilding a DEK Horizon line, the 265 platform is the starting point to work from. The obvious limitation is condition: this is not a ready-to-run printer.
Final recommendation by use case
For pure signal-routing duty, the TECHNOLOGY 80 INC. TB50H-S is the direct match. For a Pneutronics processor board, the 990-004366-001 is the specific choice. For a used replacement card, the PBC Board / Card 860802 is the part to match. For a full machine restoration project, the DEK 265 Horizon is the restoration candidate.
