When you are outfitting a semiconductor PCB manufacturing line, the decision is less about finding available gear than about knowing which stage of your process is slowing you down. Do you need a machine to place surface-mount components, a board to source and sink control signals, a cable that can carry high voltage near radiation, or a fixture to test packaged devices? The four options here range from USD 279.95 to USD 1,600, so the right choice depends on your bottleneck rather than your budget alone.
Quick take
The Opulo LumenPnP is the only complete assembly machine in this group and the most expensive option. The Pneutronics board is the lowest-priced option and handles process control. The Varian cable covers high-voltage wiring, while the HP fixture supports semiconductor parameter testing with an external analyzer. Your choice should start with the process step you need to fill: assembly, control, cabling, or testing.
Listed price comparison
| Product | Listed price | Bar |
|---|---|---|
| Varian 929-0710 / 929-0712 H.V Radiation Resistant Cable | USD 399.99 | |
| Pneutronics 990-004366-001 D17-D24 Source, Sink D9-D16 board.24v/ DC 100psi. NEW | USD 279.95 | |
| Opulo LumenPnP v3.2.2 Desktop Pick and Place Machine SMT SMD OpenPNP | USD 1,600.00 | |
| HP Hewlett Packard 16058A Test Fixture 4145A 4145B Semiconductor Analyzer | USD 349.98 |
Decision matrix
| If your line needs... | The closest match |
|---|---|
| A desktop machine to place SMT/SMD components | Opulo LumenPnP v3.2.2 |
| A 24V DC / 100 psi controller board | Pneutronics 990-004366-001 |
| A radiation-resistant, bakeable high-voltage cable | Varian 929-0710 / 929-0712 |
| A test fixture for HP 4145A / 4145B analyzers | HP 16058A Test Fixture |
Product notes

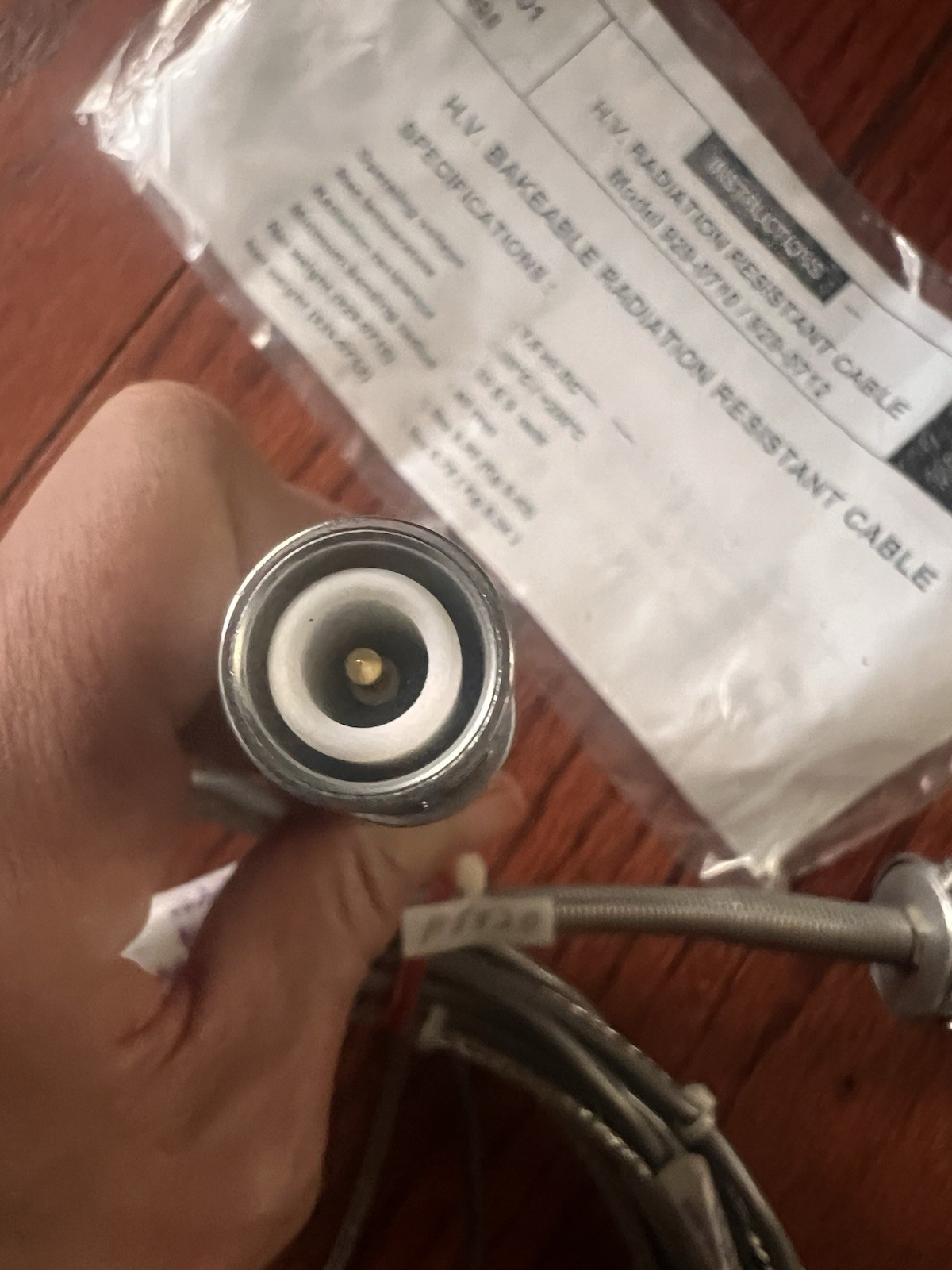

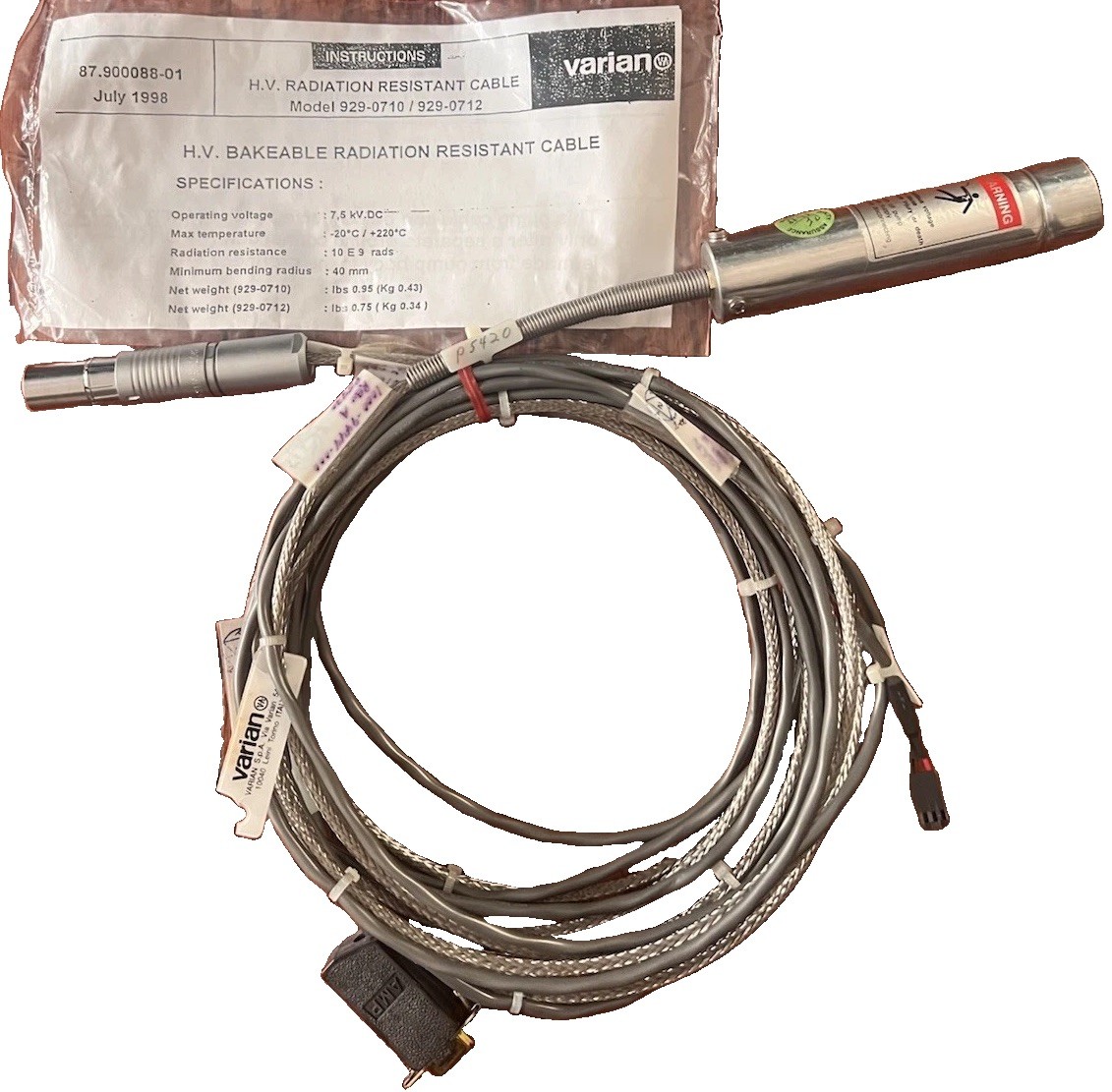

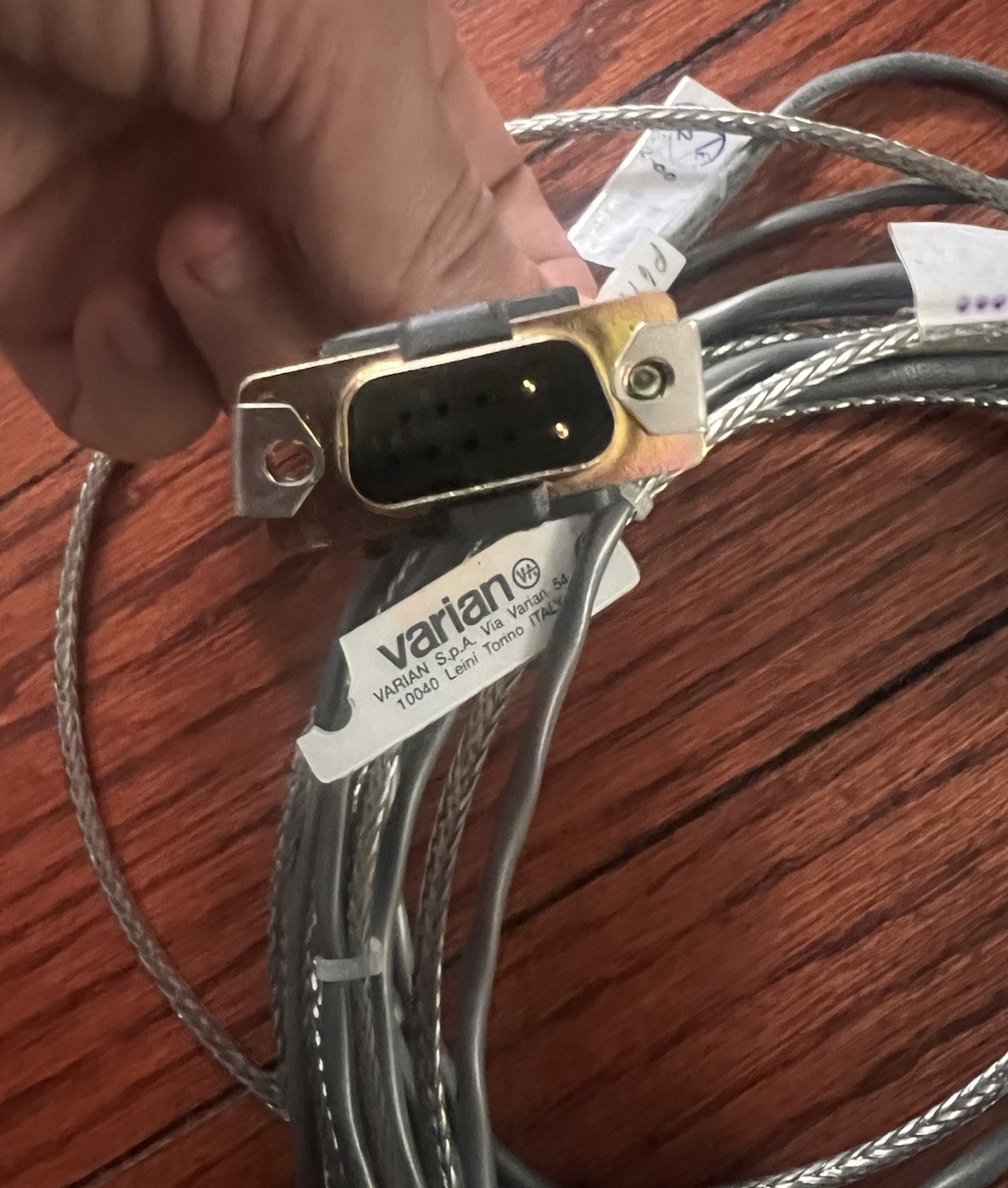

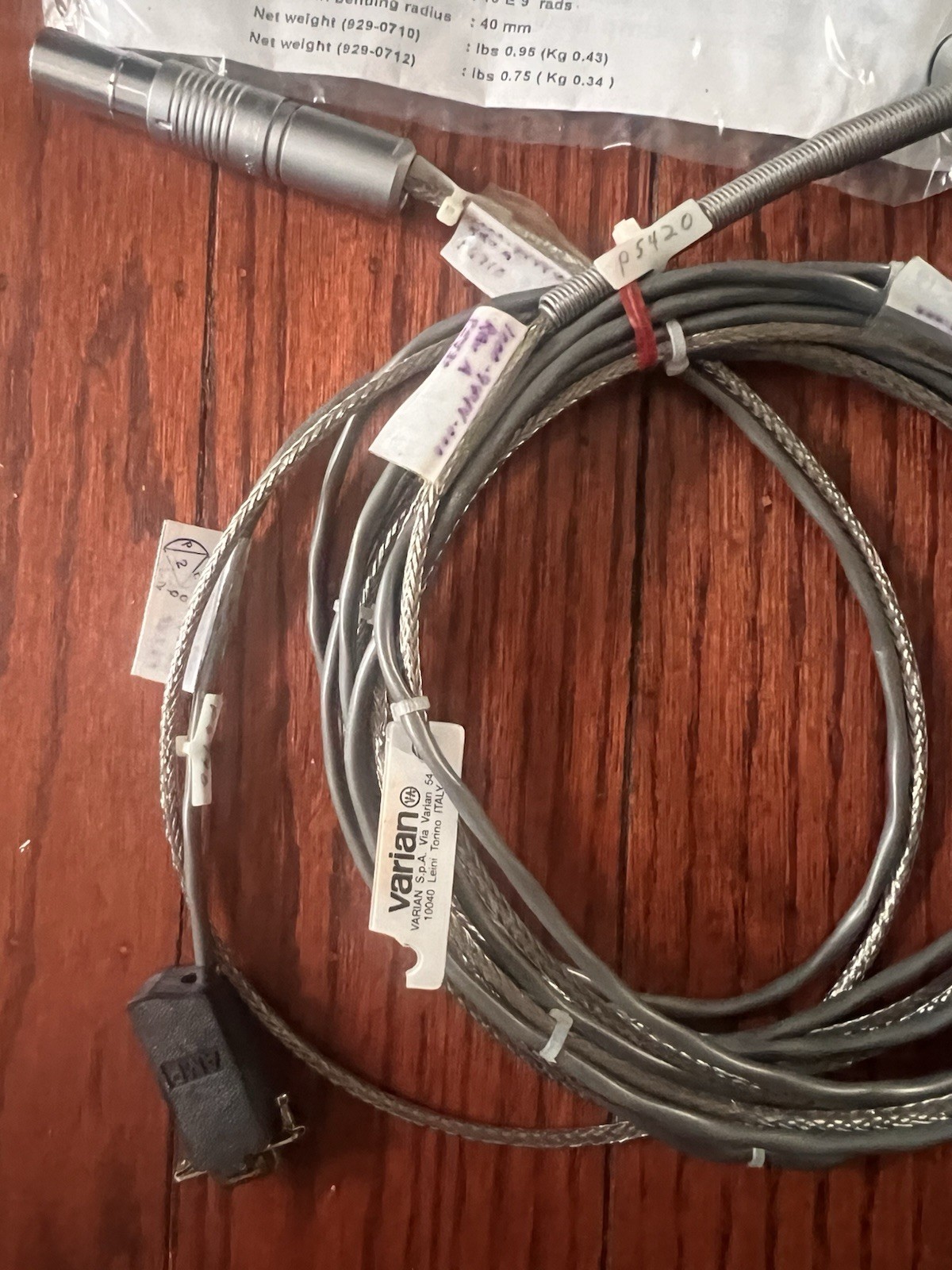

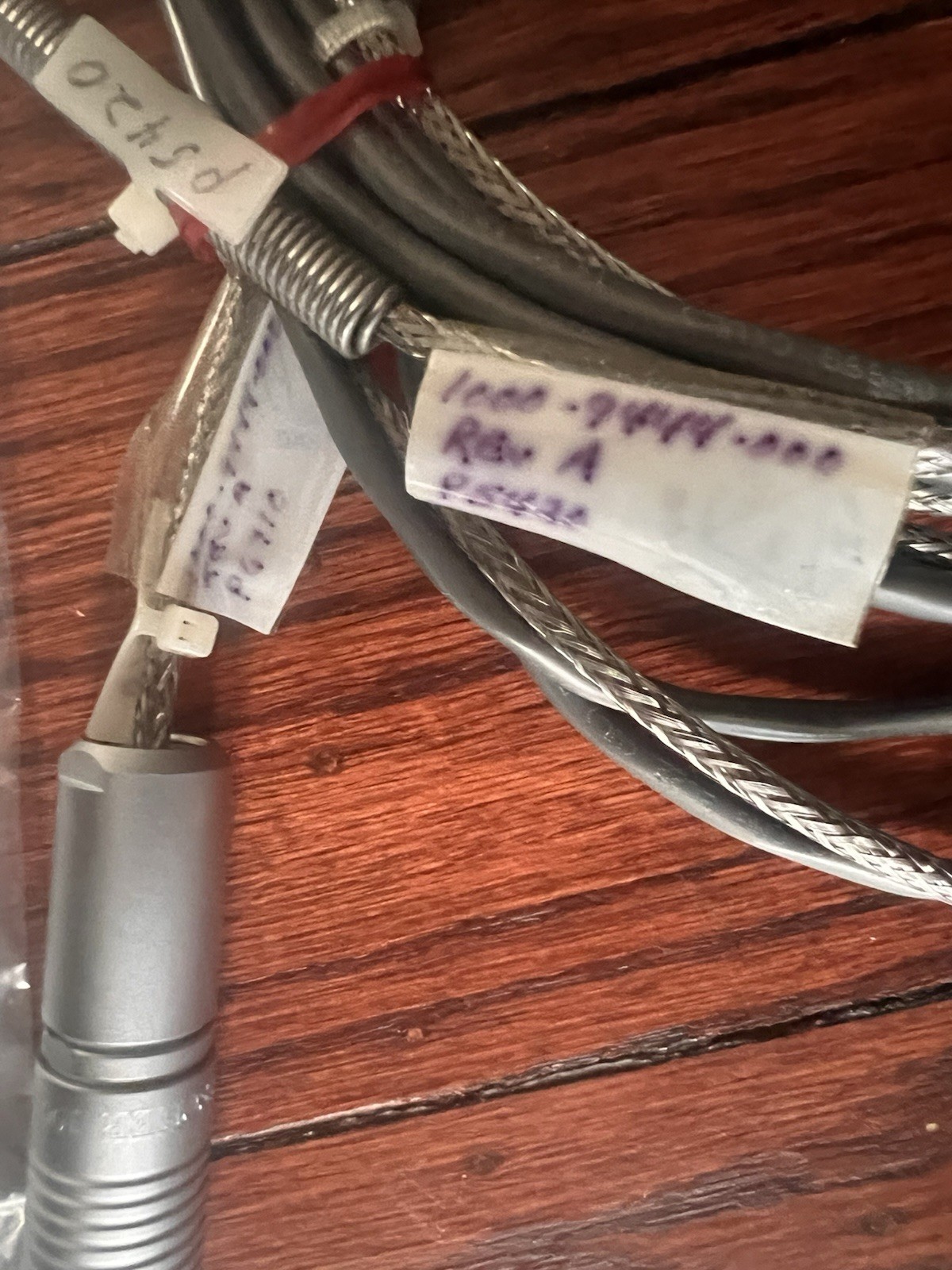

Varian 929-0710 / 929-0712 H.V Radiation Resistant Cable (7.5kV)
If your equipment has to carry high voltage in a radiation-heavy or bakeable environment, the Varian cable is built for that specific job. It is rated for 7.5 kV DC, shielded, bakeable, and radiation resistant. It is new surplus, never used, and includes original Varian packaging and an instruction sheet dated July 1998. The cable is made in Italy. The trade-off is that this is a dedicated high-voltage cable sold as shown, not a universal jumper; you need the matching connectors and layout for your equipment.
Pneutronics 990-004366-001 D17-D24 Source, Sink D9-D16 Board
For a control-signal upgrade inside semiconductor or PCB manufacturing tools, the Pneutronics 990-004366-001 is a board-level solution. It operates at 24V DC and 100 psi, and its model number identifies the D17-D24 source and D9-D16 sink configuration. It is new open-box and made in the United States. This is the lowest-priced item in the group, which gives it an easy place in a budget-conscious upgrade. The limitation is that you are buying one controller board, not a complete controller assembly, so integration with your existing system is part of the job.
Opulo LumenPnP v3.2.2 Desktop Pick and Place Machine
If you need to place surface-mount components rather than control, wire, or test them, the Opulo LumenPnP v3.2.2 is the complete machine in this group. It is a dual-head, semi-automatic desktop pick-and-place machine for SMT and SMD work with OpenPNP. The unit was assembled but never used; the seller later took it apart and put it back in the box. The condition details matter: the original tool bag is missing and the tools are present except for some zip ties, so you are starting with an opened kit. It is also a semi-automatic workflow, which suits a small-batch or prototyping assembly station rather than a fully automated production line.
HP Hewlett Packard 16058A Test Fixture for 4145A / 4145B
For semiconductor parameter testing, the HP 16058A provides a physical interface between an HP 4145A or 4145B analyzer and an 18-pin dual in-line package. The fixture includes SMU1 through SMU4 connections plus HIGH, LOW, EXT, and INT BIAS REMOTE labels. It is a used unit, and the sale includes the test fixture and internal socket assembly but not the HP 4145A/4145B analyzer. That separation matters, because you need the analyzer already in place for this fixture to be useful. It is a specialized laboratory accessory for parametric analysis, not a general-purpose test box.
Final recommendation by use case
- For a new assembly station, choose the Opulo LumenPnP v3.2.2; it is the option that physically places parts.
- For a source/sink control upgrade in existing manufacturing equipment, choose the Pneutronics 990-004366-001 at the low end of this price spread.
- For high-voltage wiring, choose the Varian 929-0710 / 929-0712.
- For parametric testing of 18-pin DIP devices, choose the HP 16058A fixture if your test station is built around an HP 4145A or 4145B analyzer.
Let the process bottleneck decide: assembly, control, cabling, or testing.
