If you assemble PCBs in-house, the pick-and-place stage is where speed and precision really matter. Manual machines give you hands-on control and a lower entry price; automatic machines take over the repetitive work but cost more. The four machines here span that trade-off, with listed prices from $530 to $4,000.
Quick Take
- NeoDen4 SMT Pick and Place Machine with 42 Feeders - $4,000, used, automatic, single head, includes 42 electric tape feeders.
- OpenPNP Pick and Place machine - PickSoEasy PSE-3000 - $2,658.57, new, fully automatic, compatible with OpenPNP V2, comes assembled and precalibrated.
- SMT Manual Pick and Place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20 - $531.71, new, manual, full kit with vacuum pump, USB microscope, and pedal switch.
- SMT - MANUAL pick and place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20 - $530.00, new, manual, similar kit with custom bundle option and country of origin Italy.
Listed Price Comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| NeoDen4 SMT Pick and Place Machine with 42 Feeders | USD 4,000.00 | |
| OpenPNP Pick and Place machine - PickSoEasy PSE-3000 | USD 2,658.57 | |
| SMT Manual Pick and Place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20 | USD 531.71 | |
| SMT - MANUAL pick and place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20 | USD 530.00 |
Decision Matrix
| Listing | Operation | Condition | Selected Details |
|---|---|---|---|
| NeoDen4 SMT Pick and Place Machine with 42 Feeders | Automatic | Used | Single head, 42 electric tape feeders (32×8mm, 6×12mm, 2×16mm, 2×24mm) |
| OpenPNP Pick and Place machine - PickSoEasy PSE-3000 | Fully automatic | New | OpenPNP V2 compatible, assembled and precalibrated, feeder rail for 12 electronic feeders (36 strips) plus 20 plastic racks |
| SMT Manual Pick and Place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20 | Manual | New | Full kit with vacuum pump, rotary pipe joint, USB microscope, pedal switch, electro-valve, assorted needles |
| SMT - MANUAL pick and place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20 | Manual | New | Full kit with same core equipment, custom bundle yes, country of origin Italy |
Product Notes
NeoDen4 SMT Pick and Place Machine with 42 Feeders
This used automatic machine is the most expensive of the four, but it comes with a strong feeder package: 42 electric tape feeders across 8mm, 12mm, 16mm, and 24mm sizes. That setup is useful if you need to handle a wide range of component sizes without constantly swapping reels. The single-head design and automatic operation make it a candidate for small production runs or in-house assembly. The main limitation is the condition: it is used, so you are buying a second-hand unit rather than something fresh out of the box. Its price also places it at the top of this group, which will matter if you are watching your startup budget.

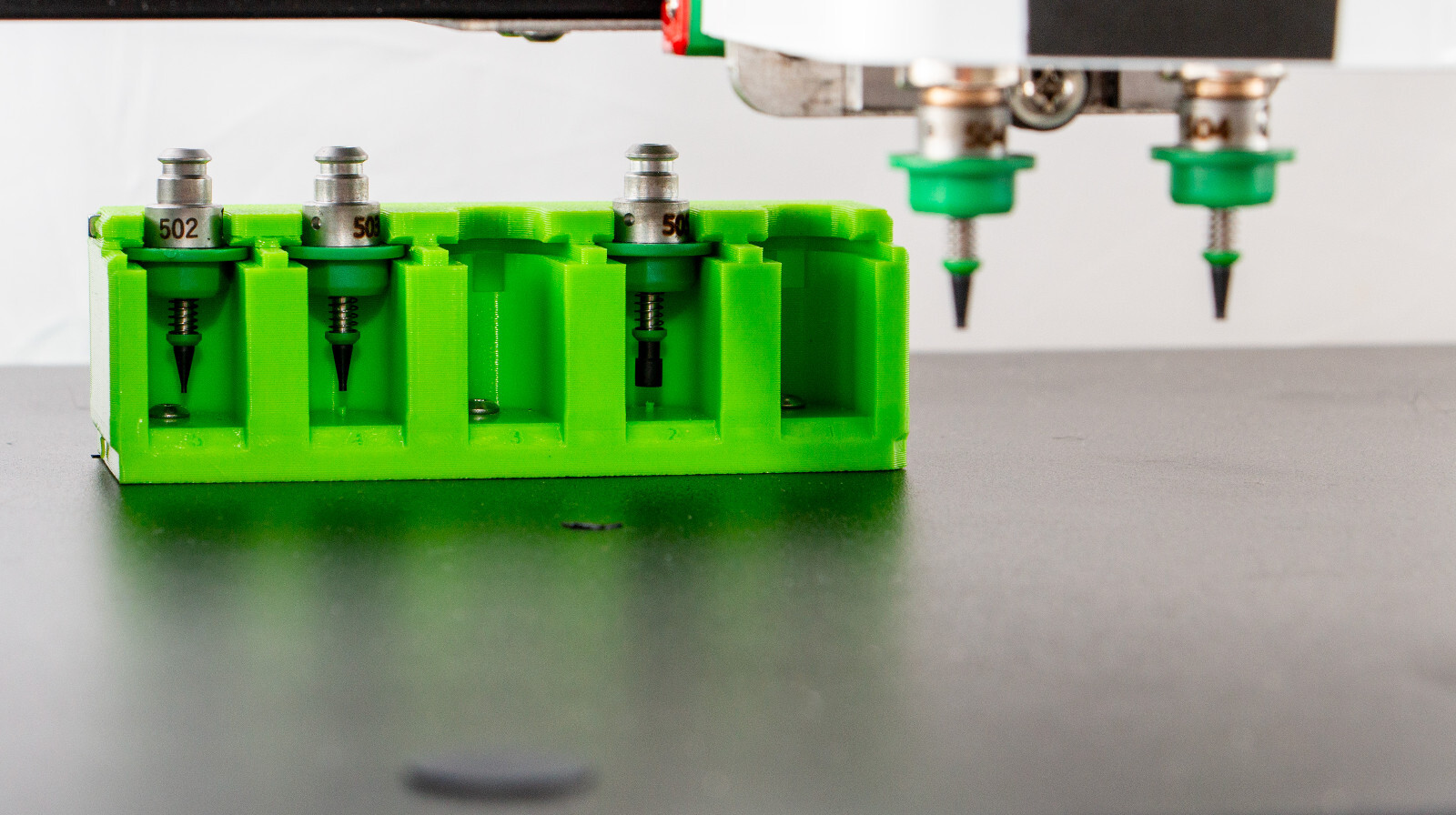

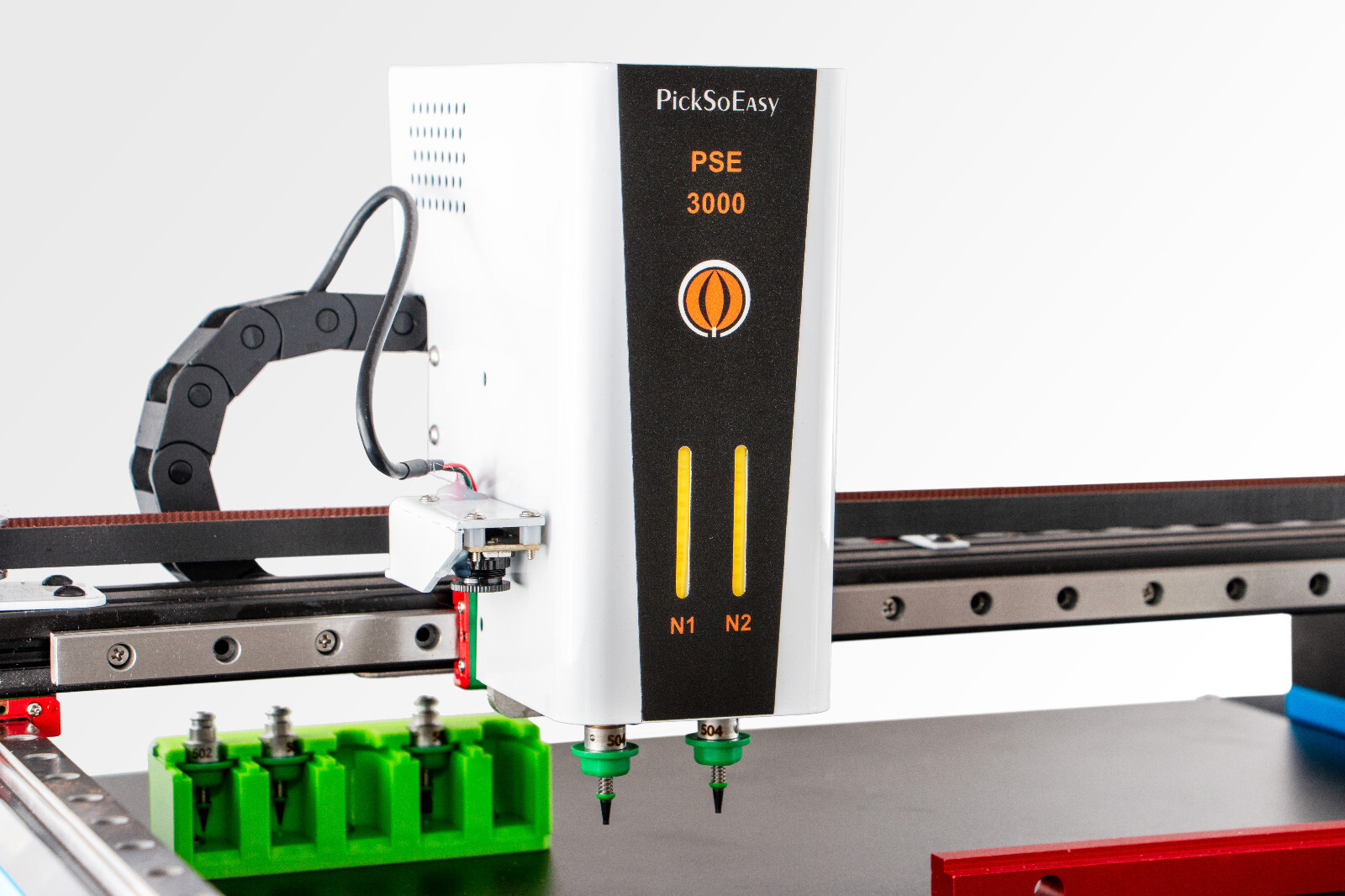

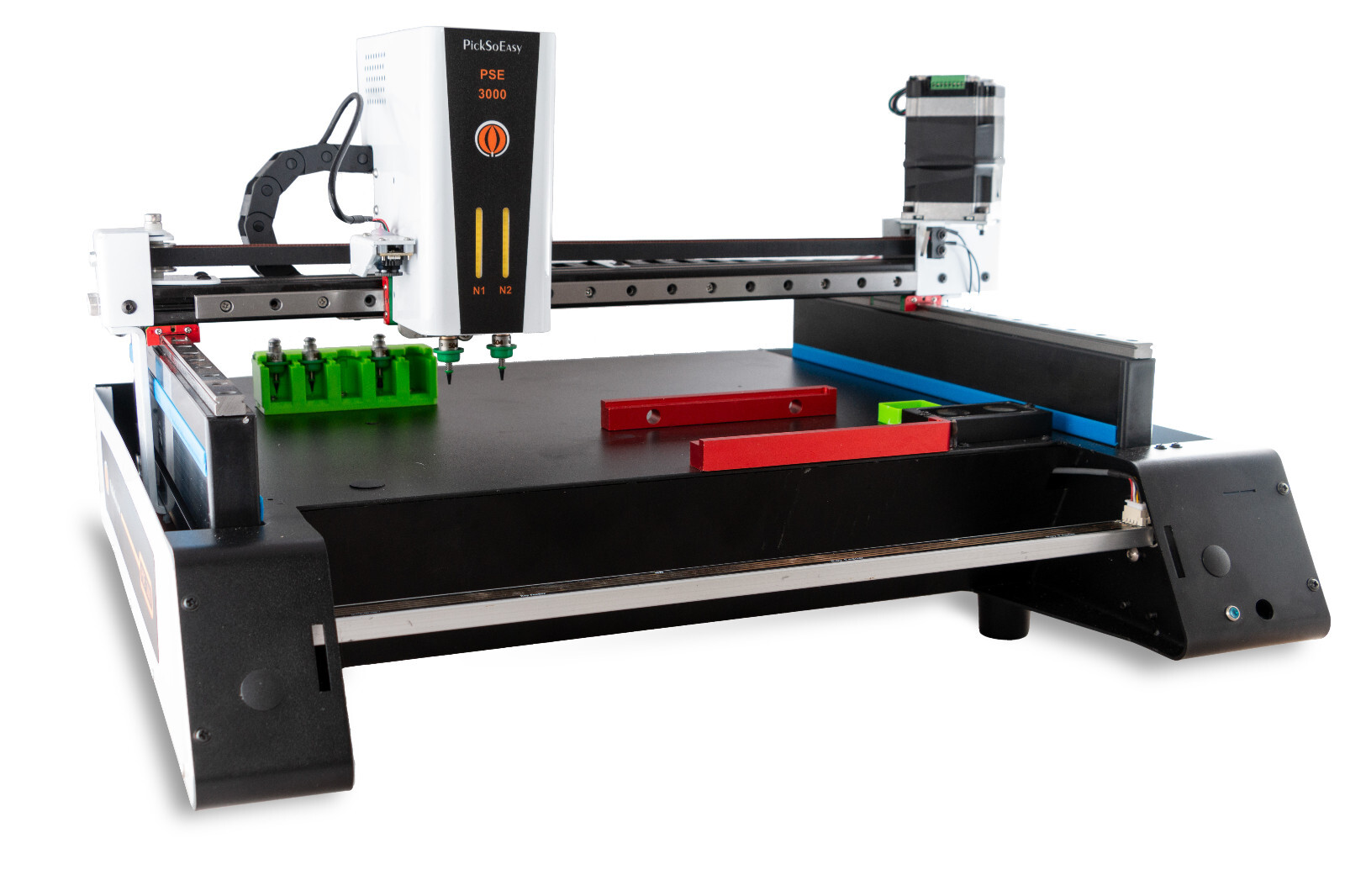

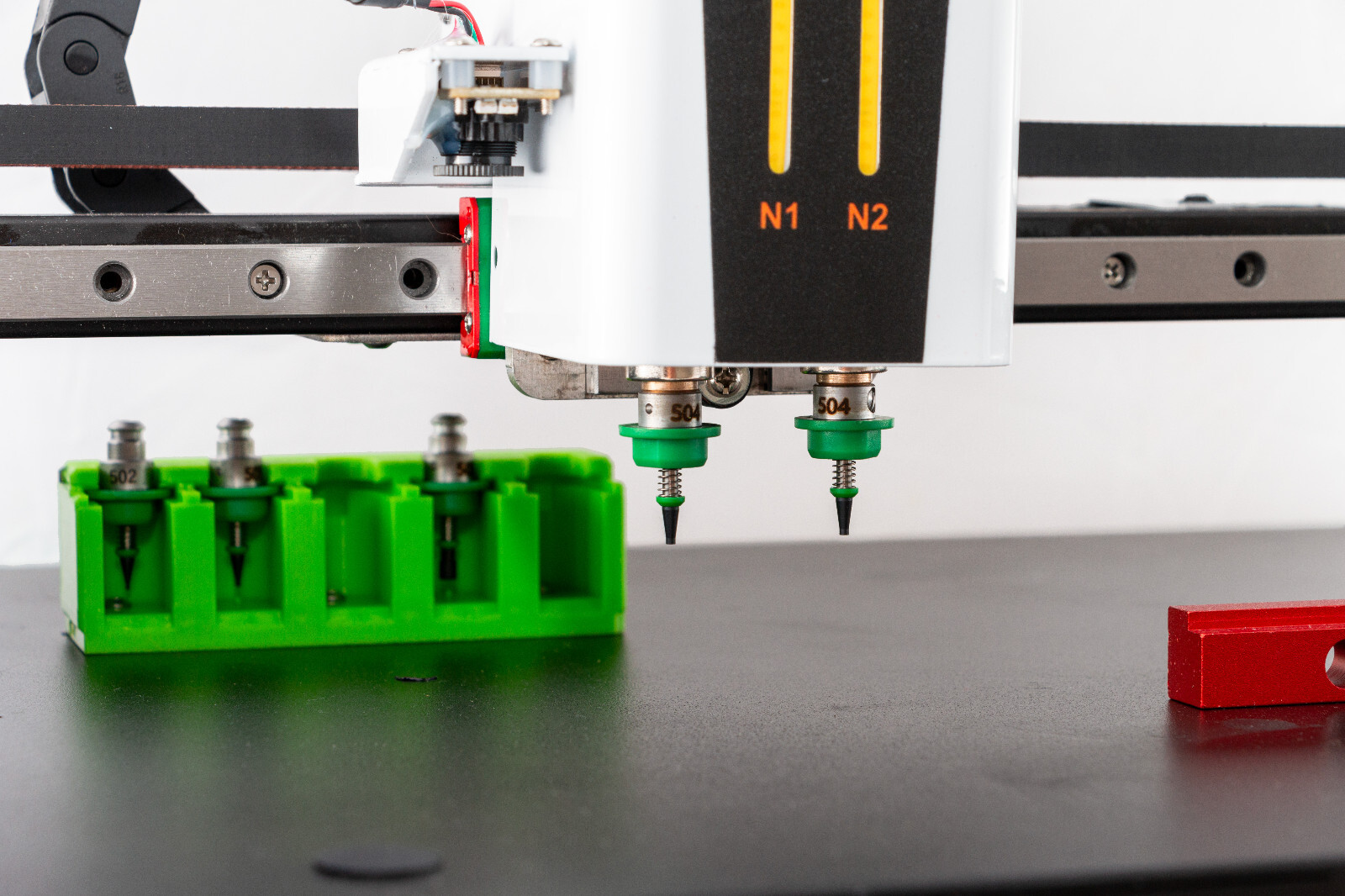

OpenPNP Pick and Place machine - PickSoEasy PSE-3000
If you want automatic placement without paying $4,000, this new PSE-3000 at $2,658.57 is the mid-price option. It arrives fully assembled and precalibrated, with its own calibration file, and it is described as compatible with the standard OpenPNP V2 software. The feeder rail accepts up to 12 electronic feeders, each handling 3 strips of components, for 36 strips total; you can also use 20 plastic racks with magnets. That gives you a lot of component capacity in a compact automatic machine. On the downside, it costs significantly more than the manual PSE-20 kits, and you will need to rely on OpenPNP software for your setup and programming.
SMT Manual Pick and Place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20
This new manual kit at $531.71 is the second lowest priced option, just $1.71 above the other PSE-20 listing. It includes a vacuum pump, rotary pipe joint, USB microscope, pedal switch, electro-valve, pipes, and assorted suction needles. The machine arrives as a full kit that you assemble and calibrate yourself, with guidance videos available. The manual operation means you control the placement by hand, which can work well for prototypes and low-volume boards. The trade-off is speed and repeatability: you are doing the moving and steadying yourself, so it will not keep pace with an automatic feeder line.
SMT - MANUAL pick and place machine with 1 USB MICROSCOPE - PickSoEasy PSE-20
At $530.00, this is the lowest listed price in the group. It is another new manual PickSoEasy PSE-20 kit with the same core equipment: vacuum pump, USB microscope, pedal switch, electro-valve, assorted needles, and a green A2 PAD. It is a custom bundle with country of origin Italy. If you are looking for the smallest upfront investment in a manual pick-and-place setup, this is the one to watch. The same limitations apply as with the other PSE-20: manual placement demands practice, and you need to assemble and calibrate the kit before use. It is also very close in price to the $531.71 option, so the deciding factor may come down to bundle details and configuration.
Final Recommendation by Use Case
- For automatic placement with the most feeder capacity: the NeoDen4 with 42 feeders is the high-ticket choice if you are comfortable buying used and want to handle many component sizes.
- For automatic placement with a new machine and OpenPNP compatibility: the PickSoEasy PSE-3000 offers a lower price than the NeoDen4 while still giving you an assembled, precalibrated automatic unit.
- For manual, budget-oriented PCB assembly: either PickSoEasy PSE-20 kit works, and the $530.00 option is the cheapest entry point in this comparison. Choose between them based on bundle details and configuration.
No matter which way you go, match the machine to the volume of boards you actually build. Manual machines keep your costs down but your hands busy; automatic machines cost more and take the repetition out of the job.
